KLIPPON K79 VMQ RAL7001

KLIPPON K79 VMQ RAL7001

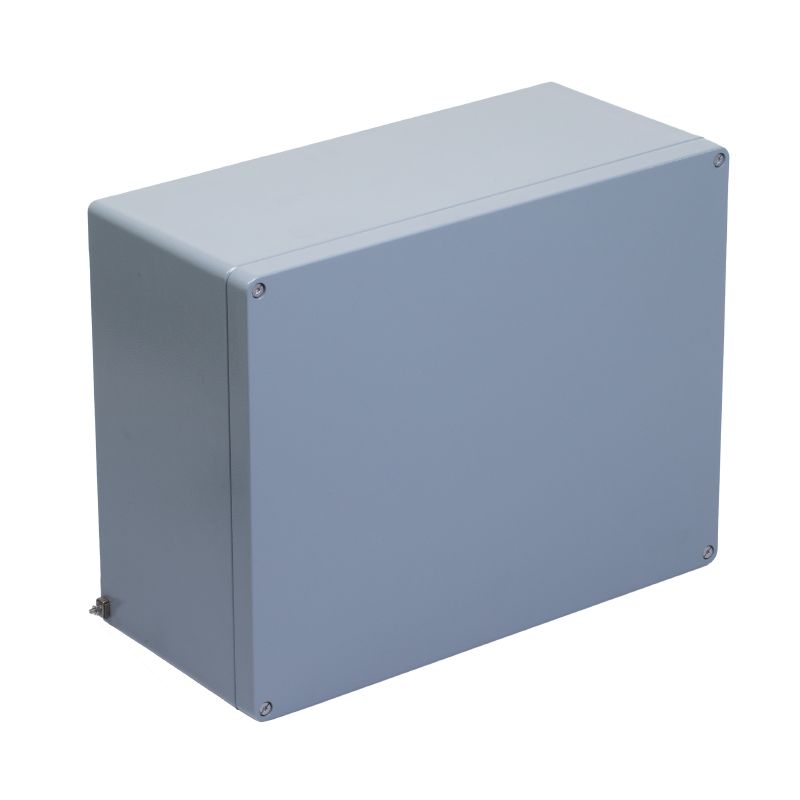

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 313 mm, Width: 404 mm, Depth: 181 mm, Basic material: Aluminium AlSi12, Powder-coated, Silver grey

Item No. 2934240000
Download data sheet Engineering Support Product Downloads
Accessories 9 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Certificate numbers enclosure General information Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 313 mm, Width: 404 mm, Depth: 181 mm, Basic material: Aluminium AlSi12, Powder-coated, Silver grey
Código
2934240000
Tipo
KLIPPON K79 VMQ RAL7001
GTIN (EAN)
4099986682474
Qty.
1 items

Dimensions and weights

Profundidad
181 mm
Depth (inches)
7,126 inch
Altura
313 mm
Height (inches)
12,323 inch
Anchura
404 mm
Width (inches)
15,905 inch
Medida de fijación, altura
262 mm
Mounting dimension - width
384 mm
벽 두께, 최소
5 mm
壁厚、最大
5 mm
Net weight
7.350 g

Temperatures

Operating temperature
-50 °C...135 °C
작동 온도 범위
-50...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Certificate numbers enclosure

Deklaracja zgodność nr. (DoC LVD)
DE PS2410 160412 001ISS03
Условия утверждения
cULus

General information

-50 °C
Access opening: height
303 mm
Access opening: width
394 mm
Areas of use
Process industry
Transportation
Marine engineering
Packaging industry
Harbour facilities
Machine construction
Basic material
Aluminium AlSi12
Enclosure attachment
Holes 6 mm
Impact resistance
10 J version standard
Installation advice
Wall mounting
Integral fixing
Threaded holes M5
Lid
Yes
Lid attachment
M6 torx stainless steel screws with slot
Material thickness
5 mm
Material thickness of cover
5 mm
Material thickness of enclosure
5 mm
Number of lid screws
4
Operating temperature, max.
135 °C
Protection class (UL)
Type 4
Type 4X
Protection degree
IP66
IP67
IP68
Seal material
Silicone
Seal material of cover
Silicone
Silicone
Yes
Standards
DIN EN 45545-2
Surface finish
Powder-coated
Torque for lid screws
2,5 Nm

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
