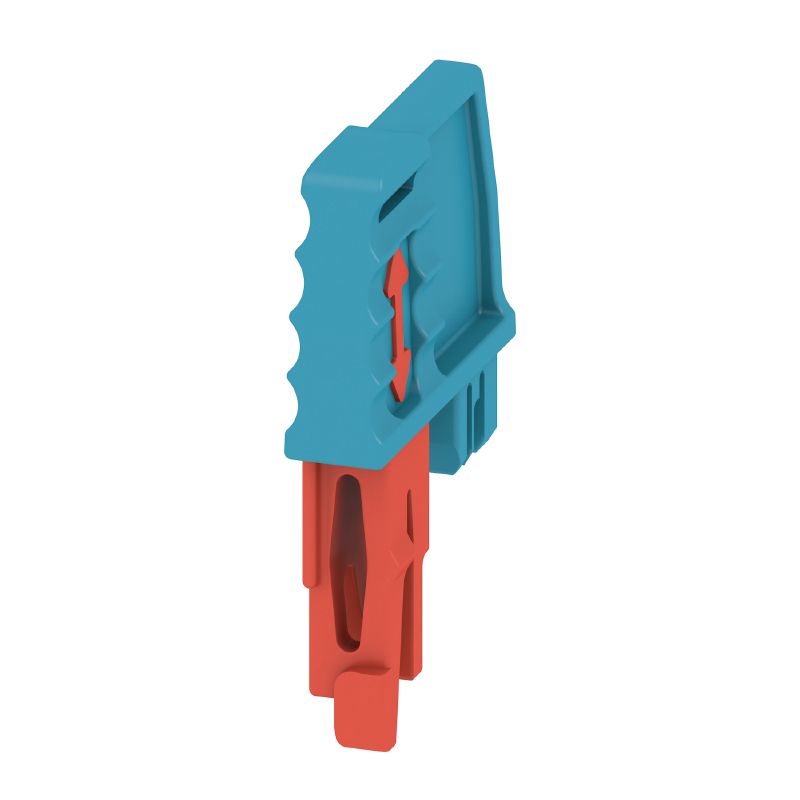

잠금 레버 (단자대)

Item No. 2710380000
Download data sheet Engineering Support Product Downloads
Is accessory of 21 Related products 50
Approvals 일반 주문 데이터 Dimensions et poids 온도 Conformità ambientale del prodotto Material data Classifications

Approvals

ROHS
Conform

일반 주문 데이터

Version
잠금 레버 (단자대)
Order No.
2710380000
Type
LL TTB 6/2 CM BL
GTIN (EAN)
4064675012603
Qty.
50 items

Dimensions et poids

Depth
25,2 mm
Depth (inches)
0,992 inch
Height
4,2 mm
Bygghöjd (tum)
0,165 inch
Width
15,9 mm
Width (inches)
0,626 inch
Net weight
0,8 g

온도

Storage temperature
-25 °C...55 °C
Température ambiante
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Conformità ambientale del prodotto

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

Material data

Werkstoff
Wemid
Colour
blue
UL 94 flammability rating
V-0

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
