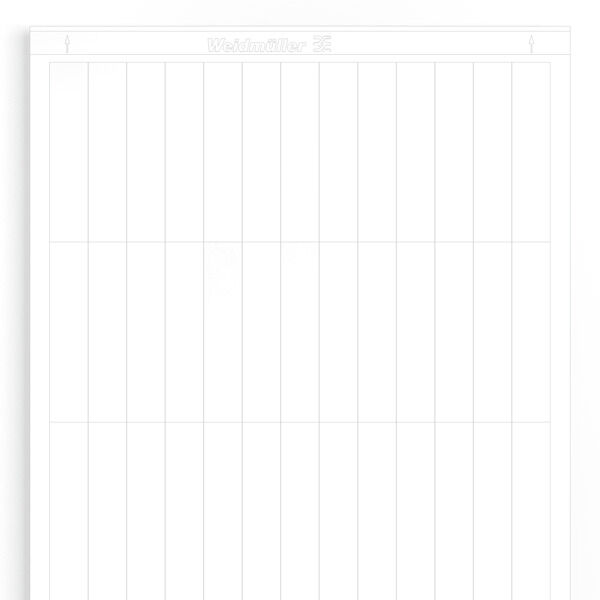

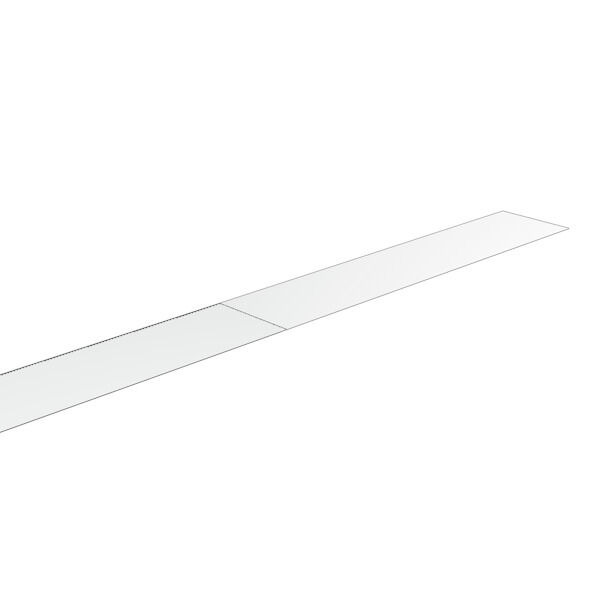

LaserMark, Conductor and cable markers, 16.2 - 36.4 mm, 15 x 140 mm, white

Produkt ID 1773880000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dane ogólne Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
LaserMark, Conductor and cable markers, 16.2 - 36.4 mm, 15 x 140 mm, white
Order No.
1773880000
Type
LM WO 15/140 WS
GTIN (EAN)
4032248144501
Qty.
10 Styk

Dimensions and weights

Depth
0,025 mm
Depth (inches)
0,001 inch
Height
15 mm
Height (inches)
0,591 inch
Width
140 mm
Width (inches)
5,512 inch
Net weight
10,2 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dane ogólne

Adhesive
Akrylat
Ausführung
самоклеящийся
Basic material
Polyesterfilm
Breite
140 mm
Brennbarkeitsklasse nach UL 94
V-0
Colour
white
Dimensioni del campo di siglatura
15 x 70 mm
Einsatztemperaturbereich, max.
150 °C
Gama de temperaturas de servicio
-40...150 °C
Halogen
No
Jelölők száma kombinációnként
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    26
Material colour according to resistance code
9
Number of markers per packaging unit
260
Number per sheet
26
Operating temperature range, min.
-40 °C
Printed characters
without
Typ tisku
neutral
콤비네이션당 마커 개수
1 Label sheet = 26 Conductor and cable markers

Conductor and cable markers

Conductor cross-section, max.
150 mm²
Conductor cross-section, min.
70 mm²
Conductor O.D.
16.2 - 36.4 mm
Conductor O.D., max.
36,4 mm
Conductor O.D., min.
16,2 mm
Cross-section for connected wire
70 - 150 mm²
Halogen
No
Text field height
70 mm
Text field width
14,98 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
