Properties

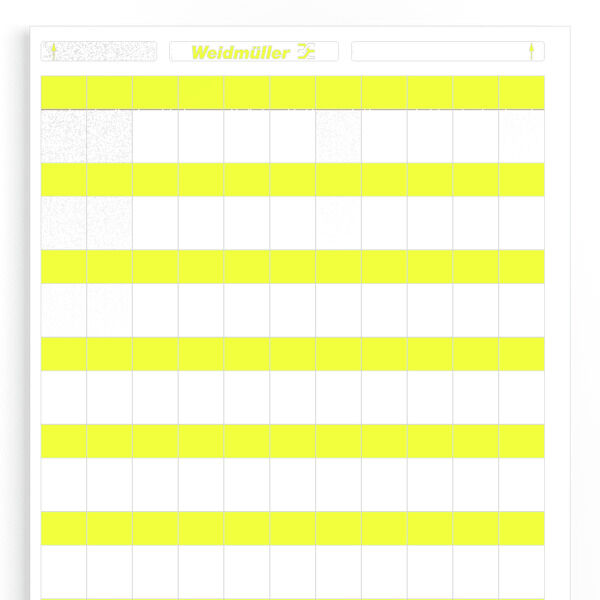

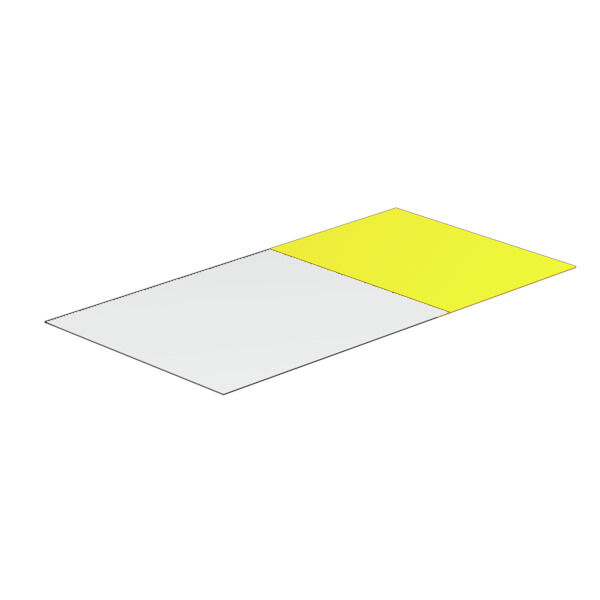

| Version | LaserMark, Conductor and cable markers, 5 - 7 mm, 18 x 34 mm, yellow |
| Order No. | 1695711687 |
| Type | LM WO 18/34 GE |
| GTIN (EAN) | 4008190924669 |
| Qty. | 10 items |
| Depth | 0.025 mm |
| Depth (inches) | 0.001 inch |
| Height | 18 mm |
| Height (inches) | 0.709 inch |
| Width | 34 mm |
| Width (inches) | 1.339 inch |
| Net weight | 9.2 g |
| Operating temperature range | -40...150 °C |
| REACH SVHC | / |
| Adhesive | Acrylate |
| Colour | yellow |
| Halogen | No |
| Material | Polyester film |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 Label sheet = 88 Conductor and cable markers |
| Number of markers per packaging unit | 880 |
| Number of markers per packaging unit |
|
| Number per sheet | 88 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 18 x 12.7 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 34 mm |
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 6 mm² |
| Conductor O.D. | 5 - 7 mm |
| Conductor O.D., max. | 7 mm |
| Conductor O.D., min. | 5 mm |
| Cross-section for connected wire | 6 - 16 mm² |
| Halogen | No |
| Text field height | 13 mm |
| Text field width | 17.8 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62878) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1695711687) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1695711687) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1695711687&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
