Properties

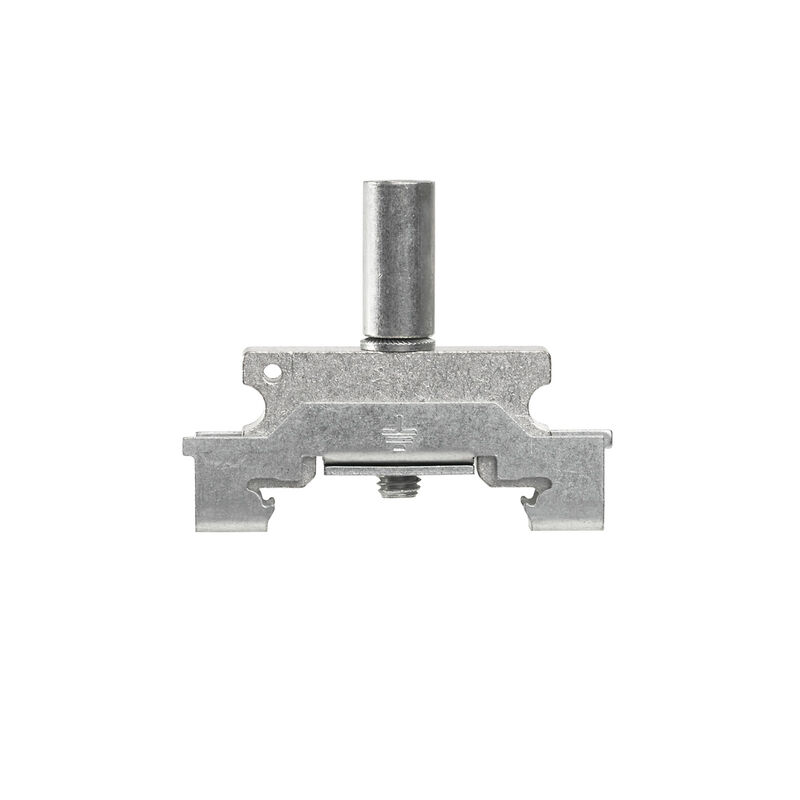

| Version | End bracket, metal, grey, Rail: TS 35, when screwed in |
| Order No. | 1805610000 |
| Type | MEW 35/1 |
| GTIN (EAN) | 4032248287017 |
| Qty. | 10 items |
| Depth | 44.5 mm |
| Depth (inches) | 1.752 inch |
| Height | 56.2 mm |
| Height (inches) | 2.213 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Net weight | 65.2 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | metal |
| Colour | grey |
| Version | For the terminals |
| Rail | TS 35 |
| Installation advice | Direct mounting |
| Interlock | for screw fixing |
| Type of mounting | when screwed in |
| TS 35 offset | 28.1 mm |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63969) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1805610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1805610000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1805610000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ROHS | Conform |
