MF 5/4.2 MM WS
MF 5/4.2 MM WS

MF 5/4.2 MM WS

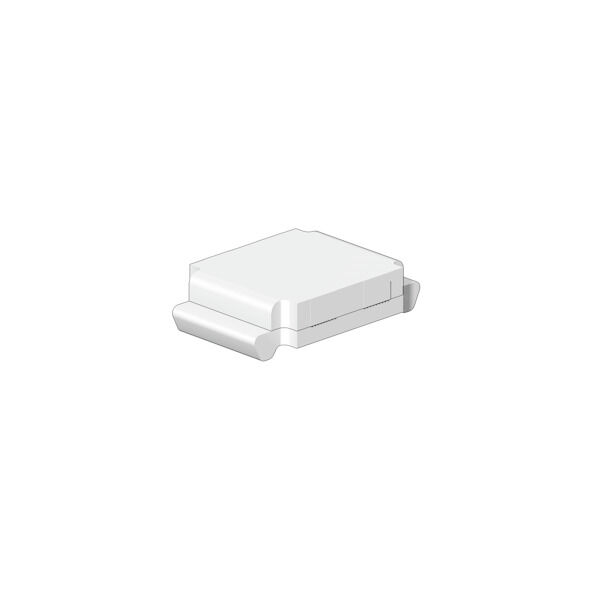

Terminal marker, 5 x 4.2 mm, Pitch in mm (P): 4.20 white

Item No. 2885910000
Download data sheet Engineering Support Product Downloads
Accessories 3 Related products 31
Approvals General ordering data Dimensions and weights Temperatury Environmental Product Compliance General data Connector markers Klassifikationen

Approvals

ROHS
Conform

General ordering data

Versione
Terminal marker, 5 x 4.2 mm, Pitch in mm (P): 4.20 white
N. d’ordine
2885910000
Type
MF 5/4.2 MM WS
GTIN (EAN)
4064675854517
Förp.
1.500 Штука

Dimensions and weights

깊이
0,7 mm
Depth (inches)
0,028 inch
Height
5 mm
Height (inches)
0,197 inch
너비
4,2 mm
Width (inches)
0,165 inch
Net weight
0,049 g

Temperatury

Operating temperature range
-50...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PC-ABS
TPU
Brännbarhetsklass enligt UL 94
V-2
Colour
white
Operating temperature range
-50...90 °C
Operating temperature range, max.
90 °C
Operating temperature range, min.
-50 °C
Printed characters
neutral
Wykonanie
halogen-free
Ширина
4,2 mm

Connector markers

Шаг в мм (P)
4,2 mm

Klassifikationen

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
