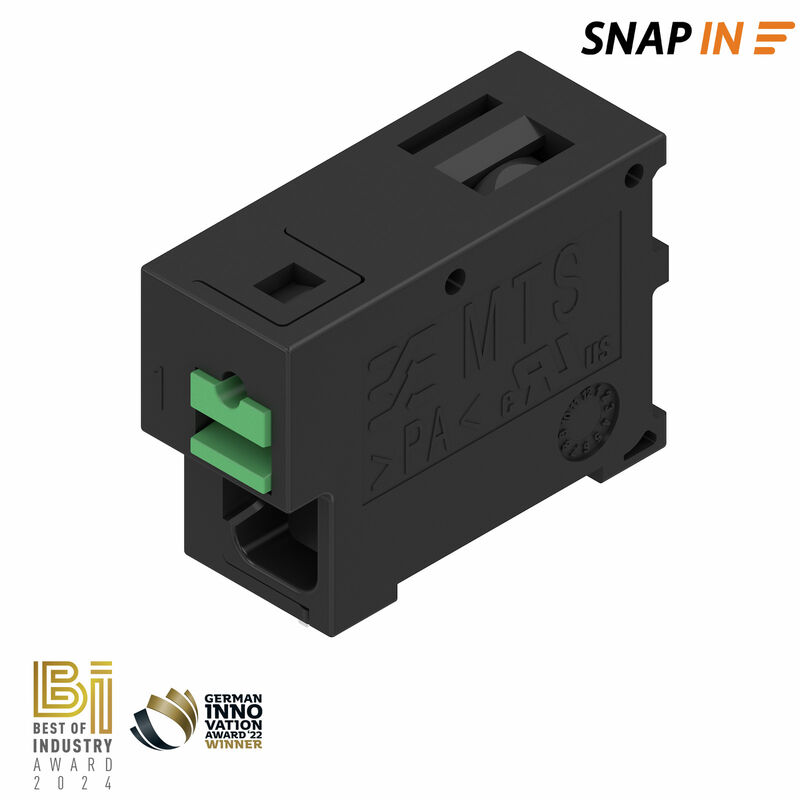

MTS 5/01 H T4 B T
Product image

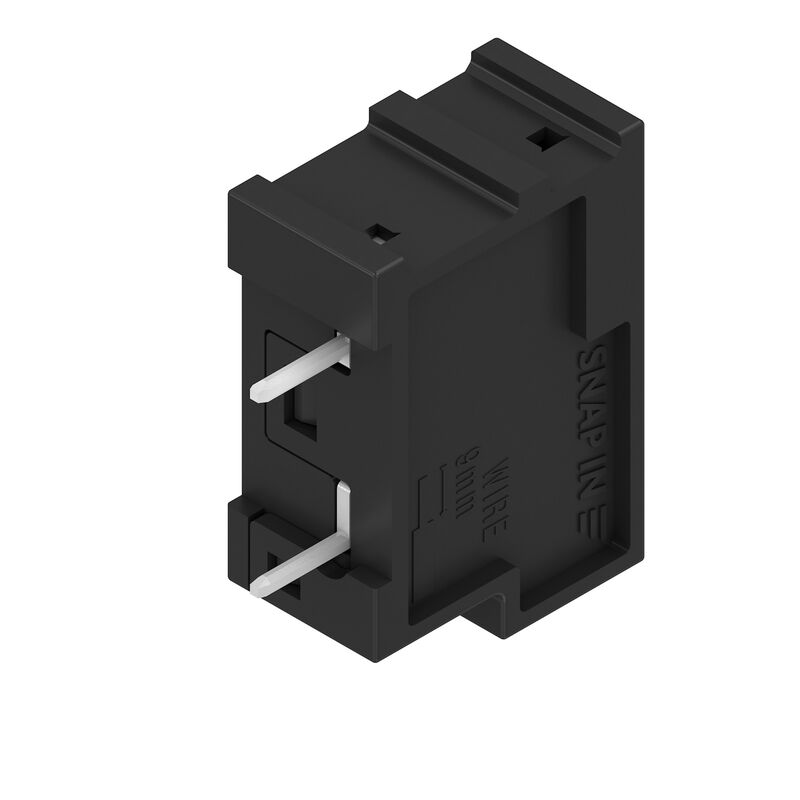

MTS 5/01 H T4 B T
Product image
MTS 5/01 H T4 B T
MTS 5/01 H T4 B T
MTS 5/01 H T4 B T
MTS 5/01 H T4 B T

MTS 5/01 H T4 B T

Printed circuit board terminals, PCB terminal, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 1, Tube

Product ID 3096000000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 2 Verwante producten 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Номинальные характеристики по IEC Rated data acc. to CSA Rated data acc. to UL 1059 Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Printed circuit board terminals, PCB terminal, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 1, Tube
Order No.
3096000000
Type
MTS 5/01 H T4 B T
GTIN (EAN)
4099987119504
Qty.
72 items
Product data
IEC: 400 V / 32 A / 0.5 - 4 mm²
UL: 300 V / 20 A / AWG 20 - AWG 12
Packaging
Tube

Dimensions and weights

Depth
18,85 mm
Depth (inches)
0,742 inch
Height
16,7 mm
Height (inches)
0,657 inch
Height of lowest version
13,2 mm
Width
7,3 mm
Width (inches)
0,287 inch
Net weight
2 g

Temperatures

Ambient temperature
-50 °C…125 °C
Installation temperature
-25 °C to +125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE 4.0
Wire connection method
SNAP IN with push button
Property, clamping point
WireReady
Mounting onto the PCB
THT/THR solder connection
Conductor outlet direction
90°
Paso en mm (P)
5 mm
Paso en pulgadas (P)
0,197 "
Número de polos
1
Número de filas de polos
1
Number of rows
1
Solder pin length (l)
3,5 mm
Solder pin dimensions
0.6 x 0.8 mm
Solder eyelet hole diameter (D)
1,3 mm
Tolerancia de diámetro de la perforación (D)
+ 0,1 mm
Number of solder pins per pole
2
Stripping length
9 mm
Stripping length tolerance
  • min.:
    8 mm
  • max.:
    10 mm
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Material data

Insulating material
PA 9T
Colour
black
Colour of operational elements
green
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
Moisture Level (MSL)
1
Grado inflamabilidad según UL 94
V-0
Contact material
Cu-alloy
Superficie de contacto
tinned
Tinning type
matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
125 °C

Conductors suitable for connection

Clamping range, min.
0,34 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,34 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Diámetro exterior de aislamiento, máx.
4 mm

Номинальные характеристики по IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
32 A
Rated current, max. number of poles (Tu=20°C)
32 A
Rated current, min. number of poles (Tu=40°C)
32 A
Rated current, max. number of poles (Tu=40°C)
32 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
400 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Rated data acc. to CSA

Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Rated voltage (Use group F / UL 1059)
420 V
Rated current (Use group B / UL 1059)
20 A
Intensidad nominal (Use Group D / UL 1059)
10 A
Sección de conexión del conductor AWG, mín.
AWG 20
Wire cross-section, AWG, max.
AWG 12
Clearance distance, min.
4 mm
Creepage distance, min.
5,6 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • During transport, it may rarely occur that the clamping points are already closed. The products remain fully functional. To reactivate the SNAP IN function, please press the activation button.
  • When using a 1-pole PCB terminal block, it must be supported in the application.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
