PB-CON IKSC M4X8 A2

PB-CON IKSC M4X8 A2

PCB plug-in connector, Mounting screw

Ürün No. 2708610000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
General ordering data Dimensions and weights Environmental Product Compliance Material data Rated data acc. to IEC Packing Important note Product images Classifications Approvals

General ordering data

Version
PCB plug-in connector, Mounting screw
Order No.
2708610000
Type
PB-CON IKSC M4X8 A2
GTIN (EAN)
4050118775464
Qty.
40  adet
Product data


Dimensions and weights

Net weight
1,56  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Insulating material
Steel
Contact material
Cu-alloy
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
100  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

VPE length
80  mm
VPE width
43  mm
VPE height
17  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

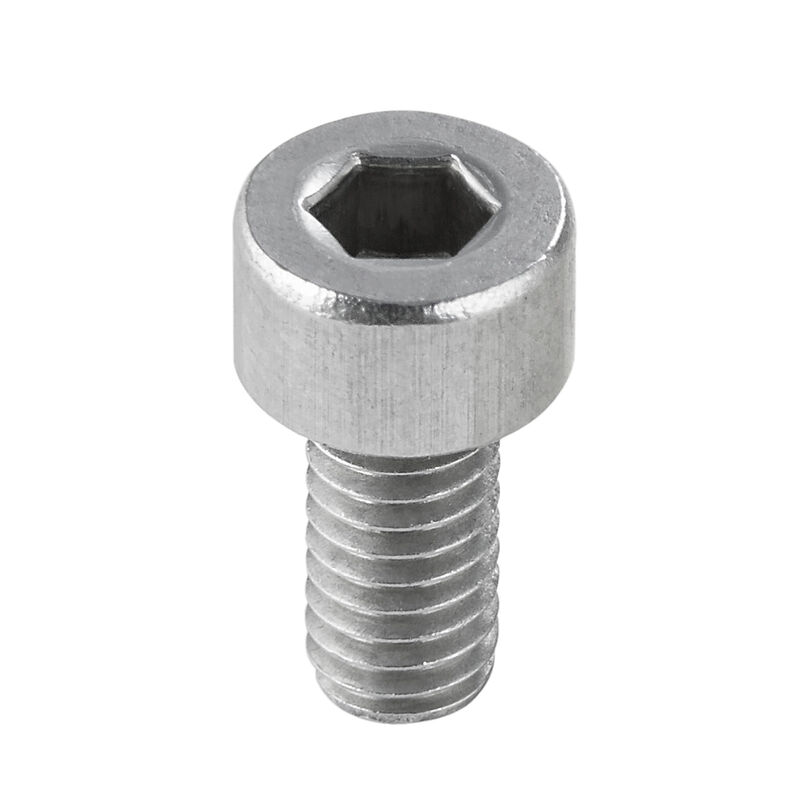

Product images

Classifications

ETIM 6.0
EC000887
ETIM 7.0
EC000887
ETIM 8.0
EC003861
ETIM 9.0
EC003861
ETIM 10.0
EC003861
ECLASS 9.0
23-11-01-90
ECLASS 9.1
23-11-01-90
ECLASS 10.0
23-11-01-90
ECLASS 11.0
23-11-01-90
ECLASS 12.0
23-11-01-90
ECLASS 13.0
23-11-01-90
ECLASS 14.0
23-11-01-90
ECLASS 15.0
23-11-01-90

Approvals

ROHS
Conform
