PB-CON SF DELTA PT 40X12

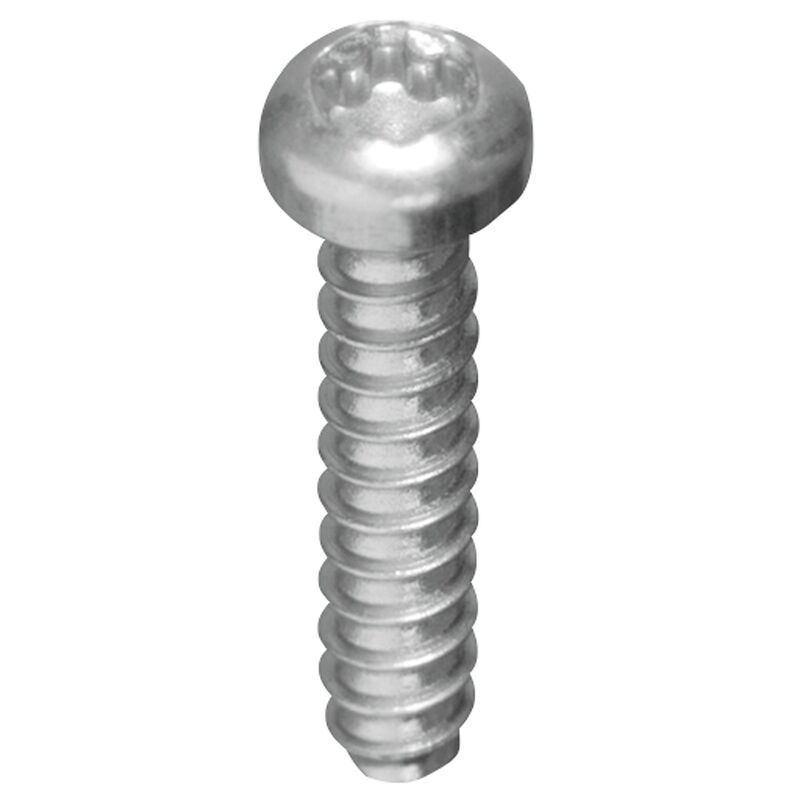

Product image

PB-CON SF DELTA PT 40X12

PCB plug-in connector, Mounting screw

Ürün No. 2708620000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Material data Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Mounting screw
Order No.
2708620000
Type
PB-CON SF DELTA PT 40X12
GTIN (EAN)
4050118771015
Qty.
40  adet
Product data


Dimensions and weights

Net weight
1,425  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Insulating material
Steel
Contact material
Cu-alloy
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
100  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

VPE length
70  mm
VPE width
42  mm
VPE height
12  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC000887
ETIM 7.0
EC000887
ETIM 8.0
EC003861
ETIM 9.0
EC003861
ETIM 10.0
EC003861
ECLASS 9.0
23-11-01-90
ECLASS 9.1
23-11-01-90
ECLASS 10.0
23-11-01-90
ECLASS 11.0
23-11-01-90
ECLASS 12.0
23-11-01-90
ECLASS 13.0
23-11-01-90
ECLASS 14.0
23-11-01-90
ECLASS 15.0
23-11-01-90
