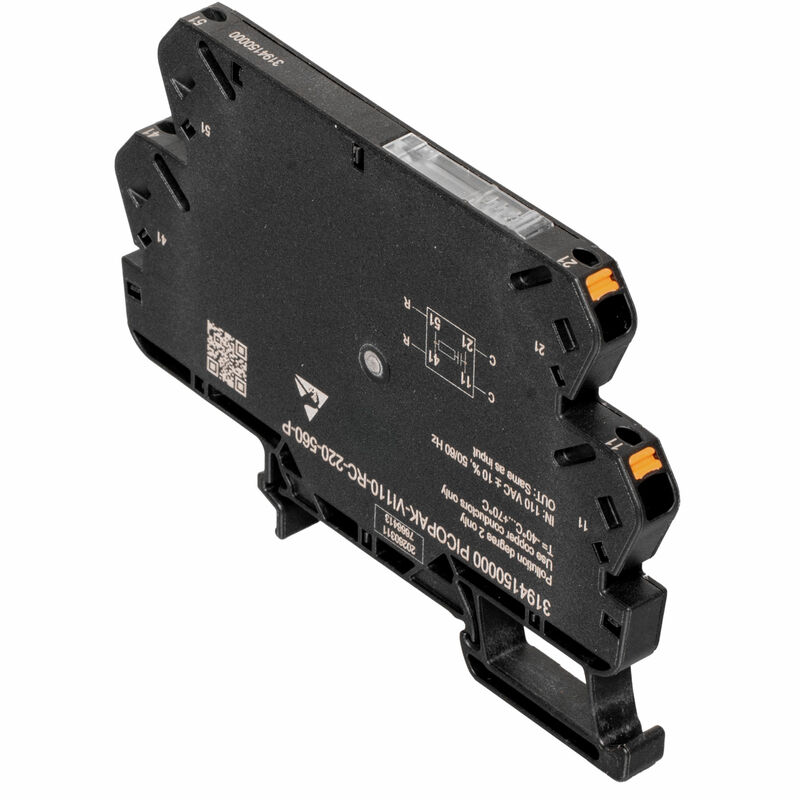

PICOPAK-VI110-RC-220-560-P
PICOPAK-VI110-RC-220-560-P

PICOPAK-VI110-RC-220-560-P

Product not yet available, preliminary product data.

RC element

Item No. 3194150000
Download data sheet Engineering Support Product Downloads
Accessories 6 Related products 1
General ordering data Dimensions and weights Input Output General data Part description Classifications

General ordering data

Version
RC element
Order No.
3194150000
Type
PICOPAK-VI110-RC-220-560-P
GTIN (EAN)
4099987981637
Qty.
10 items

Dimensions and weights

Net weight
28 g

Input

Frequency band
50 / 60 Hz
Input voltage
110 V AC ± 10%
Rated voltage (AC)
110 V
Resistance
100 Ω
Type
AC power path
passive RC element

Output

Output voltage, note
110 V AC ± 10%

General data

Recommended back-up fuse
2 A, time-lag (T) or faster

Part description

Product description
The device is a terminal with an integrated, passive RC circuit for the attenuation of switching voltage peaks in AC circuits. The device is intended for parallel or series connection to inductive loads or switching contacts within electrical installations. The device is not intended for protective isolation of persons.

Classifications

ETIM 8.0
EC000900
ETIM 9.0
EC000900
ETIM 10.0
EC000900
ECLASS 14.0
27-25-01-12
ECLASS 15.0
27-25-01-12
