POWERTERMINAL GK

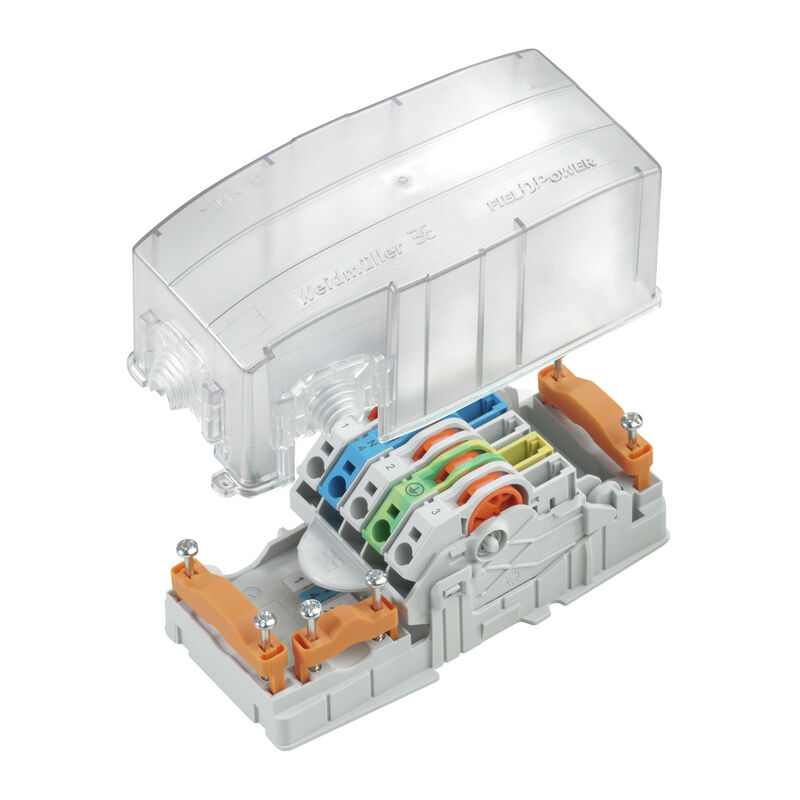

FieldPower® Box, IP30, in complete state, Polycarbonate, IDC terminal, PUSH IN

Item No. 1111910000

Properties

General ordering data

Version	FieldPower® Box, IP30, in complete state, Polycarbonate, IDC terminal, PUSH IN
Order No.	1111910000
Type	POWERTERMINAL GK
GTIN (EAN)	4032248890453
Qty.	1 items

Dimensions and weights

Depth	59 mm
Depth (inches)	2.323 inch
Height	157 mm
Height (inches)	6.181 inch
Width	75 mm
Width (inches)	2.953 inch
Net weight	250 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

Environmental Product Compliance

REACH SVHC

Potassium perfluorobutane sulfonate 29420-49-3

Clamping capacity

Connection data - contact element power bus

Wire connection method:

Insulation displacement connection (IDC)
Blade size of operating tool:

0.6 x 3.5 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

1.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

2.5 mm²
Conductor connection cross-section, finely stranded, max.:

6 mm²
Conductor connection cross-section, finely stranded, min.:

2.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

2.5 mm²

Connection data - contact element Branch / Feed-in

Wire connection method:

Insulation displacement connection (IDC)
Blade size of operating tool:

0.6 x 3.5 mm
Stripping length:

14 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

0.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

0.5 mm²
Conductor connection cross-section, finely stranded, max.:

10 mm²
Conductor connection cross-section, finely stranded, min.:

0.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

0.5 mm²
Conductor connection cross-section with wire end ferrule:
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  Twin wire-end ferrules
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²

General data

Material	Polycarbonate
Insulating material	Polycarbonate
Enclosure material	Polycarbonate
Silicone	No
Colour	Transparent beige
Protection degree	IP30 in complete state
UL 94 flammability rating	V-0
Lid attachment	plugged
lockable	No
Type of mounting	Screw mounting
Can be coded	Yes Coded on PE
Number of poles	5
Number of connections / pole	1
Wire connection method	IDC terminal PUSH IN

Rated data acc. to IEC

Rated data acc. to IEC for contact element

Voltage type:

AC
Number of phases:

3
Standard:

IEC 60947-7-1, IEC 60947-7-2
Rated voltage:

800 V
Rated impulse withstand voltage:

8 kV
Rated current (3 loaded poles):

41 A
Rated current (4 loaded poles):

25 A

Rated data acc. to UL

Rated data acc. to UL for contact element	Standard: UL 1059 Note: for use with UL-listed TC-ER cables Conductor connection cross-section, AWG, max.: AWG 10 Conductor connection cross-section, AWG, min.: AWG 14 Rated voltage: 600 V Rated current: 30 A
Standards	not UL approved
