Properties
| Version | Power supply, switch-mode power supply unit, 24 V |
| Order No. | 2580250000 |

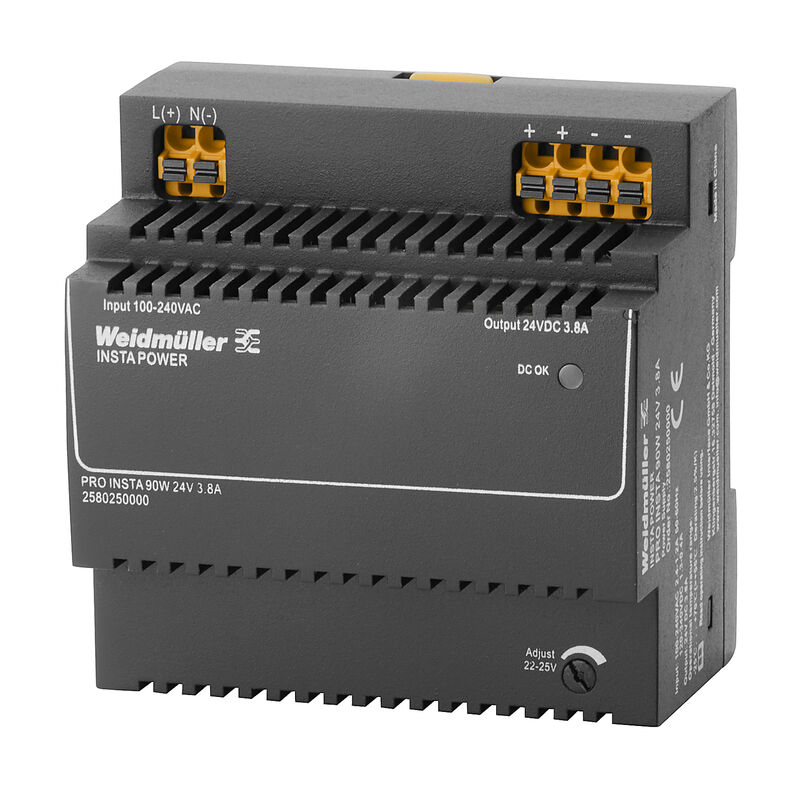

| Type | PRO INSTA 90W 24V 3.8A |
| GTIN (EAN) | 4050118590982 |
| Qty. | 1 items |
| Depth | 60 mm |
| Depth (inches) | 2.362 inch |
| Height | 90 mm |
| Height (inches) | 3.543 inch |
| Width | 90 mm |
| Width (inches) | 3.543 inch |
| Net weight | 352 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Start-up | ≥ -40 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Lead monoxide 1317-36-8 |
| SCIP | d62541f7-8058-4336-b693-7303c8b40800 |
| AC current consumption | 1.2 A @ 230 V AC / 2.4 A @ 100 V AC |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
| Connection system | PUSH IN with actuator |
| DC current consumption | 0.4 A @ 370 V DC / 1.3 A @ 120 V DC |
| DC input voltage range | 95…370 V DC |
| Frequency range AC | 45…65 Hz |
| Input fuse (internal) | Yes |
| Inrush current | max. 40 A |
| Nominal power consumption | 103.4 VA |
| Rated input voltage | 110...240 V AC / 120...340 V DC |
| Recommended back-up fuse |
2 A / DI, safety fuse 6 A, Char. B, circuit breaker 2...4 A, Char. C circuit breaker |
| Wire connection method | PUSH IN with actuator |
| Capacitive load | unrestricted |
| Connection system | PUSH IN |
| Continuous output current @ UNominal |
3.8 A @ 55 °C
2.38 A @ 70 °C |
| Nominal output current for Unom | 3.8 A @ 55 °C |
| Output current, max. | 3.8 A |
| Output power | 90 W |
| Output voltage, max. | 25 V |
| Output voltage, min. | 22 V |
| Output voltage, note | (adjustable via potentiometer on front) |
| Ramp-up time | ≤ 100 ms |
| Rated output voltage | 24 V DC ± 1 % |
| Residual ripple, breaking spikes | <50 mVss @ UNenn, Full Load |
| Wire connection method | PUSH IN with actuator |
| Degree of efficiency | 87 % |
| Housing version | Plastic, protective insulation |
| Mounting position, installation notice | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| MTBF |
|
| Power loss, idling | 0.45 W |
| Power loss, nominal load | 11.7 W |
| Protection against reverse voltages from the load | 30…35 V DC |
| Protection degree | IP20 |
| Short-circuit protection |
Yes
internal |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)/EN 61000-4-3 and EN 61000-4-8 (fields)/EN 61000-4-4 (burst)/EN 61000-4-5 (surge)/EN 61000-4-6 (conducted)/EN 61000-4-11 (dips)
EN 61000-4-11 (Dips) |
| Limiting of mains voltage harmonic currents |
EN 61000-4-2 (ESD)/EN 61000-4-3 and EN 61000-4-8 (fields)/EN 61000-4-4 (burst)/EN 61000-4-5 (surge)/EN 61000-4-6 (conducted)/EN 61000-4-11 (dips)
EN 61000-4-11 (Dips) |
| Noise emission in accordance with EN55032 | Class B |
| Shock resistance IEC 60068-2-27 | 15 g In all directions |
| Vibration resistance IEC 60068-2-6 | 2.3 g |
| Insulation voltage input / earth | 3.5 kV |
| Insulation voltage output / earth | 0.5 kV |
| Insulation voltage, input/output | 4 kV |
| Pollution severity | 2 |
| Protection class | II |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage |
SELV acc. to IEC 61010-1
PELV acc. to IEC 61010-2-201 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 24 AWG |
| Conductor cross-section, flexible , min. | 0.25 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Conductor cross-section, rigid , min. | 0.25 mm² |
| Connection system | PUSH IN with actuator |
| Number of terminals | 2 (L,N) |
| Wire connection cross section, flexible (input), max. | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 24 AWG |
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, flexible , min. | 0.25 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Conductor cross-section, rigid , min. | 0.25 mm² |
| Connection system | PUSH IN |
| Number of terminals | 4 (++ / --) |
| LED green | Operating voltage OK |
| Approval/Certificate/Document of Conformity |
[PRO INSTA 96W_90W EN 62368-1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306091)
[CSA UL508 UL 121201 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306092) [UL 61010 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306097) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86894) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_313928) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96338) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2580250000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2580250000) |
| User Documentation | [Operating instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_86624) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 9.0 | EC002540 |
| ECLASS 9.0 | 27-04-07-01 |
| ECLASS 9.1 | 27-04-07-01 |
| ECLASS 10.0 | 27-04-07-01 |
| ECLASS 11.0 | 27-04-07-01 |
| ECLASS 12.0 | 27-04-07-01 |
| ECLASS 13.0 | 27-04-07-01 |
| ECLASS 14.0 | 27-04-07-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
