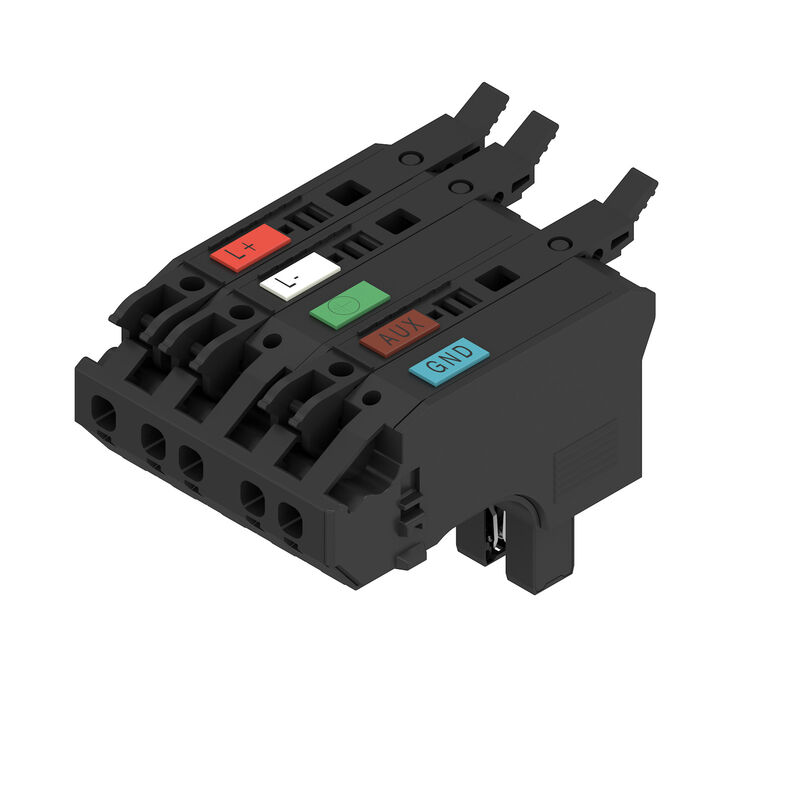

PTSI 4 DCM
PTSI 4 DCM
PTSI 4 DCM

PTSI 4 DCM

, Distribution, 800 , IP20, Polyamide, PUSH IN,Number of poles : 5

Item No. 3021780000
Download data sheet Product Downloads
Accessories 8 Related products 3
General ordering data Dimensions and weights Temperatures Clamping capacity, PUSH IN connection Clamping capacity General data Classifications

General ordering data

Version
, Distribution, 800 , IP20, Polyamide, PUSH IN,Number of poles : 5
Order No.
3021780000
Type
PTSI 4 DCM
GTIN (EAN)
4099986937840
Qty.
1 items

Dimensions and weights

Depth
55 mm
Depth (inches)
2.165 inch
Height
85 mm
Height (inches)
3.346 inch
Width
57 mm
Width (inches)
2.244 inch
Net weight
100 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...55 °C

Clamping capacity, PUSH IN connection

Number of poles
5

Clamping capacity

Connection data - contact element Branch / Feed-in
  • Wire connection method:
    PUSH IN
  • Blade size of operating tool:
    3.0 x 0.5 mm
  • Stripping length:
    12 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    4 mm²
  • Conductor connection cross-section, solid, min.:
    0.5 mm²
  • Conductor connection cross-section, stranded, max.:
    4 mm²
  • Conductor connection cross-section, stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    4 mm²
  • Conductor connection cross-section, finely stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finest stranded, max.:
    4 mm²
  • Conductor connection cross-section, finest stranded, min.:
    0.5 mm²
  • Conductor connection cross-section with wire end ferrule:
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      4 mm²
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      4 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      4 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      4 mm²
    • Type of wire end ferrule:
      Twin wire-end ferrules
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      4 mm²

General data

Insulating material
Polyamide
Silicone
No
Colour
black
Protection degree
IP20
UL 94 flammability rating
V-0
Type of mounting
Plugged
Function
Distribution
Can be coded
Coded on PE + GND
Test point
2 mm
Voltage type
DC
Number of poles
5
Number of connections / pole
1
Wire connection method
PUSH IN
Cartridge fuse
6.3 x 32 mm (1/4 x 1 1/4")
Conductor outlet direction
90°
Fuse holder (cartridge holder)
Pivoting

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
