Properties
| Version | Photovoltaics, Combiner Box, 1000 V, 1 MPP, 10 Inputs / 1 Output per MPP, With fuse holder, Surge protection I / II, Switch disconnector, Cable gland, Designed for Fronius Tauro Eco Inverters |
| Order No. | 8000111135 |
| Type | PV 210S0F3CXXV1O0TXPX10PWW |
| GTIN (EAN) | 4099986935648 |
| Qty. | 1 items |
| Depth | 300 mm |
| Depth (inches) | 11.811 inch |
| Depth with add-on components | 300 mm |
| Height | 847 mm |
| Height (inches) | 33.346 inch |
| Width | 636 mm |
| Width (inches) | 25.039 inch |
| Net weight | 23,154.256 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1d28ada4-1634-4382-8635-45f6353a6574 |
| Monitoring function | Non monitored |
| Current per Maximum Power Point, max. | 135 A |
| Rated DC voltage | 1,000 V |
| Rated short-term current resistance |
|
| Connection type string | Internal terminal (with cable gland feed-through) |
| Enclosure attachment | Fixing lugs |
| Impact resistance | IK10 in accordance with IEC 62262 |
| Insulating material | Polyester glass-fibre reinforced, Polycarbonate |
| Protection class | II |
| Type of mounting | Fixing lugs |
| Installation location | Protected outdoor area (>1 km from sea) |
| Protection degree | IP65 |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2 |
| Amount of maximum power points (MPP) | 1 |
| Cartridge fuse | 10 x 38 mm |
| DC Input + & - |
|
| Functional earth connector |
|
| Fuse type | Empty fuse holder |
| Fuse-link standard | gPV (EN 60269-6) |
| Fused poles of string | +/- |
| Max. number of DC inputs | per Maximum Power Point 10 inputs connected in parallel |
| Number of conduit inlets | 10 |
| Number of string inputs per MPP | ≥ 7…≤ 10 |
| Number of inputs | 10 |
| DC Output + & - |
|
| Max. number of DC outputs | per Maximum Power Point 1 output |
| Discharge current In (8/20 µs) | 20 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Lightning test current Iimp (10/350 µs) | 6.25 kA |
| Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE | 1,000 V |
| PV system voltage, max. Ucpv | 1,000 V |
| Requirements class | Type I/II |
| Short-circuit curent ISCPV | 162.5 A |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2 |
| Surge protection DC side |
yes, no auxiliary contact
1000 V type I + II |
| Total discharge current Itotal ( 8/20µs) | 50 kA |
| Total discharge current Itotal (10/350µs) | 12.5 kA |
| Motor drive available | No |
| Number of breaking operation cycles at rated current | 200 |
| Number of operating cycles | 10000 |
| Rated impulse withstand voltage | 12 kV |

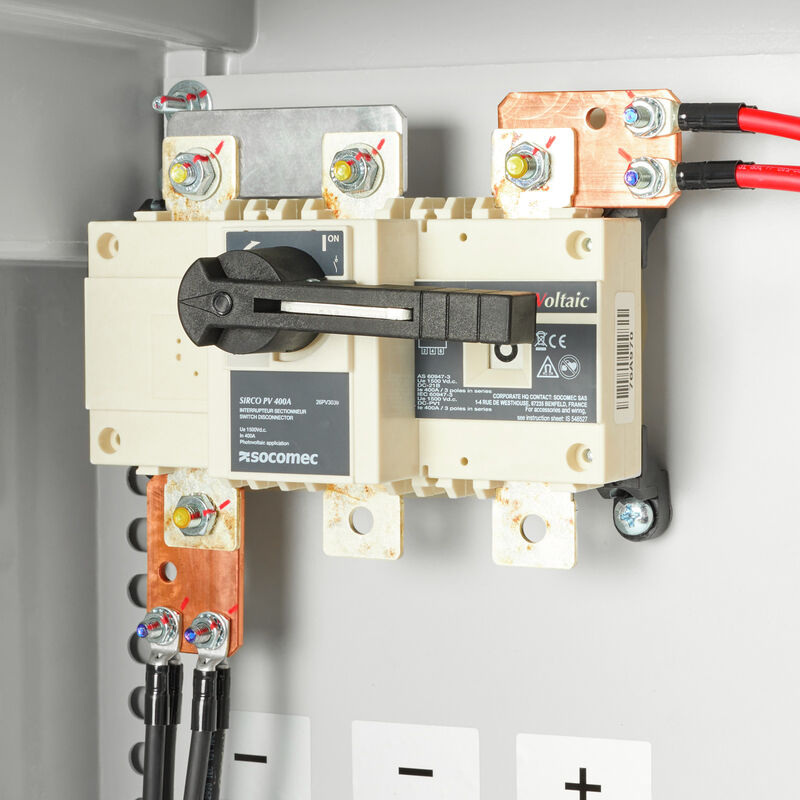

| Switch disconnector execution | switch inside enclosure |
| Voltage type | DC |
| Product information | Fuses are not included |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| ROHS | Conform |
