Properties
| Version | Photovoltaics, Combiner Box, PV Inline, 1100 V, 1 MPP, 1 Input / 1 Output per MPP, Surge protection I / II, MC4 |
| Order No. | 3108220000 |
| Type | PVI DC 1I 1O 1MPP SPD1 MC4 10 |
| GTIN (EAN) | 4099987179775 |
| Qty. | 1 items |
| Depth | 52 mm |
| Depth (inches) | 2.047 inch |
| Height | 280 mm |
| Height (inches) | 11.024 inch |
| Width | 60 mm |
| Width (inches) | 2.362 inch |
| Net weight | 658 g |
| Humidity | 5 - 95% rel. humidity |
| Time interval | 5 years |
| Current per Maximum Power Point, max. | 39 A |
| Rated DC voltage | 1,100 V |
| Rated short-term current resistance |
|

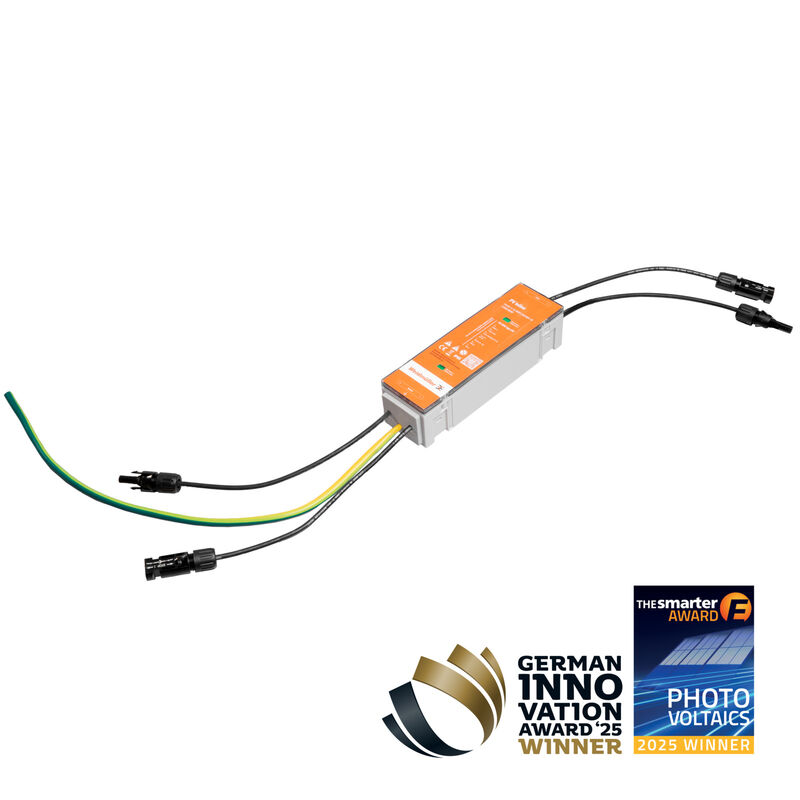

| Connection type string | Plug MC4 |
| Cover | with cover |

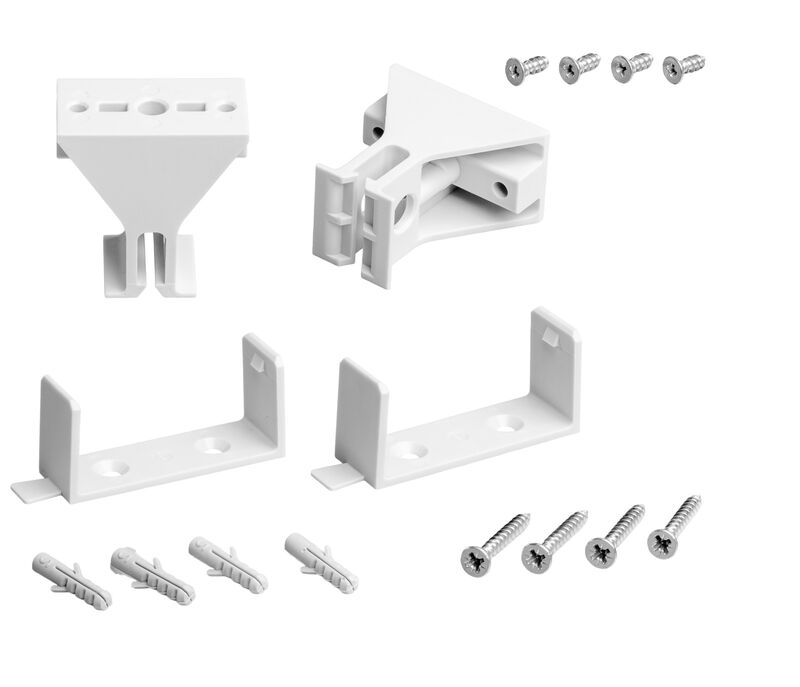

| Enclosure attachment | Via mounting foots |
| Impact resistance | IK06 |
| Insulating material | ABS |
| Protection class | II |

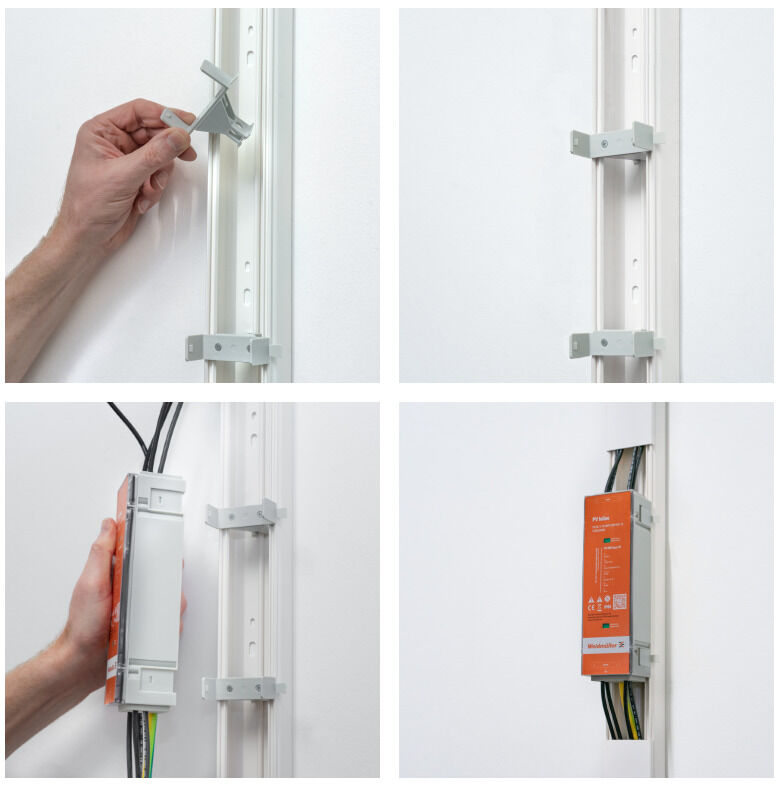

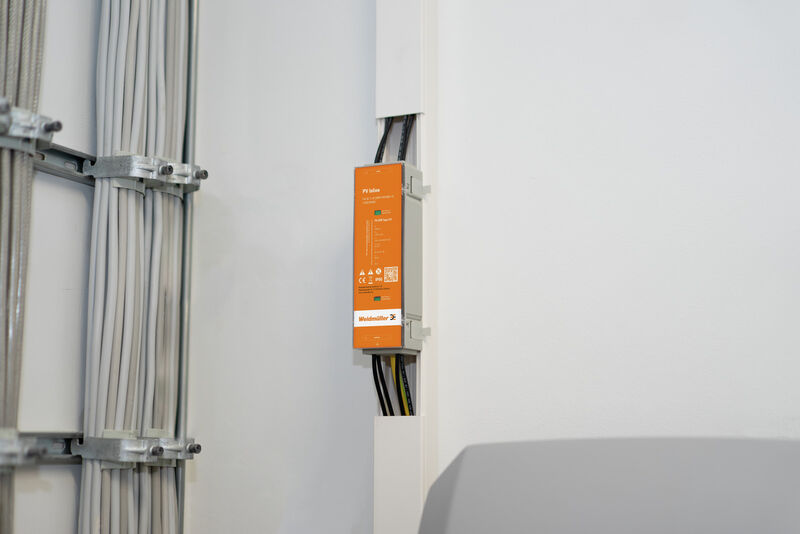

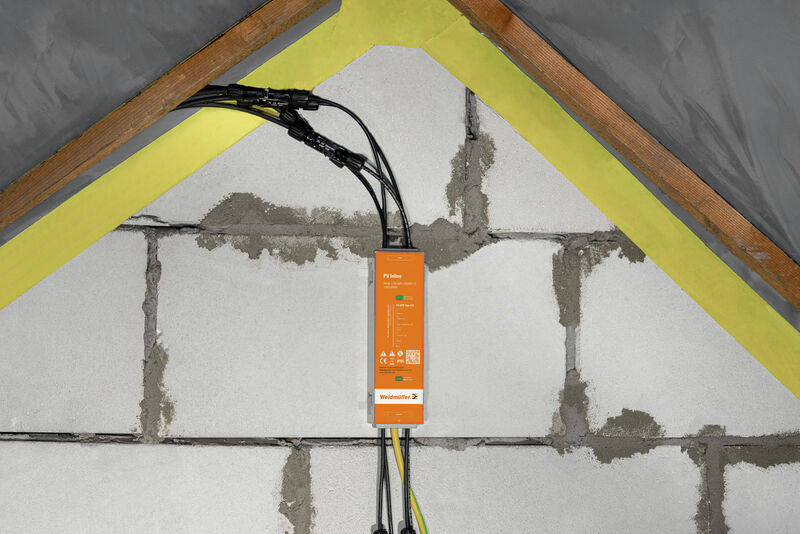

| Type of mounting | Wall mounting |
| Installation location | Protected outdoor area (>1 km from sea) |
| Protection degree | IP65 |
| Standards |
IEC 61643-31
EN 50539-11 |
| Amount of maximum power points (MPP) | 1 |
| DC Input + & - |
|
| Functional earth connector |
|
| Fuse type | Neither fuse cartridge nor holder |
| Max. number of DC inputs | per Maximum Power Point 1 input |
| Number of string inputs per MPP | 1 |
| Number of inputs | 1 |
| DC Output + & - |
|
| Max. number of DC outputs | per Maximum Power Point 1 output |
| Discharge current In (8/20 µs) | 20 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Lightning test current Iimp (10/350 µs) | 5 kA |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 4.4 kV |
| PV system voltage, max. Ucpv | 1,100 V |
| Requirements class | Type I/II |
| Short-circuit curent ISCPV | 6,000 A |
| Standards |
IEC 61643-31
EN 50539-11 |
| Surge protection DC side | 1000 V type I + II |
| Total discharge current Itotal ( 8/20µs) | 40 kA |
| Total discharge current Itotal (10/350µs) | 5 kA |
| Approval/Certificate/Document of Conformity | [CE Declaration PV Inline](https://mdcop.weidmueller.com/mediadelivery/asset/900_324013) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_324834) |
| User Documentation | [Manual PV Inline](https://mdcop.weidmueller.com/mediadelivery/asset/900_324703) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
