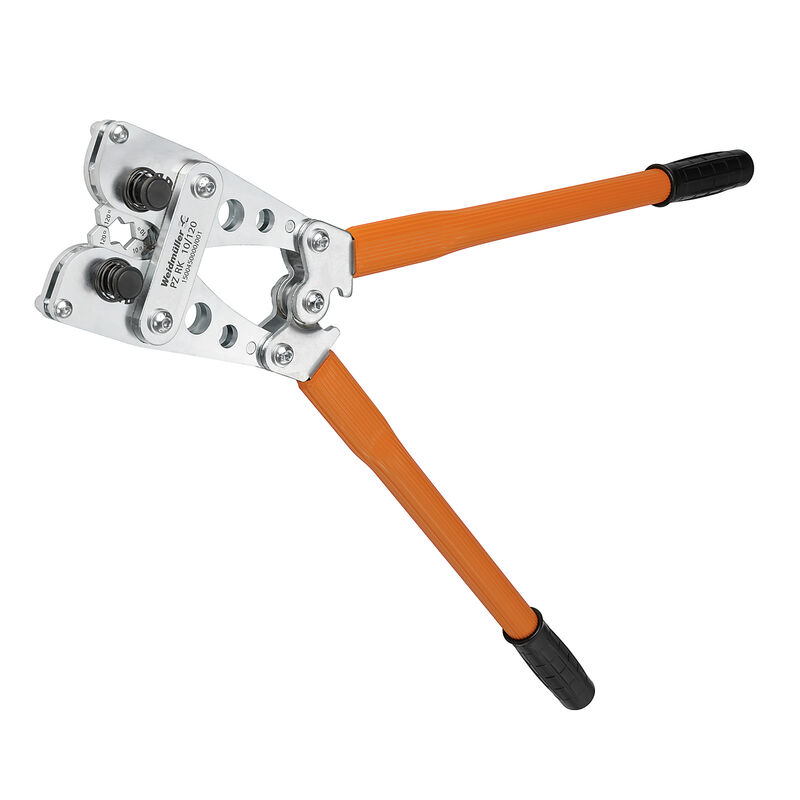

PZ RK 10/120

PZ RK 10/120

10mm², 120mm², Hexagonal crimp, WM crimp

Item No. 1500450000
Download data sheet Product Downloads
Accessories 148 Is accessory of 150 Related products 4
General ordering data Dimensions and weights Environmental Product Compliance Technical data Crimp inserts Description of contact tool data crimping Classifications

General ordering data

Version
10mm², 120mm², Hexagonal crimp, WM crimp
Order No.
1500450000
Type
PZ RK 10/120
GTIN (EAN)
4050118309065
Qty.
1 items

Dimensions and weights

Depth
660 mm
Depth (inches)
25.984 inch
Length
660 mm
Length (inches)
25.984 inch
Net weight
3,760 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Version
Mechanical, without interchangeable inserts

Crimp inserts

Crimping width
5 mm

Description of contact

Crimping range, max.
120 mm²
Crimping range, min.
10 mm²
Type of contact
Euro series cable lug

tool data crimping

Crimping type/profile
Hexagonal crimp
WM crimp
Wire end ferrules cross-section, max.
120 mm²
Wire end ferrules cross-section, min.
10 mm²

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
