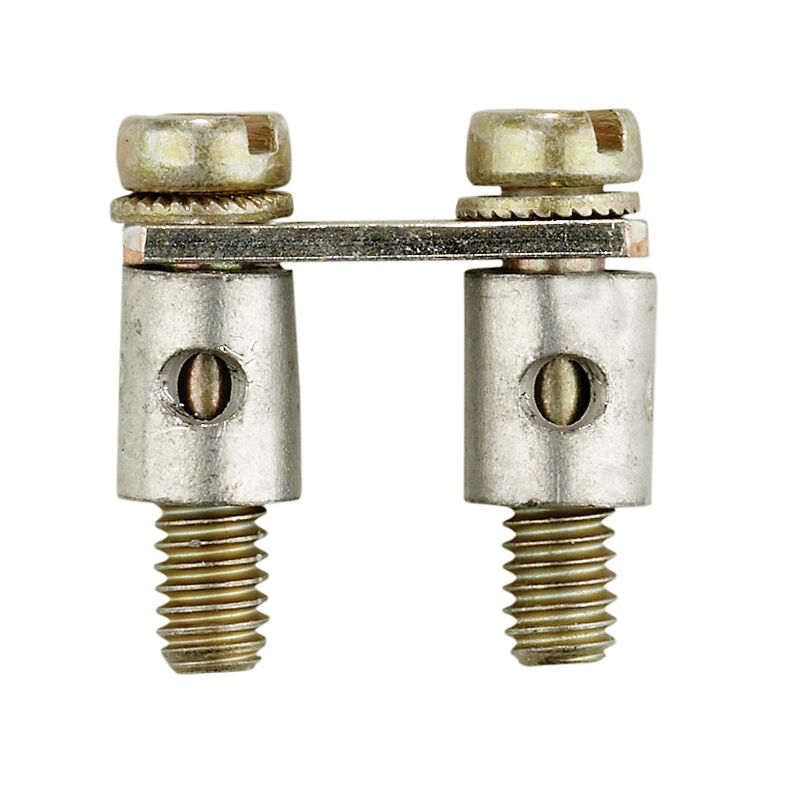

Q 2 AKZ4 — Product image

Similar to illustration

Q 2 AKZ4

Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 2, Pitch in mm (P): 6.10, Insulated: No, Width: 11.1 mm

Item No. 0336400000

Properties

General ordering data

Version	Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 2, Pitch in mm (P): 6.10, Insulated: No, Width: 11.1 mm
Order No.	0336400000
Type	Q 2 AKZ4
GTIN (EAN)	4008190037680
Qty.	50 items

Dimensions and weights

Depth	9.9 mm
Depth (inches)	0.39 inch
Height	4 mm
Height (inches)	0.157 inch
Width	11.1 mm
Width (inches)	0.437 inch
Net weight	1.538 g

Temperatures

Storage temperature

-25 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Cu Zn
Colour	grey

System specifications

Version

for cross-connection link

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Type of fixing	when screwed in

Cross-connector

Number of cross-connected terminals	2
Rated current, 2-pole	32 A
Rated current, multi-pole	32 A
Type	Cross-connector

Dimensions

Pitch in mm (P)

6.1 mm

General

Installation advice	Direct mounting
Number of poles	2

Rating data

Rated current

24 A

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59007)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.0336400000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0336400000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000489
ETIM 7.0	EC000489
ETIM 8.0	EC000489
ETIM 9.0	EC000489
ECLASS 9.0	27-14-11-40
ECLASS 9.1	27-14-11-40
ECLASS 10.0	27-14-11-40
ECLASS 11.0	27-14-11-40
ECLASS 12.0	27-14-11-40
ECLASS 13.0	27-25-03-03
ECLASS 14.0	27-25-03-03

Approvals

ROHS

Conform
