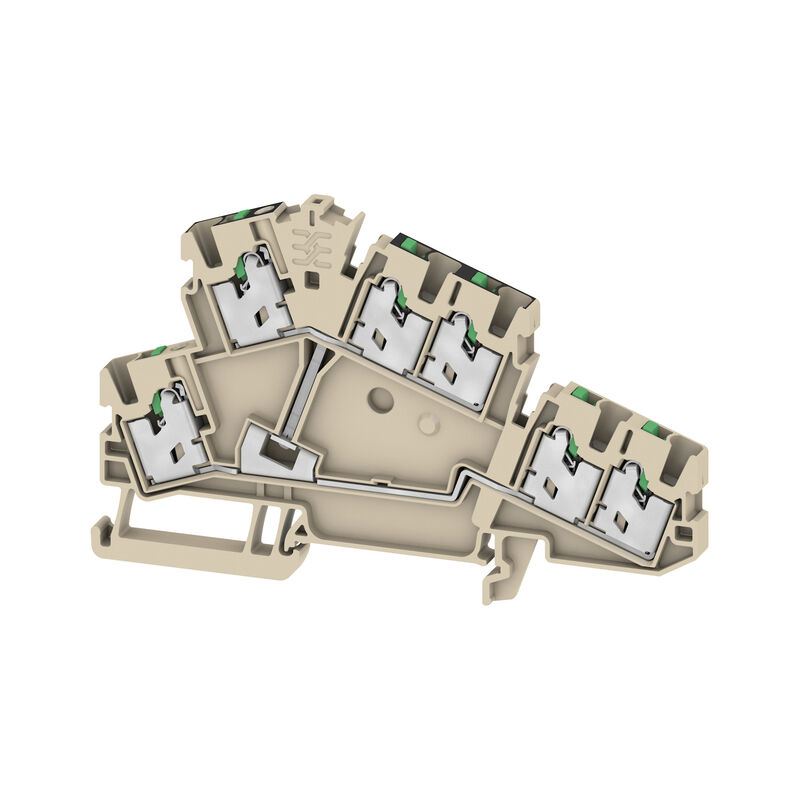

Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 6, Number of levels: 2, TS 35, V-0

Product ID 3093210000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Zubehör 91 Verwandte Artikel 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Autres caractéristiques techniques Klemmbare Leiter (Weiterer Anschluss) przewody zaciskane (złącze wymiarowane) Généralités Rating data Расчетные данные согласно UL Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cURus)
E60693

General ordering data

Version
Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 6, Number of levels: 2, TS 35, V-0
Order No.
3093210000
Type
S2T 2.5 6C VL
GTIN (EAN)
4099987110181
수량
50 items

Dimensions and weights

Depth
64,5 mm
Depth (inches)
2,539 inch
Depth including DIN rail
65 mm
Height
102,5 mm
Height (inches)
4,035 inch
Width
5,1 mm
Width (inches)
0,201 inch
순중량
22 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Werkstoff
Wemid
Farbe
dark beige
Colour of operational elements
green
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

엔드 커버 플레이트 필요
Yes
전위 수
1
Number of levels
2
Number of clamping points per level
3
계층당 전위 수
1
레벨 내부 교차 결선
Yes
PE 결선
No
Guida equipaggiata
TS 35
N funkció
No
PE 기능
No
PEN function
No

Autres caractéristiques techniques

Explosion-tested version
Non
Open sides
справа
Snap-on
Ja
Typ montáže
TS 35
Type of fixing
Snap-on
With snap-in pegs
No

Klemmbare Leiter (Weiterer Anschluss)

Connection type, additional connection
SNAP IN

przewody zaciskane (złącze wymiarowane)

Blade size
0,6 x 3,5 мм
Clamping range, max.
2,5 mm²
Clamping range, min.
0,34 mm²
Connection cross-section, finely stranded, max.
2,5 mm²
Connection cross-section, finely stranded, min.
0,34 mm²
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,34 mm²
Connection direction
schräg
Gauge to IEC 60947-1
A2
Number of connections
6
Stripping length
10 mm
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
SNAP IN
Type of connection 2
SNAP IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,34 mm²

Généralités

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22

Rating data

Bemessungsquerschnitt
2,5 mm²
정격 전압
800 V
Bemessungsspannung DC
800 V
Nennstrom
24 A
Corrente con conduttore max.
24 A
Norme
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Pérdida de potencia según la norma IEC 60947-7-x
0,77 mW
Pollution severity
3
Surge voltage category
III

Расчетные данные согласно UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
