SAI-04Z-MXPP-4A-M08L-PNP-05U03
SAI-04Z-MXPP-4A-M08L-PNP-05U03
SAI-04Z-MXPP-4A-M08L-PNP-05U03
Detailed drawing
SAI-04Z-MXPP-4A-M08L-PNP-05U03

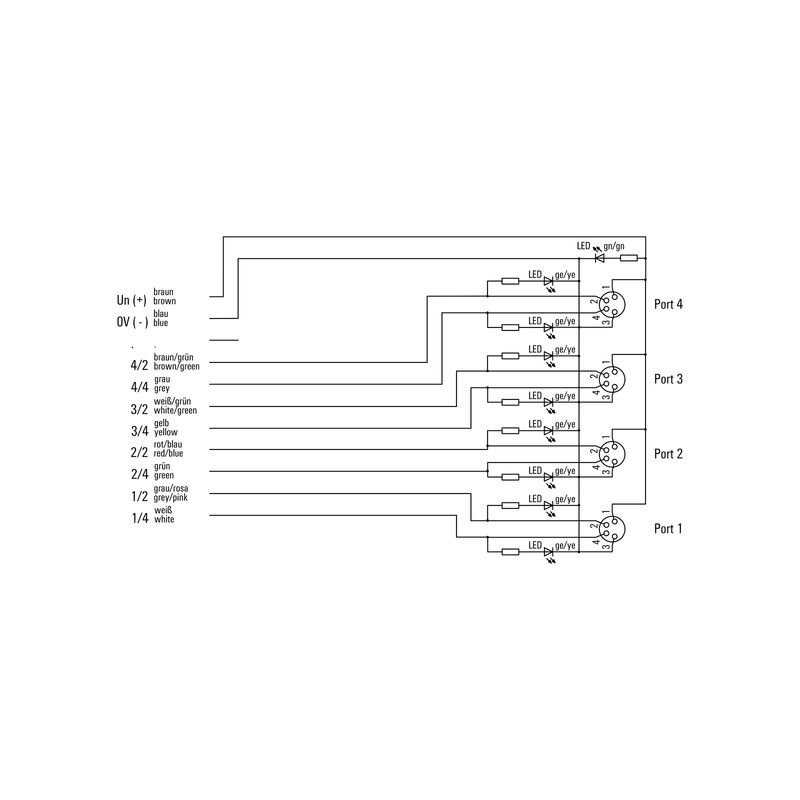

Wiring diagram

SAI-04Z-MXPP-4A-M08L-PNP-05U03

Sensor-actuator passive distributor, M8, 5 m, Number of poles: 4, Number of contact sockets: 4

Produkt ID 2819170000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor-actuator passive distributor, M8, 5 m, Number of poles: 4, Number of contact sockets: 4
Order No.
2819170000
Type
SAI-04Z-MXPP-4A-M08L-PNP-05U03
GTIN (EAN)
4064675330394
Qty.
1 Styk

Dimensions and weights

Depth
30 mm
Depth (inches)
1,181 inch
Height
32 mm
Height (inches)
1,26 inch
Width
76,8 mm
Width (inches)
3,024 inch
Net weight
399,52 g

Temperatures

Operating temperature
-25 - 80°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Conductor O.D., min.
7,1 mm
Conductor O.D., max.
7,7 mm
Clamping range, min.
0,08 mm²
Clamping range, max.
1,5 mm²
Distributor outlet
Hood version

Electrical data

Rated voltage, min.
15 V
Rated voltage, max.
30 V
Rated voltage
30 V
Max. current-carrying capacity per slot
2 A
Total current
8 A
Current per signal
2 A
Electrical isolation available
No

General technical data

Protection degree
IP67
Number of poles
4
Cable pole count
10
Number of contact sockets
4
Connection thread
M8
Pollution severity
3
Fire behaviour
V-0
LED
No
LED initiator
No

Material data

Material O-Ring
FKM
Housing main material
PBT
Material of distributor
Plastic
Housing colour
black
Hood sealing material
FKM
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Colour coding
white
grey / pink
green
red / blue
yellow
white / green
grey
brown / green
blue
brown
Conductor O.D., max.
7,7 mm
Conductor O.D., min.
7,1 mm
Halogen
No
Number of poles
4
Sheath material
PUR
Sheathing colour
black
Cable length
5 m
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC002585
ETIM 9.0
EC002585
ETIM 10.0
EC002585
ECLASS 14.0
27-44-01-08
ECLASS 15.0
27-44-01-08
