Properties

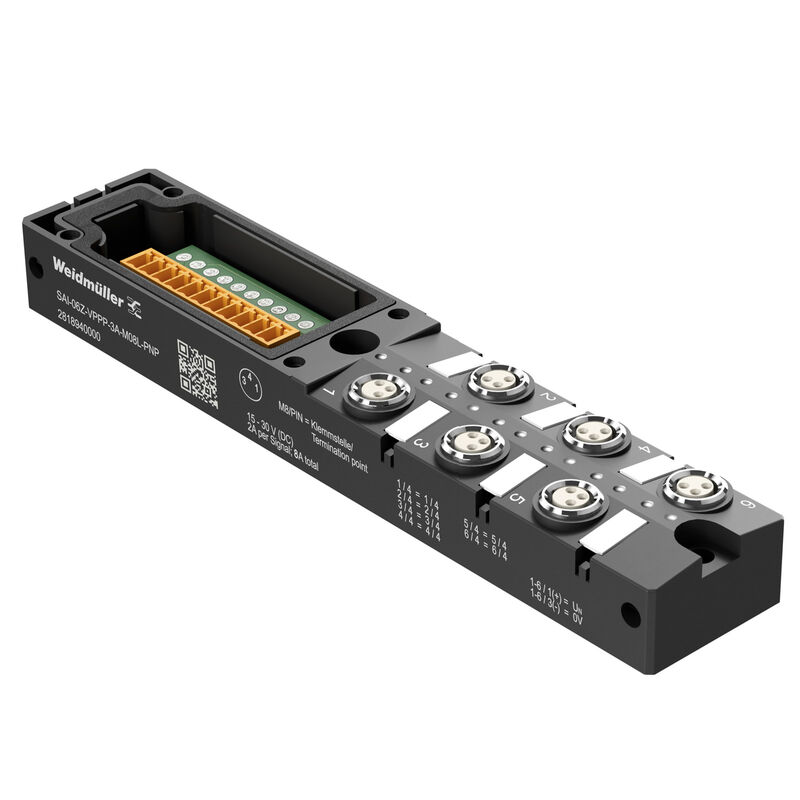

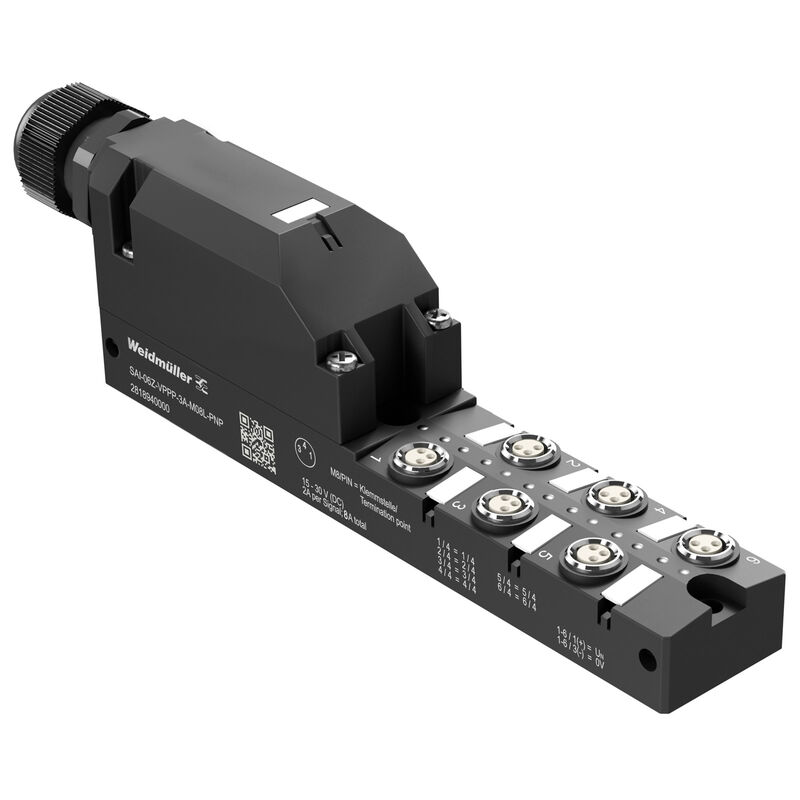

| Version | Sensor-actuator passive distributor, M8, LED: Yes, Number of poles: 3, Number of contact sockets: 6 |
| Order No. | 2818940000 |
| Type | SAI-06Z-VPPP-3A-M08L-PNP |
| GTIN (EAN) | 4064675329961 |
| Qty. | 1 items |
| Net weight | 10 g |
| Operating temperature | -25 - 80°C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable glands | M 20 |
| Clamping range, min. | 0.08 mm² |
| Clamping range, max. | 1.5 mm² |
| Distributor outlet | Hood distributor |
| Type of connection | PUSH IN |
| Rated voltage, min. | 15 V |
| Rated voltage, max. | 30 V |
| Max. current-carrying capacity per slot | 4 A |
| Total current | 6 A |
| Current per signal | 2 A |
| Electrical isolation available | No |
| Protection degree | IP67 |
| Number of poles | 3 |
| Number of contact sockets | 6 |
| Connection thread | M8 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | yellow |
| Material O-Ring | FKM |
| Housing main material | PBT |
| Material of distributor | Plastic |
| Housing colour | black (similar to RAL 9005) |
| Hood sealing material | FKM |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Number of poles | 3 |
| Suitable for cable carriers | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304998) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2818940000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 9.0 | EC003558 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-11 |
| ECLASS 11.0 | 27-44-01-11 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
