Properties

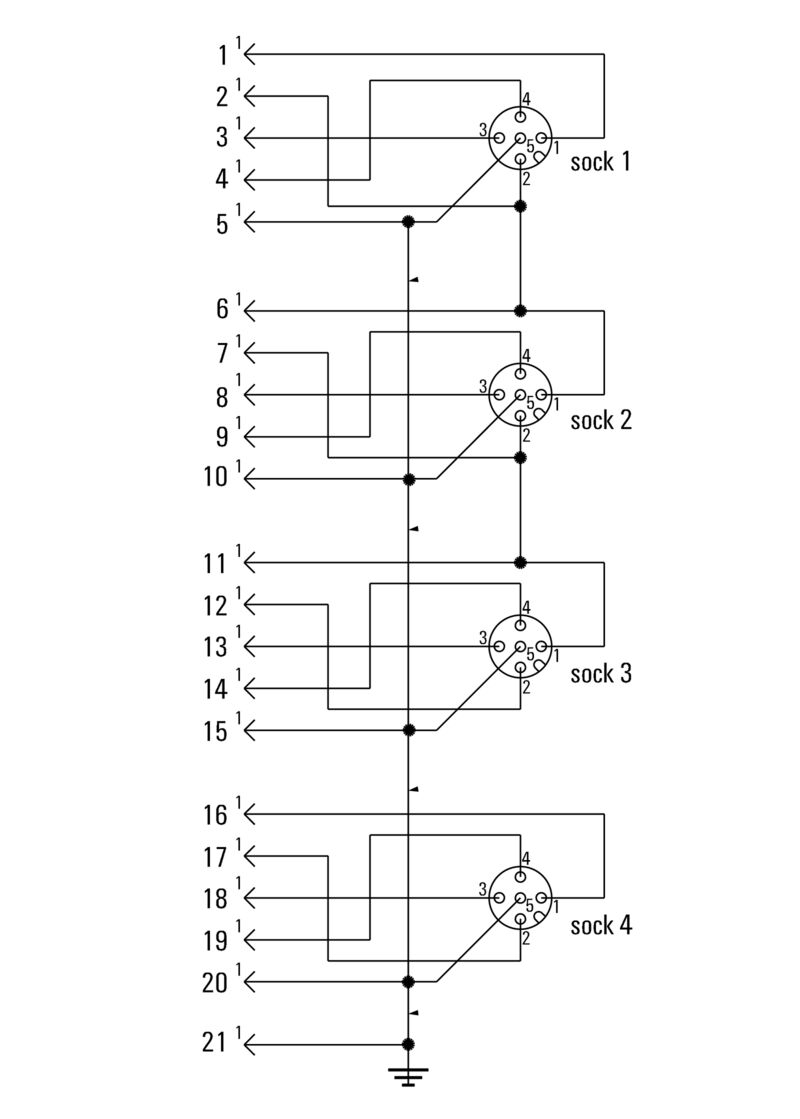

| Version | Hood distributor lower part, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1 |
| Order No. | 1044340000 |
| Type | SAI-4-M M12 1:1 SO UT |
| GTIN (EAN) | 4032248776474 |
| Qty. | 2 items |

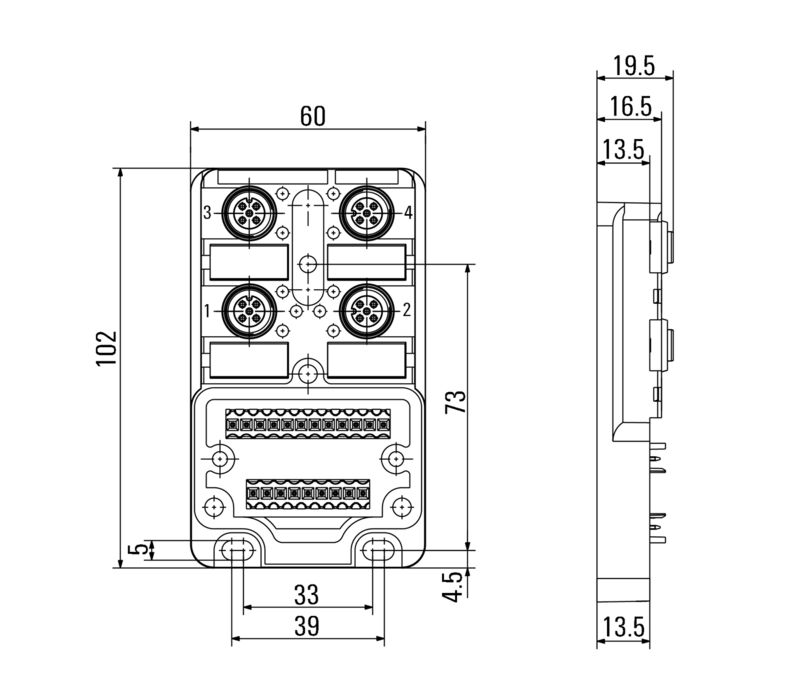

| Depth | 102 mm |
| Depth (inches) | 4.016 inch |
| Height | 19.5 mm |
| Height (inches) | 0.768 inch |
| Width | 60 mm |
| Width (inches) | 2.362 inch |
| Net weight | 124 g |
| Operating temperature | -20 - 90°C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Conductor O.D., min. | 6 mm |
| Conductor O.D., max. | 12 mm |
| Distributor outlet | Hood distributor lower part |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 30 V |
| Max. current-carrying capacity per slot | 4 A |
| Total current | 10 A |
| Electrical isolation available | No |
| Insulation strength | 109 Ω |
| Plug-in station coding | A-coded |
| Protection degree | IP67 |
| Number of poles | 5 |
| Number of contact sockets | 4 |
| Connection thread | M12 |
| LED | No |
| LED initiator | No |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Conductor O.D., max. | 12 mm |
| Conductor O.D., min. | 6 mm |
| Number of poles | 5 |
| Suitable for cable carriers | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 9.0 | EC003558 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-11 |
| ECLASS 11.0 | 27-44-01-11 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| ROHS | Conform |
