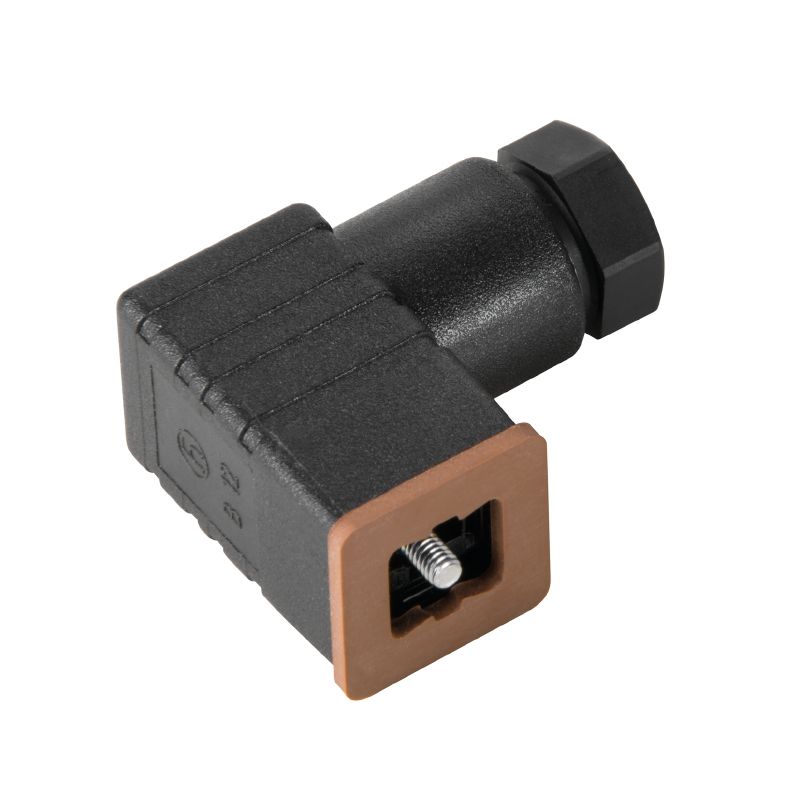

SAIB-VSC-3P/250/7-OB

Valve plug-in connector (field assembled), Number of poles: 3, Industrial design C (9.4 mm), Without circuitry, 250 V, 0.25...0.75 mm²

Item No. 1873200000

Version	Valve plug-in connector (field assembled), Number of poles: 3, Industrial design C (9.4 mm), Without circuitry, 250 V, 0.25...0.75 mm²
Order No.	1873200000
Type	SAIB-VSC-3P/250/7-OB
GTIN (EAN)	4032248495429
Qty.	1 items

Net weight

13 g

All valve plugs are fitted with protective circuits	Without circuitry
Cable diameter, max.	6 mm
Cable diameter, min.	4.5 mm
Cable glands	PG 7
Coding	Industrial design C (9.4 mm)
Conductor cross-section, max.	0.75 mm²
Conductor cross-section, min.	0.25 mm²
Connection cross-section, max.	0.75 mm²
Connection cross-section, min.	0.25 mm²
Contact material	CuZn
Contact surface	CuSn
Housing main material	PA 6 GF
Insulation strength	10⁸ Ω
LED	No
Number of poles	3
Plugging cycles	≤ 50
Pollution severity	3
Protection degree	IP65 when screwed in
Rated current	6 A
Rated voltage	250 V
Shield connection	No
Temperature range of housing	-25…+90 °C
Type of connection	Screw connection

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_174668)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1873200000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
