Properties

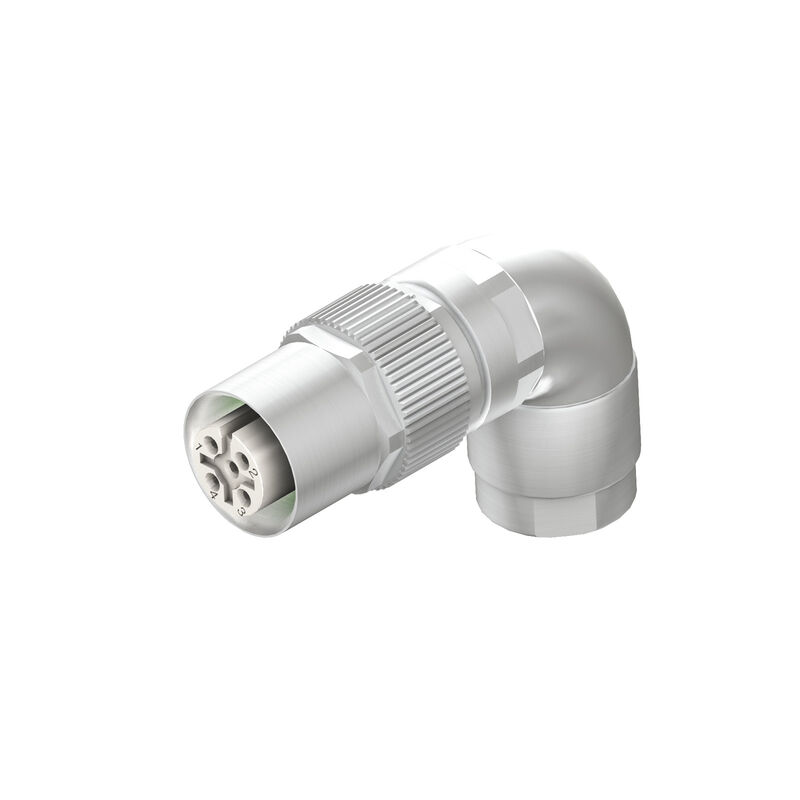

| Version | Field attachable connector, M12 |
| Order No. | 2664830000 |
| Type | SAIBWC-5-18/28-4/9CG |
| GTIN (EAN) | 4050118765267 |
| Qty. | 1 items |
| Net weight | 30.5 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Cable diameter, max. | 9 mm |
| Cable diameter, min. | 4 mm |
| Coding | A-coded |
| Conductor cross-section, max. | 0.75 mm² |
| Conductor cross-section, min. | 0.08 mm² |
| Contact surface | Gold-plated |
| Gender of contact | Female |
| Housing main material | CuZn |
| Number of poles | 5 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 50 V |
| Shield connection | Yes |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Brass, nickel-plated |
| Type of connection | Crimp connection |
| Number of poles | 5 |
| Connection 1 | M12 |
| Connection 2 | Crimp |
| Housing main material | CuZn |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Protection degree | IP67 |
| Plugging cycles | ≥ 500 |
| Connector standard | IEC 61076-2-101 |
| Fire safety for railway vehicles | According to EN 45545, HL1 - HL3 |
| Shock and vibration proof according to |
DIN EN 61373 KAT2 (Bogie)
DIN EN 61373 Class 1B** |

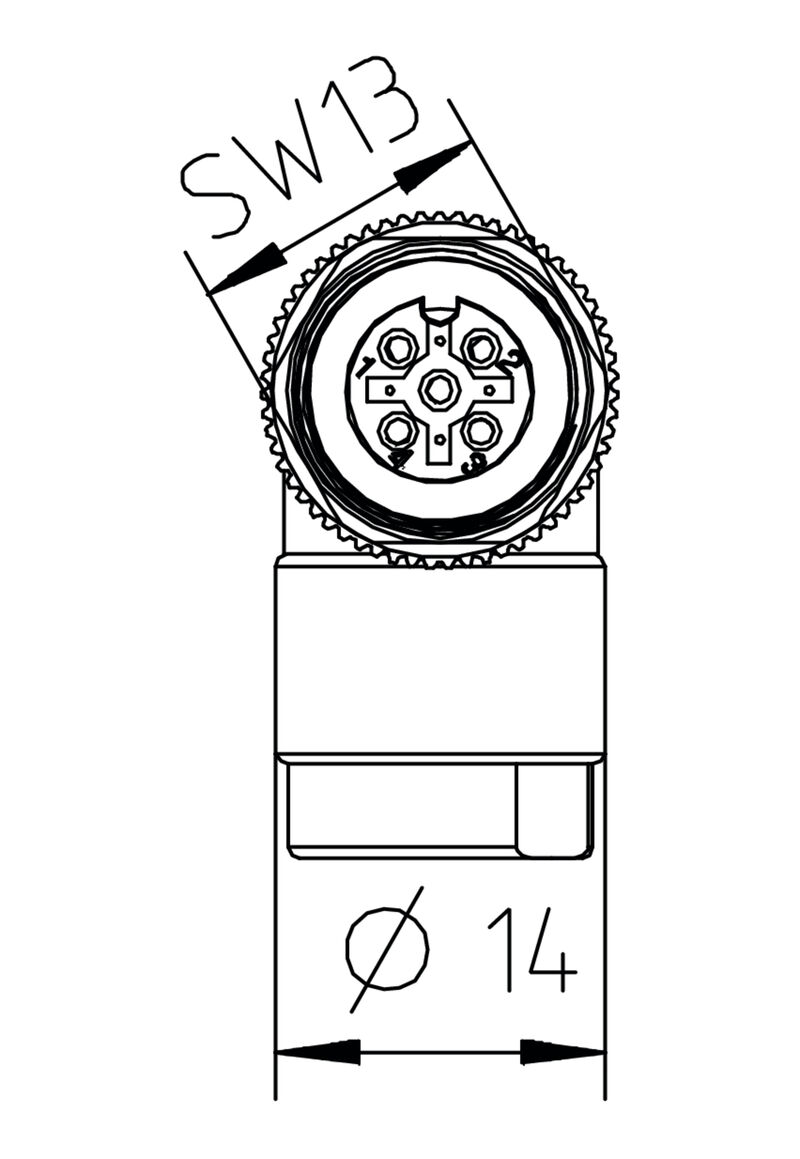

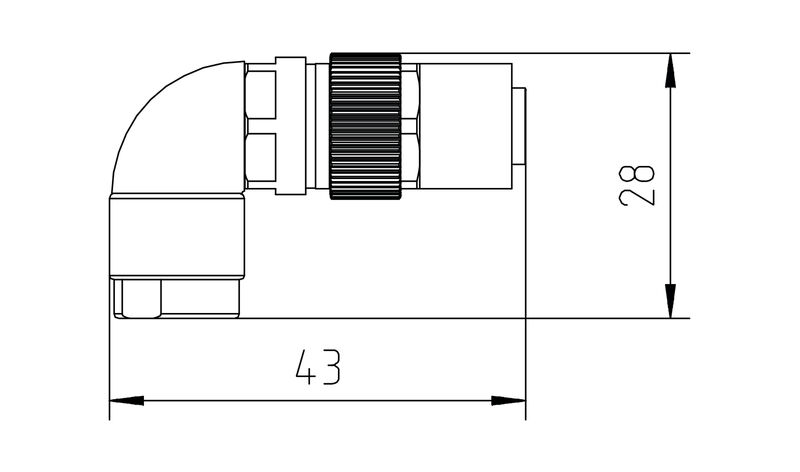

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96090) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2664830000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| ROHS | Conform |
