SAIL-M12BG-3B-10U
SAIL-M12BG-3B-10U
Dimensioned drawing
Straight socket
SAIL-M12BG-3B-10U
Pole scheme
Socket
SAIL-M12BG-3B-10U
Wiring diagram
SAIL-M12BG-3B-10U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-3B-10U

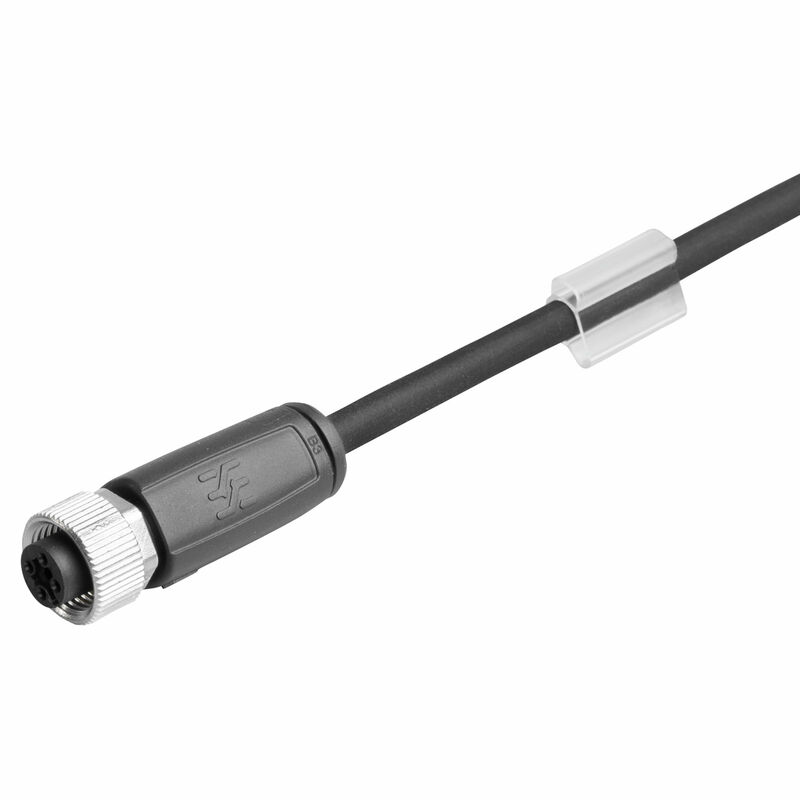

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1057741000
Datenblatt herunterladen Tekninen tuki Tuotelataukset
Lisävarusteet 6 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1057741000
Type
SAIL-M12BG-3B-10U
GTIN (EAN)
4032248797875
Qty.
1 items

Dimensions and weights

Diameter
3,8 mm
Net weight
328 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

PP
Aceleración
5 m/s²
Bending cycles at torsion
> 5 Mio.
Cable length
10 m
cicli di piegatura
12 Mio
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Geschirmt
No
Halogene
No
Hybrid cable
No
Irradiation crosslinked
No
Kodowanie kolorami
brown
blue
black
LABS-fri
Yes
Length of torsion
1 m
Materiał płaszcza
PUR
Number of poles
3
Number of wires
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
3.8 mm ± 0.15 mm
Průřez jádra
0,34 mm²
Rayon de courbure, min., fixe
5 x cable diameter
Rayon de courbure, mobile
10 x cable diameter
Resistance to oils
Yes
Resistant to welding beads
No
Sheath material hygroscopic
Yes
Sheathing colour
black
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No
Настраиваемая длина кабеля
No
抗水解，抗微生物
Yes
화염 내성
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2

General technical data

Coding
B-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, B-coded, Number of poles: 3, female contact, straight, plug, unshielded

Plug, right

Plug right
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
