SAIL-M12BG-4-0.3UGE
SAIL-M12BG-4-0.3UGE
Dimensioned drawing
Straight socket
SAIL-M12BG-4-0.3UGE
Pole scheme
M12 = A-coded
SAIL-M12BG-4-0.3UGE
Wiring diagram
SAIL-M12BG-4-0.3UGE
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-4-0.3UGE

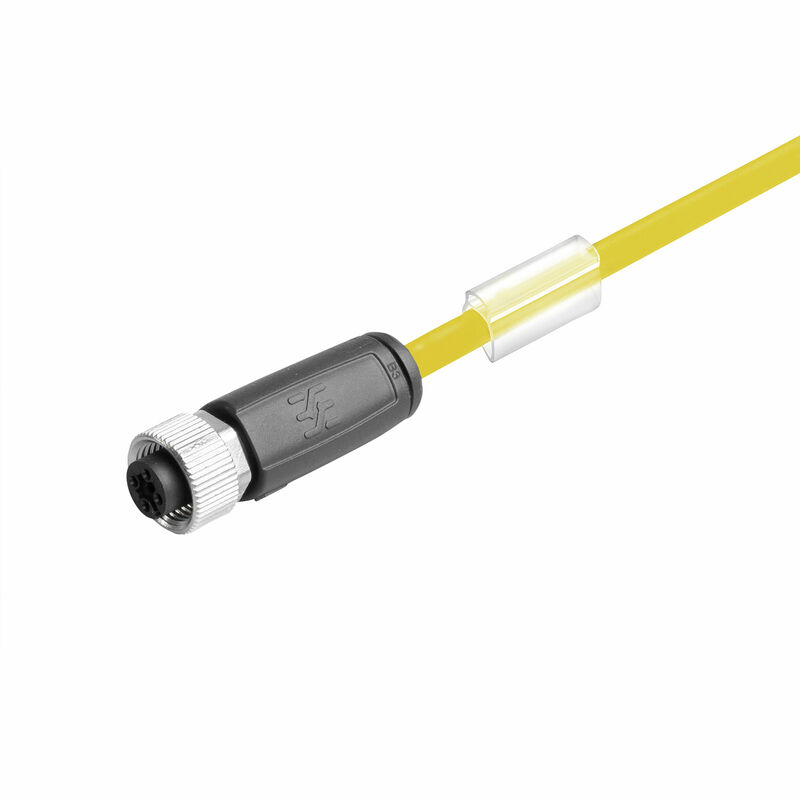

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 0.3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1092920030
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 0.3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1092920030
Type
SAIL-M12BG-4-0.3UGE
GTIN (EAN)
4050118560756
Qty.
1 items

Dimensions and weights

Net weight
17,6 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
5 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
0,3 m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.8 mm ± 0.15 mm
Počet pólů
4
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
yellow
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
360 °/m
Welding spark resistance
No

General technical data

Apertura della chiave
12 mm
Campo di temperatura custodia
-25…+85 °C
Cicli di inserimento
≥ 100
Codificación
A-coded
Connection thread
M12
Corrente nominale
4 A
Grado di lordura
3
Grado di protezione
IP65
IP66
IP67
IP68
when screwed in
LED
No
Materiale anello filettato
Diecast zinc
Materiale base della custodia
PUR
Materiale dei contatti
CuZn35PB2
ponticellato
No
Resistenza d'isolamento
108 Ω
Tensione nominale
250 V
Versione
Female socket, straight
Érintkező felület
Gold-plated
조임 토크
M12: 0.8 - 1.2 Nm

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Wtyk po lewej
connector, M12, A-coded, Number of poles: 4, female contact, straight, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
