SAIL-M12BG-4-40V
SAIL-M12BG-4-40V
SAIL-M12BG-4-40V
Detailed drawing
Straight socket
SAIL-M12BG-4-40V
Pole scheme
M12 = A-coded
SAIL-M12BG-4-40V
Wiring diagram
SAIL-M12BG-4-40V
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-4-40V

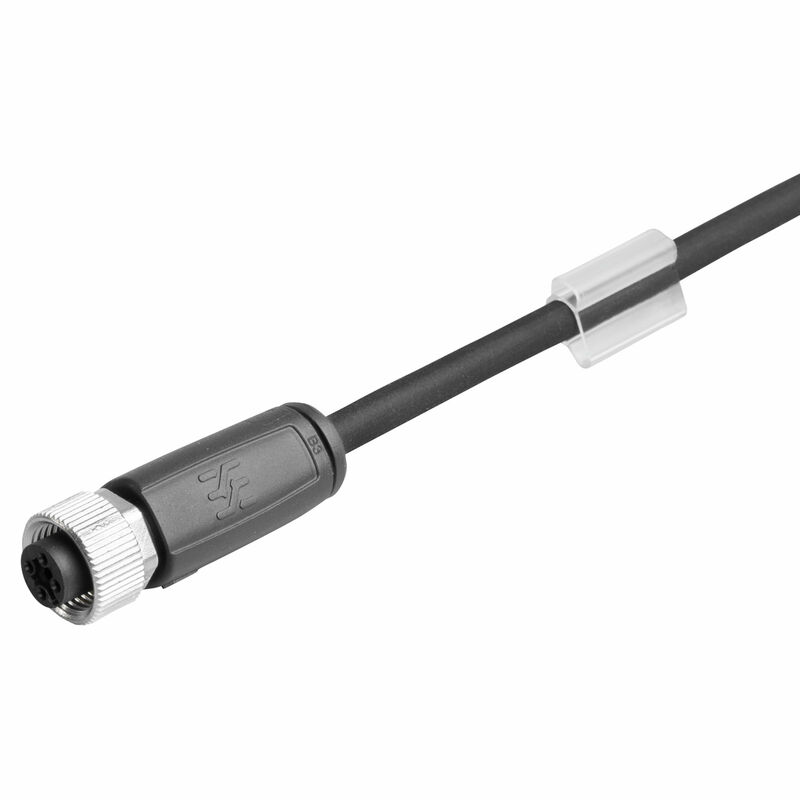

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 40 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Ürün No. 1925584000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 7 İlgili ürünler 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 40 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1925584000
Type
SAIL-M12BG-4-40V
GTIN (EAN)
4050118427622
Qty.
1  adet

Dimensions and weights

Net weight
1.668  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
40  m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34  mm²
Halogen
Yes
Insulation
PVC
Irradiation crosslinked
No
Number of poles
4
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
5.3 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0  °/m
Welding spark resistance
No

General technical data

Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4  A
Nominal voltage
250  V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250  V

General standards

Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ECLASS 10.0
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
