SAIL-M12BW-4S20U
SAIL-M12BW-4S20U
Dimensioned drawing
Angled socket
SAIL-M12BW-4S20U
Pole scheme
Socket
SAIL-M12BW-4S20U
Wiring diagram

SAIL-M12BW-4S20U

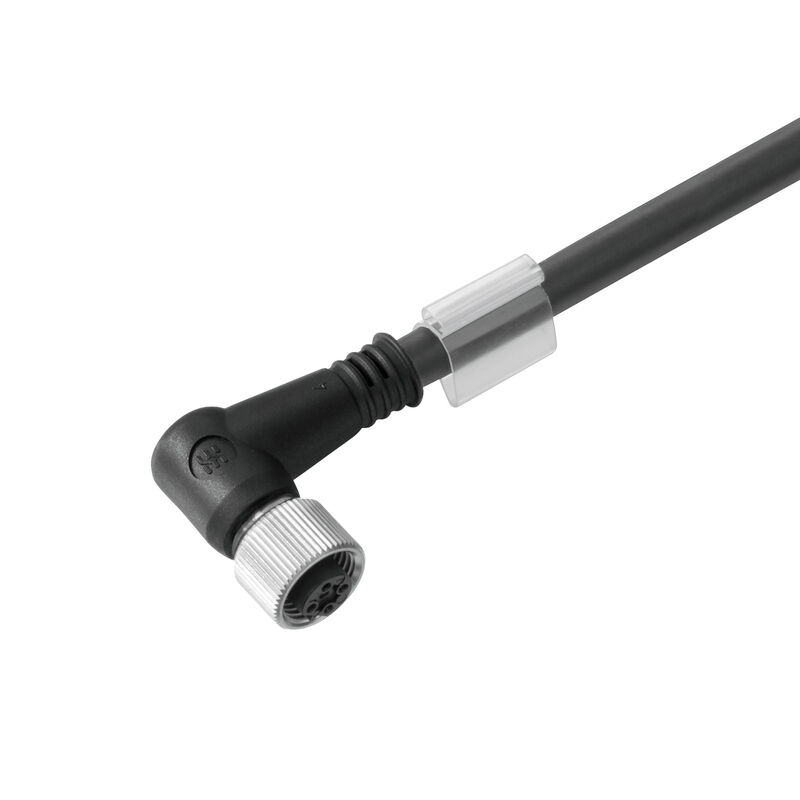

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 20 m, Socket, angled, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Item No. 1808972000
Download data sheet Engineering Support Product Downloads
Accessories 6 Related products 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 20 m, Socket, angled, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1808972000
Type
SAIL-M12BW-4S20U
GTIN (EAN)
4032248733347
Qty.
1 items

Dimensions and weights

Net weight
816 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

A következő kábeltartókhoz:
Yes
accelerazione
5 m/s²
Alogeni
No
cicli di piegatura
2 Mio
Couleur de la gaine
black
Färkodning
black
brown
white
blue
Isolamento
PP
LABS-free
Yes
Longueur du câble
20 m
Lunghezza cavo configurabile
No
Materiale della guaina
PUR
Number of poles
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
5.4 mm ± 0.2 mm
Raggio di curvatura min., fisso
5 x cable diameter
Raggio di curvatura min., mobile
10 x cable diameter
Rdzeń zgodnie z UL AWM style
10493 (80 °C / 300 V)
Resistant to welding beads
No
Resistenza alla fiamma
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sieciowane radiacyjnie
No
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Tenue aux huiles
in accordance with IEC 60811:404
Torsion resistance
0 °/m
Velocità
200 m/s
árnyékolt
Yes
Érkeresztmetszet
0,34 mm²
Стойкость к сварочным искрам
No
가수분해 및 미생물 내성
Yes

General technical data

Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Norme de connecteur
IEC 61076-2-101
Nº de certificat (cULus)
E307231

Standards

Norme de connecteur
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, female contact, angled 90°, Plastic, shielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
