Properties
| Product type | Bus line |
| Sheathing colour | violet |

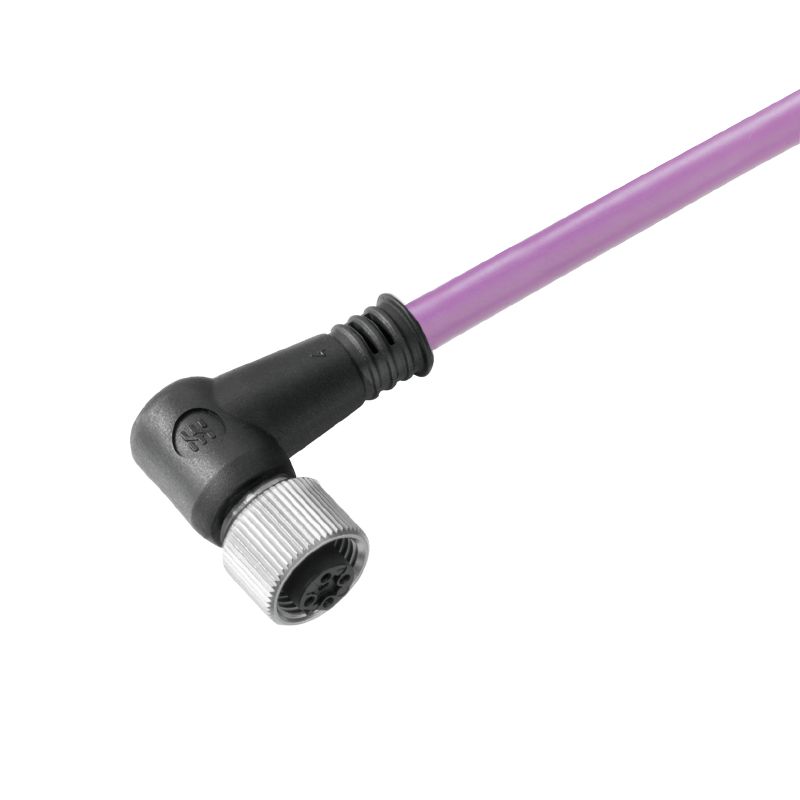

| Version | Bus line, One end without connector, M12, Number of poles: 2, 1.5 m, Socket, angled, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 1062300150 |
| Type | SAIL-M12BW-PB-1.5D |
| GTIN (EAN) | 4032248812318 |
| Qty. | 1 items |
| Net weight | 132 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Bending radius, min., moving | 12 x cable diameter |
| Bending radius, min., stationary | 7.5 x cable diameter |
| Cable length | 1.5 m |
| Colour coding |
red
green |
| Configurable cable length | No |
| Core cross-section AWG | AWG 24 |
| Halogen | No |
| Hybrid cable | No |
| Insulation | TPE |
| Irradiation crosslinked | No |
| Number of poles | 2 |
| Outer cladding in accordance with UL AWM style | 20236 (80 °C / 30 V) |
| Outside diameter | 7.8 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | violet |
| Shielded | Yes |
| Speed | 3 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -20...60 °C |
| Temperature range, stationary | -40...70 °C |
| Welding spark resistance | No |
| Wire cross section (Print/Online) | PUR 0.25 mm² / PVC 0.34 mm² |
| Coding | B-coded |
| Connection thread | M12 |
| Contact material | Ni/Au |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Temperature range of housing | -25…+80 °C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | Socket, angled |
| Rated voltage | 250 V |
| Certificate no. (cULus) | E307231 |
| Plug left | M12, B-coded, IP67, female contact, angled 90°, Plastic, shielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_156954) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1062300150) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1062300150) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1062300150&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
