SAIL-M12G-3-3.0UGE

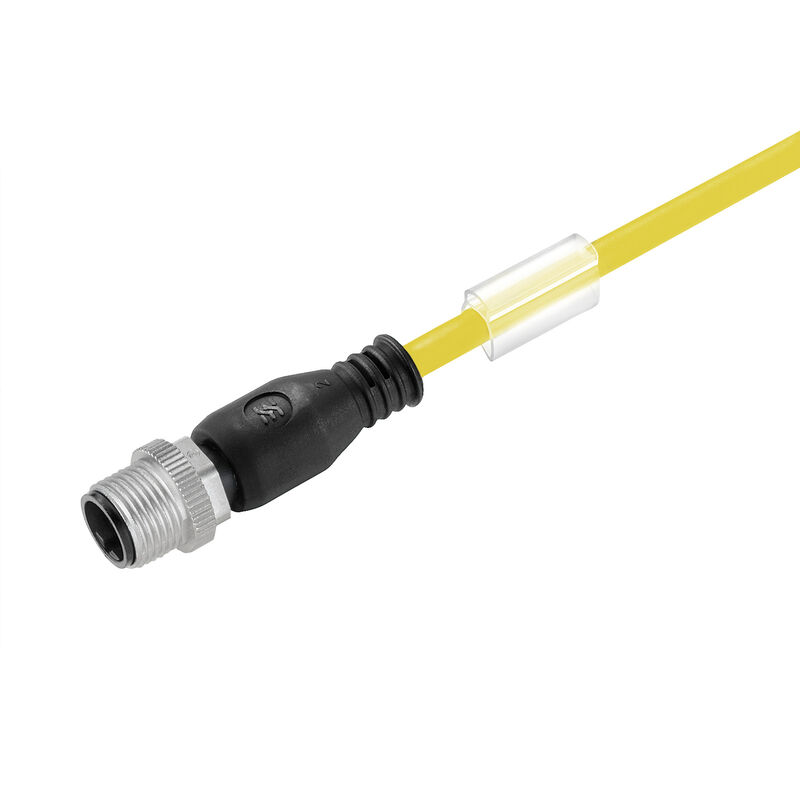

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 3 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1092980300

Properties

General ordering data

Version	Sensor/actuator line, One end without connector, M12, Number of poles : 3, 3 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1092980300
Type	SAIL-M12G-3-3.0UGE
GTIN (EAN)	4032248865680
Qty.	1 items

Dimensions and weights

Net weight

74.8 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	5 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	3 m
Colour coding	brown blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
Irradiation crosslinked	No
LABS-free	Yes
Length of torsion	1 m
Number of poles	3
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.3 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2 in accordance with IEC 60332-2-2
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	yellow
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
Welding spark resistance	No

General technical data

Coding	A-coded
Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 IP68 when screwed in IP65 IP66
Rated current	4 A
Rated voltage	250 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Brass, nickel-plated
Tightening torque	M12: 0.8 - 1.2 Nm
Version	pin, straight

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	250 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard

IEC 61076-2-101

Plug, left

Plug left

M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right

free conductor end
