Properties

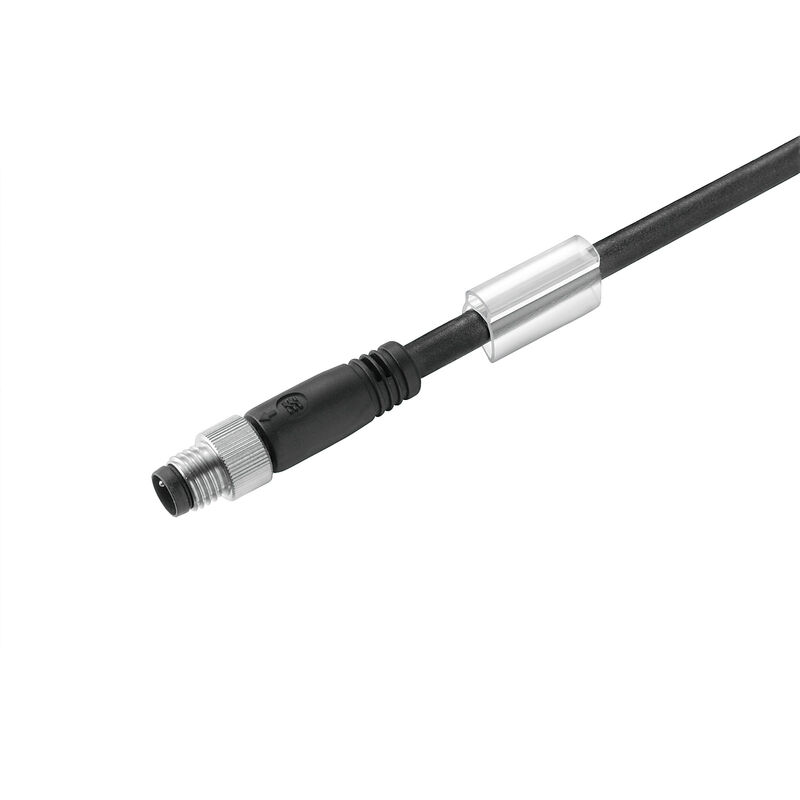

| Version | Sensor/actuator line, One end without connector, M8, Number of poles : 8, 1.5 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 1555330150 |
| Type | SAIL-M8G-8-1.5U |
| GTIN (EAN) | 4050118368888 |
| Qty. | 1 items |
| Net weight | 76 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Acceleration | 5 m/s² |
| Bending cycles | 1 mill. |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 1.5 m |
| Colour coding |
blue
red white brown green yellow grey pink |
| Configurable cable length | No |
| Core cross-section | 0.25 mm² |
| Core in accordance with UL AWM style | 10493 (80 °C / 300 V) |
| Halogen | No |
| Insulation | PP |
| Irradiation crosslinked | No |
| Number of poles | 8 |
| Outer cladding in accordance with UL AWM style | 20549 (80 °C / 300 V) |
| Outside diameter | 5.9 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Speed | 5 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -25...80 °C |
| Temperature range, stationary | -40...80 °C |
| Torsion resistance | 180 °/m |
| Welding spark resistance | No |
| Wire cross section (Print/Online) | 0.34 (4- and 5-pole)/ 0.25 (8-pole) |
| Coding | A-coded |
| Connection thread | M8 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP67
when screwed in IP65 IP66 |
| Rated current | 2 A |
| Rated voltage | 30 V |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | pin, straight |
| Insulation strength | 108 Ω |
| Rated current | 3 A (5-poles) / 1,5 A (8-poles) |
| Rated voltage | 30 V |
| Connector standard | IEC 61076-2-104 |
| Connector standard | IEC 61076-2-104 |
| Plug left | M8, IP67, male contact, straight, Plastic, unshielded |
| Plug right | free conductor end |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| ECLASS 14.0 | 27-06-03-11 |
| Approvals |   |
| ROHS | Conform |
