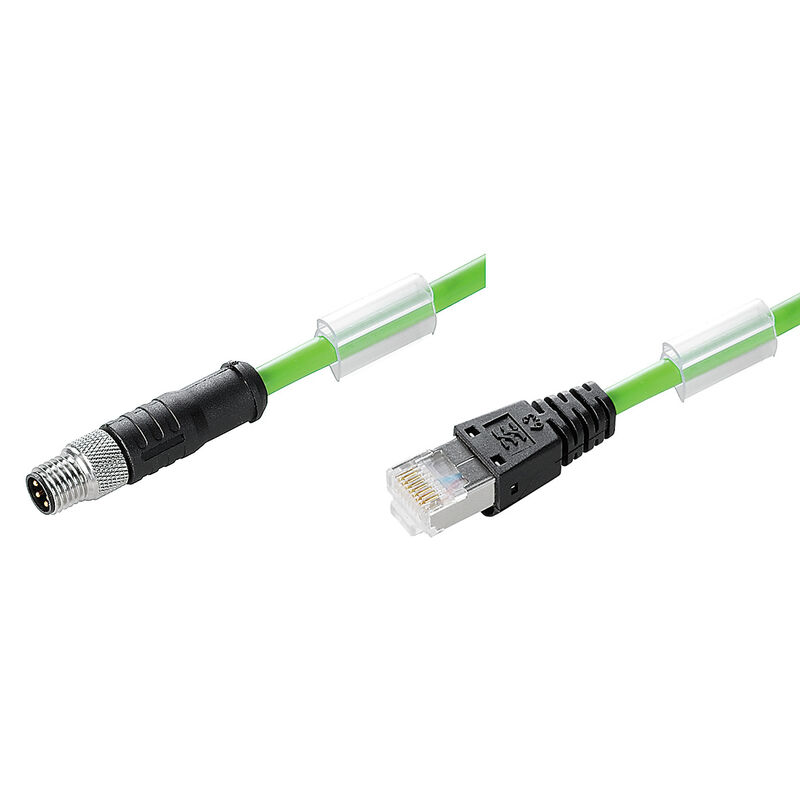

SAIL-M8GRJ45-4S25UIE

Bus line, Number of poles: 4, 25 m, pin, straight, RJ45, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Item No. 1201212500

Version	Bus line, Number of poles: 4, 25 m, pin, straight, RJ45, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.	1201212500
Type	SAIL-M8GRJ45-4S25UIE
GTIN (EAN)	4050118692754
Qty.	1 items

Net weight

754 g

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Acceleration	5 m/s²
Bending cycles	5 Mio
Bending radius, min., moving	7.5 x cable diameter
Bending radius, min., stationary	4 x cable diameter
Cable length	25 m

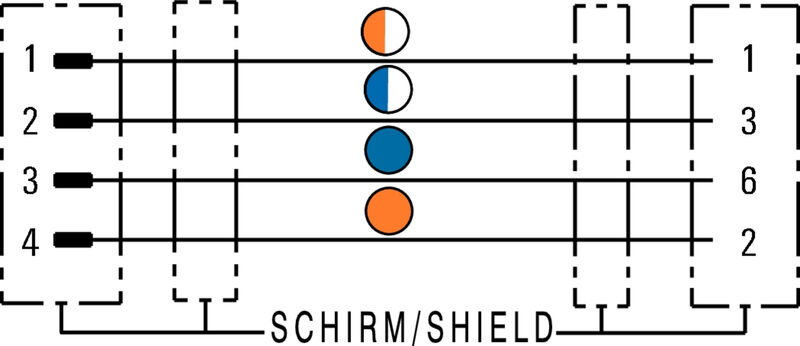

Colour coding	blue orange white / blue white / orange
Core cross-section	0.15 mm²
Halogen	No
Hybrid cable	No
Insulation	PP
Number of poles	4
Outer cladding in accordance with UL AWM style	20963 (80 °C / 30 V)
Outside diameter	4.8 mm ± 0.3 mm
Resistance to oils	Yes
Resistance to spread of flame	in accordance with IEC 60332-1-2
Sheath material	PUR
Sheathing colour	green
Shielded	Yes
Speed	180 m/s
Suitable for cable carriers	Yes
Temperature range, stationary	-40...80 °C

Coding	none
Contact surface	Gold-plated
Housing main material	PUR
jumpered	No
LED	No
Pollution severity	3
Protection degree	IP67
Rated current	4 A
Rated voltage	30 V
Temperature range of housing	-25…+80 °C
Threaded ring material	Brass, nickel-plated
Tightening torque	M8: 0.5 - 0.6 Nm
Version	pin, straight RJ45

Rated voltage

30 V

Plug left

connector, M8, Number of poles: 4, IP67, male contact, straight, shielded

Plug right

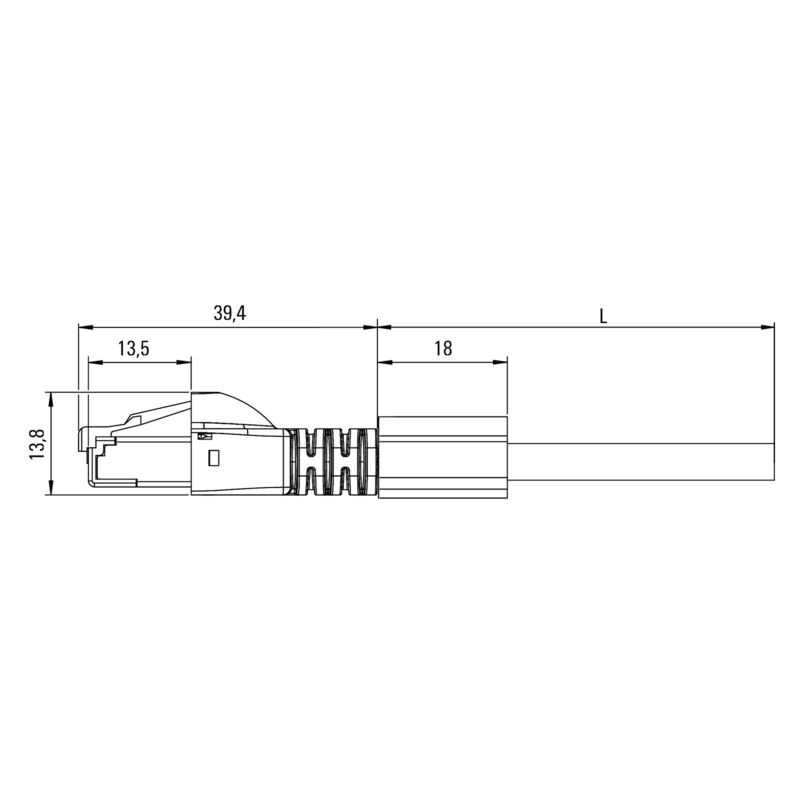

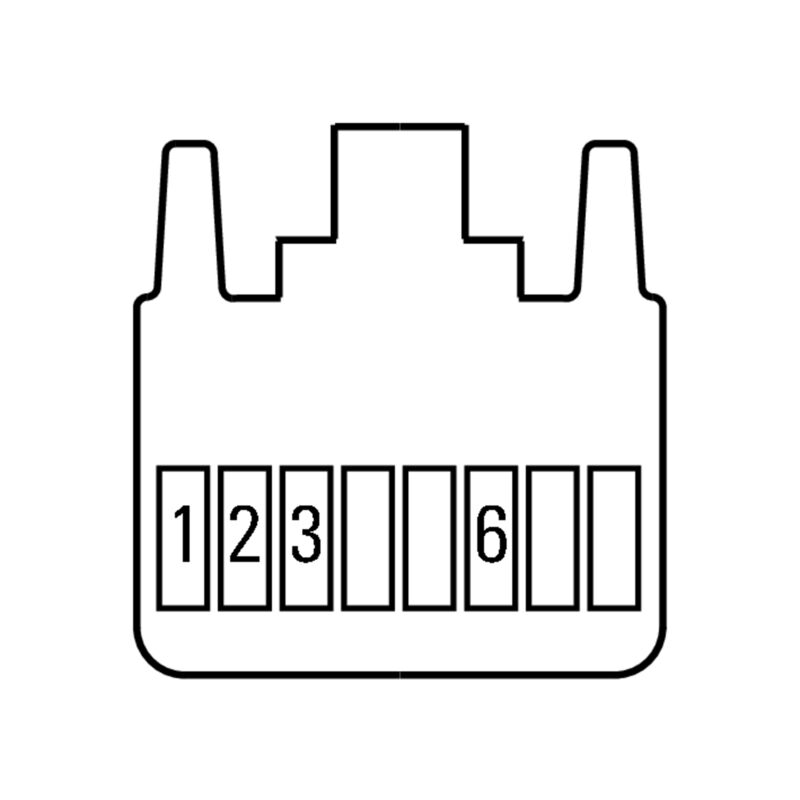

connector, RJ45, IP20, male contact, straight, shielded

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_290370)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1201212500)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
