SC 3.81/10/180F 3.2SN BK BX

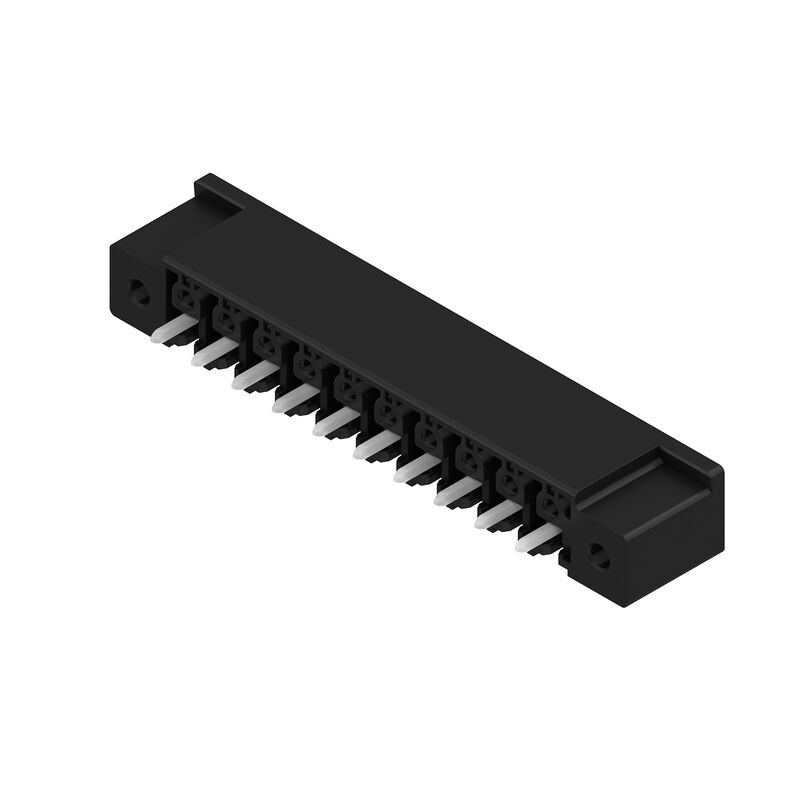

Product image
SC 3.81/10/180F 3.2SN BK BX

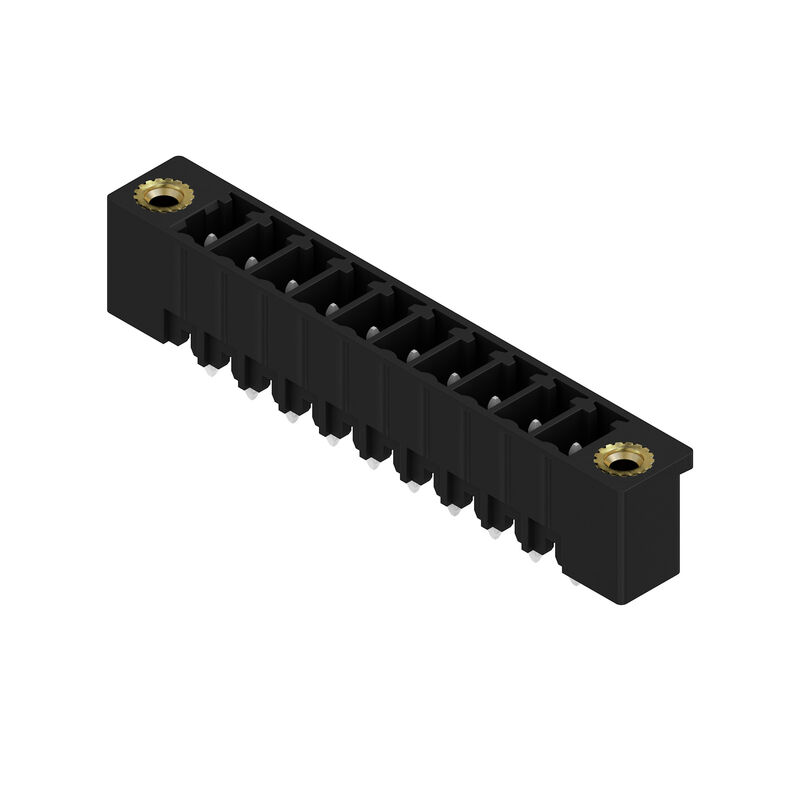

Product image
SC 3.81/10/180F 3.2SN BK BX
Dimensional drawing

SC 3.81/10/180F 3.2SN BK BX

PCB plug-in connector, male header, Flange, THT solder connection, 3.81 mm, Number of poles: 10, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box

Item No. 1793760000
Download data sheet Engineering Support Product Downloads
Příslušenství 2 Je protikusem 6 Příbuzné výrobky 38
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Flange, THT solder connection, 3.81 mm, Number of poles: 10, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
Order No.
1793760000
Type
SC 3.81/10/180F 3.2SN BK BX
GTIN (EAN)
4032248230884
Qté.
36 items
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Depth
7.1 mm
Mélység (coll)
0.28 inch
Height
12.4 mm
Height (inches)
0.488 inch
Height of lowest version
9.2 mm
Width
48.7 mm
Width (inches)
1.917 inch
Peso neto
3.54 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
308576ca-4abc-409a-b0d0-6626109a7446

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
3.81 mm
Raszter inch-ben (P)
0.15 "
180°
Number of poles
10
Number of solder pins per pole
1
Solder pin length (l)
3.2 mm
Solder pin length tolerance
0 / -0.2 mm
Dimensiones del pin de soldadura
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Diámetro de la perforación (D)
1.2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
34.29 mm
L1 in inches
1.35 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Tightening torque:
      • min.:
        0.1 Nm
      • max.:
        0.15 Nm
    • Recommended screw:
      • Part number:
        1610740000

Material data

Materiales aislantes
PA GF
Color
black
Farbtabelle (ähnlich)
RAL 9011
Skupina izolačního materiálu
II
Kúszóútképzési összehasonlítási szám (CTI)
≥ 550
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
17.5 A
Corriente nominal, número de polos máx. (Tu=20 °C)
17.1 A
Rated current, min. number of poles (Tu=40°C)
17.5 A
Rated current, max. number of poles (Tu=40°C)
17.1 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
160 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
2.5 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated current (Use group B / CSA)
11 A
Rated current (Use group D / CSA)
10 A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Intensidad nominal (Use Group B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
350 mm
VPE width
138 mm
VPE height
33 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
