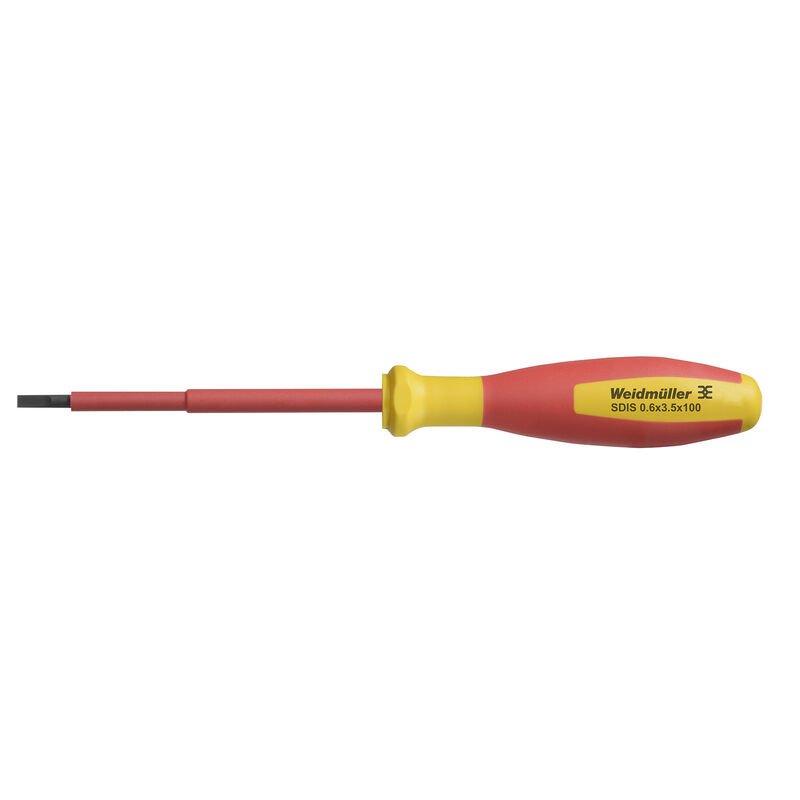

SDIS 0.6X3.5X100

Screwdriver, Blade width (B): 3.5 mm, Blade length: 100 mm, Blade thickness (A): 0.6 mm

Item No. 2749810000

Properties

General ordering data

Version	Screwdriver, Blade width (B): 3.5 mm, Blade length: 100 mm, Blade thickness (A): 0.6 mm
Order No.	2749810000
Type	SDIS 0.6X3.5X100
GTIN (EAN)	4050118897012
Qty.	1 items

Dimensions and weights

Length	205 mm
Length (inches)	8.071 inch
Net weight	34 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	No SVHC above 0.1 wt%

Technical data

Description of article	VDE-insulated screwdriver with slotted blade 0.6x3.5x100
Version	straight

Screwing tools

Blade length	100 mm
Blade thickness (A)	0.6 mm
Blade type	B
Blade width (B)	3.5 mm
Form	Slotted

Downloads

Catalogues

[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000158
ETIM 7.0	EC000158
ETIM 8.0	EC000158
ETIM 9.0	EC000158
ETIM 10.0	EC000158
ECLASS 9.0	21-04-04-07
ECLASS 9.1	21-04-04-07
ECLASS 10.0	21-04-04-07
ECLASS 11.0	21-04-04-07
ECLASS 12.0	21-04-04-07
ECLASS 13.0	21-04-04-07
ECLASS 14.0	21-04-04-07
ECLASS 15.0	21-04-04-07

Approvals

![VDE](/picture/VDE.gif)
