Properties

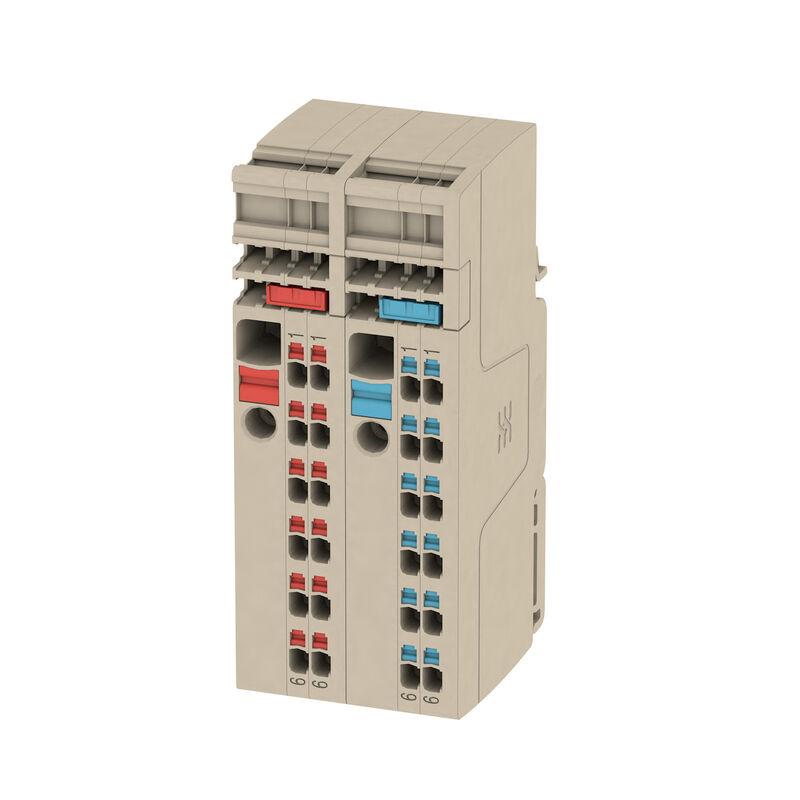

| Version | Modular distribution terminals, PUSH IN, 6 mm², 500 V, 35 A, dark beige |
| Order No. | 2506090000 |
| Type | SET AAP11 6/1.5/12C |
| GTIN (EAN) | 4050118520873 |
| Qty. | 1 items |
| Depth | 47 mm |
| Depth (inches) | 1.85 inch |
| Depth including DIN rail | 48 mm |
| Height | 85.5 mm |
| Height (inches) | 3.366 inch |
| Width | 35 mm |
| Width (inches) | 1.378 inch |
| Net weight | 73.547 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | red |
| UL 94 flammability rating | V-0 |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 2 G D |
| End cover plate required | No |
| Number of potentials | 2 |
| Number of levels | 1 |
| Number of clamping points per level | 26 |
| Number of potentials per tier | 2 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Rail |
| Open sides | right |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| Blade size, additional connection | 0.4 x 2.0 mm |
| Clamping range, further connection, max. | 1.5 mm² |
| Clamping range, further connection, min. | 0.14 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0.5 mm² |
| Conductor cross-section, flexible, further connection, min. | 0.5 mm² |
| Connection direction | top |
| Connection type, additional connection | PUSH IN |
| Cross-section for connected wire, AWG, additional connection, max. | AWG 14 |
| Cross-section for connected wire, AWG, additional connection, min. | AWG 26 |
| Cross-section for connected wire, flexible, further connection, max. | 1.5 mm² |
| Cross-section for connected wire, multi-core, further connection, max. | 1.5 mm² |
| Cross-section for connected wire, multi-core, further connection, min. | 0.5 mm² |
| Cross-section for connected wire, solid-core, further connection, max. | 1.5 mm² |
| Cross-section for connected wire, solid-core, further connection, min. | 0.5 mm² |
| Rated cross-section, further connection | 1.5 mm² |
| Stripping length , additional connection | 8 mm |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.34 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 1 |
| Stripping length | 12 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 1.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 6 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 35 A |
| Current at maximum wires | 35 A |
| Standards | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Approval/Certificate/Document of Conformity |
[DE PT0205 20180316 013 ISSUE01.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_57958)
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39866) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2506090000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2506090000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2506090000&norm=0) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual AXC 1.5-16](https://mdcop.weidmueller.com/mediadelivery/asset/900_229201) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001284 |
| ETIM 7.0 | EC001284 |
| ETIM 8.0 | EC001284 |
| ETIM 9.0 | EC001284 |
| ECLASS 9.0 | 27-14-11-06 |
| ECLASS 9.1 | 27-14-11-06 |
| ECLASS 10.0 | 27-14-11-06 |
| ECLASS 11.0 | 27-14-11-06 |
| ECLASS 12.0 | 27-14-11-06 |
| ECLASS 13.0 | 27-14-11-06 |
| ECLASS 14.0 | 27-14-11-06 |
| Approvals |   |
| ROHS | Conform |
