Properties

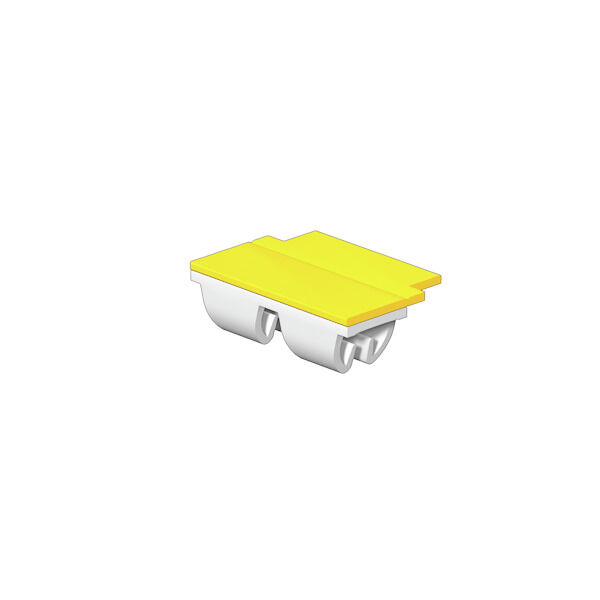

| Version | Conductor and cable markers, 1.8 - 2.5 mm, 12 x 4.6 mm, yellow |
| Order No. | 2719120000 |
| Type | SFM 2/12 1.8-2.5 MM GE |
| GTIN (EAN) | 4050118888157 |
| Qty. | 1,400 items |
| Height | 12 mm |
| Height (inches) | 0.472 inch |
| Width | 4.6 mm |
| Width (inches) | 0.181 inch |
| Net weight | 0.212 g |
| REACH SVHC | / |
| Colour | yellow |
| compatible printer | [THM MULTIMARK](~/p/2599430000) |
| Halogen | No |
| Material |
PC-ABS
TPU |

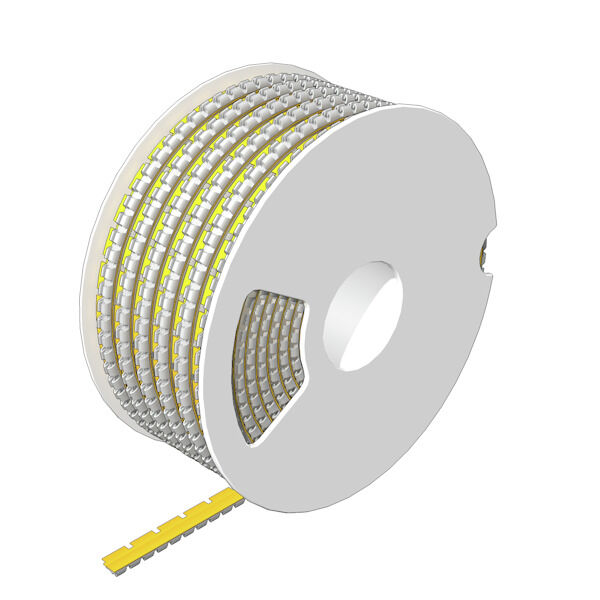

| Number per roll | 1400 |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Size of labelling field | 3.3 x 9.5 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Version | with snap-in foot |
| Width | 4.6 mm |
| Conductor cross-section, max. | 1.5 mm² |
| Conductor cross-section, min. | 0.75 mm² |
| Conductor O.D. | 1.8 - 2.5 mm |
| Conductor O.D., max. | 2.5 mm |
| Conductor O.D., min. | 1.8 mm |
| Cross-section for connected wire | 0.75 - 1.5 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304936) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
