SFX-DT 10/60 S MC SDR
SFX-DT 10/60 S MC SDR

SFX-DT 10/60 S MC SDR

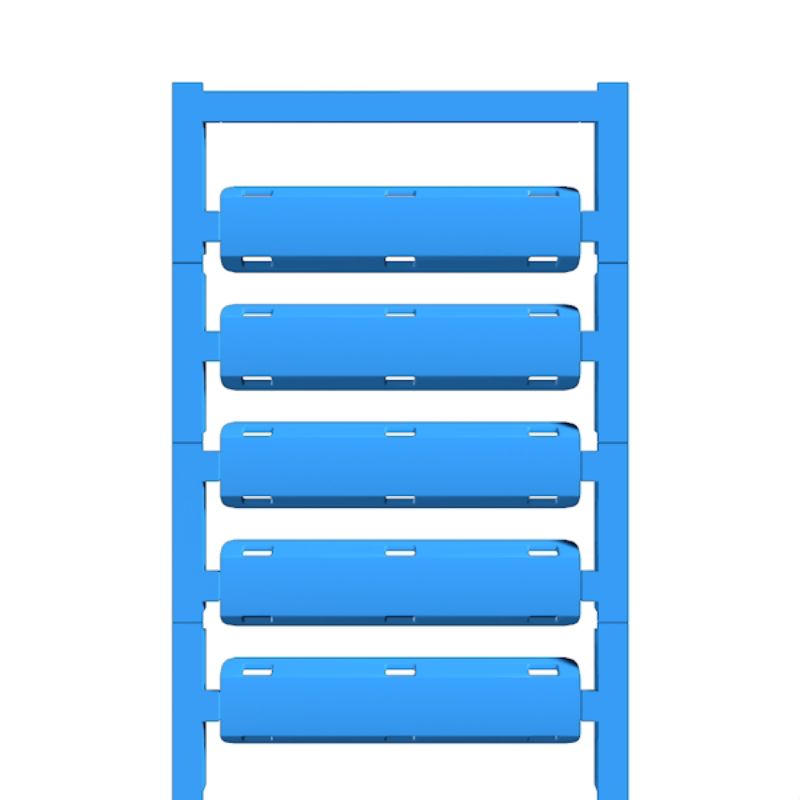

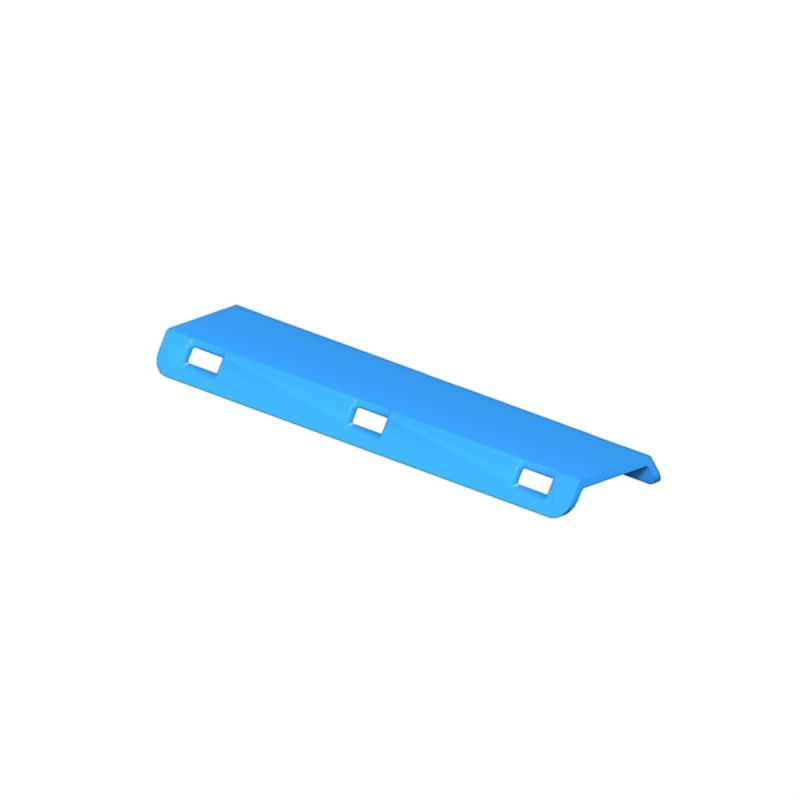

Conductor and cable markers, 7 - 40 mm, 60 x 10 mm, blue

Item No. 2622420000
Download data sheet Product Downloads Engineering Support
Related products 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 7 - 40 mm, 60 x 10 mm, blue
Order No.
2622420000
Type
SFX-DT 10/60 S MC SDR
GTIN (EAN)
4050118623444
Qty.
10  items

Dimensions and weights

Depth
1  mm
Depth (inches)
0.039  inch
Height
60  mm
Height (inches)
2.362  inch
Width
10  mm
Width (inches)
0.394  inch
Net weight
1.6  g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.020 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
blue
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Detectible in accordance with Rondotest
4.7 mm Al
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100  °C
Operating temperature range, min.
-40  °C
Printed characters
To customer specification
Recommended industries
Food processing industry
Size of labelling field
60 x 9.5 mm
UL 94 flammability rating
HB
Version
Installation with cable ties
Width
10  mm

Conductor and cable markers

Conductor cross-section, max.
500  mm²
Conductor cross-section, min.
16  mm²
Conductor O.D.
7 - 40 mm
Conductor O.D., max.
40  mm
Conductor O.D., min.
7  mm
Cross-section for connected wire
16 - 500 mm²
Halogen
No

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
