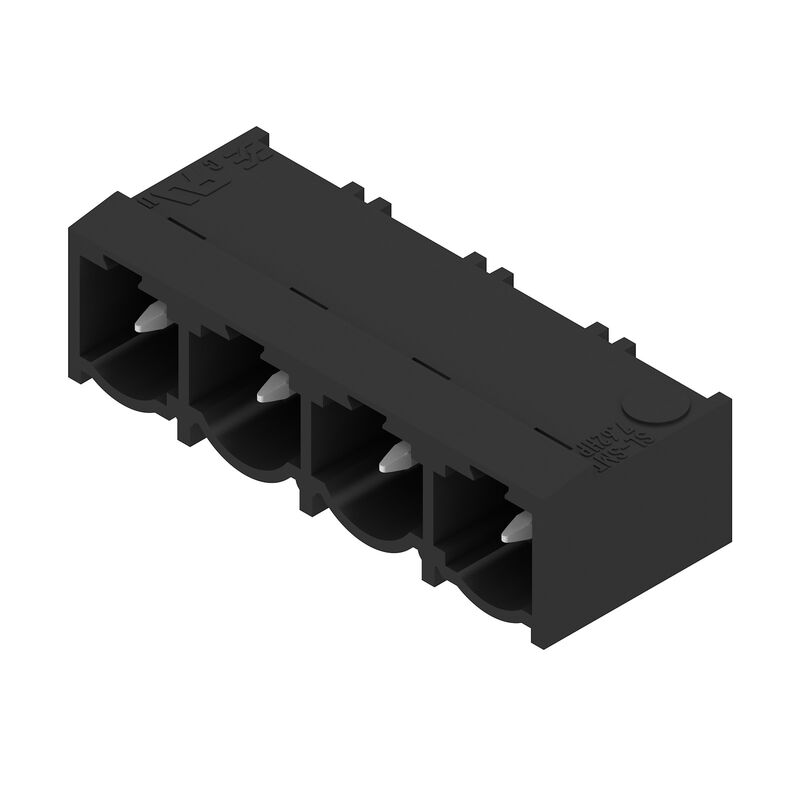

SL-SMT 7.62HP/04/90G 2.1SN BK BX
Product image
SL-SMT 7.62HP/04/90G 2.1SN BK BX
Product image
SL-SMT 7.62HP/04/90G 2.1SN BK BX
Dimensional drawing

SL-SMT 7.62HP/04/90G 2.1SN BK BX

Preliminary product data!

PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, Number of poles: 4, 90°, Solder pin length (l): 2.1 mm, tinned, black, Box

Item No. 3040770000
Download data sheet Product Downloads
Is counterpart of 4 Related products 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, Number of poles: 4, 90°, Solder pin length (l): 2.1 mm, tinned, black, Box
Best.-Nr.
3040770000
Art
SL-SMT 7.62HP/04/90G 2.1SN BK BX
GTIN (EAN)
4099987011402
Qty.
100 items
Product data
IEC: 630 V / 29 A
UL: 300 V / 20 A
Packaging
Box

Dimensions and weights

Tiefe
11,8 mm
Depth (inches)
0,465 inch
Höhe
11,6 mm
Height (inches)
0,457 inch
Height of lowest version
8,4 mm
Breite
29,66 mm
Width (inches)
1,168 inch
Net weight
1,904 g

Temperatures

Continuous operating temp., min.
-25 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Produktfamilie
OMNIMATE Power - series BL/SL 7.62HP
Anschlussart
Board connection
Montage auf der Leiterplatte
THT solder connection
Raster in mm (P)
7,62 mm
Raster in Zoll (P)
0,3 "
Abgangswinkel
90°
Polzahl
4
Anzahl Lötstifte pro Pol
1
Lötstiftlänge (l)
2,1 mm
Lötstift-Abmessungen
1.0 x 1.0 mm
Lötstift-Abmessungen=d Toleranz
+0,01 / -0,03 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22,86 mm
L1 in inches
0,9 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP10
Can be coded
Yes
Plugging cycles
25

Material data

Insulating material
LCP GF
Farbe
black
Таблица цветов (аналогич.)
RAL 9011
Группа изоляционного материала
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
접점 재질
Cu-alloy
Superficie dei contatti
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Märkström, min. antal poler (Tu=20°C)
29 A
Номинальный ток, макс. кол-во контактов (Tu = 20 °C)
29 A
Номинальный ток, мин. кол-во контактов (Tu = 40 °C)
25 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
6 kV
Rövid idejű határáram ellenállás
3 x 1s with 180 A
Distancia mín.
6,5 mm
Ligne de fuite, min.
8,1 mm

Rated data acc. to CSA

Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group C / CSA)
300 V
Nennspannung (Use group D / CSA)
600 V
Nennstrom (Use group B / CSA)
20 A
Nennstrom (Use group C / CSA)
20 A
Nennstrom (Use group D / CSA)
5 A

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Nennspannung (Use group C / UL 1059]
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
20 A
Nennstrom (Use group C / UL 1059)
20 A
Nennstrom (Use group D / UL 1059)
5 A
Clearance distance, min.
6,5 mm
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.
Kriechstrecke, min.
11,2 mm

Packing

Verpackung
Box
VPE Länge
227 mm
VPE Breite
111 mm
VPE Höhe
45 mm

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
