Properties

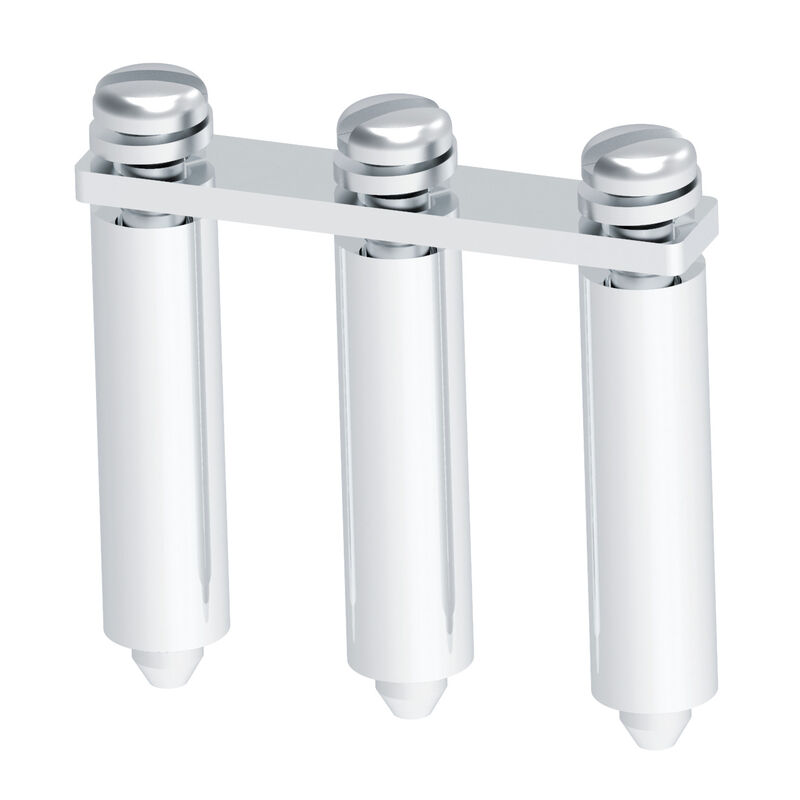

| Version | Cross-connector (terminal), when screwed in, black, grey, 41 A, Number of poles: 3, Pitch in mm (P): 9.00, Insulated: No, Width: 23 mm |
| Order No. | 2615040000 |
| Type | SQV 3/3 |
| GTIN (EAN) | 4050118653939 |
| Qty. | 50 items |
| Depth | 22.7 mm |
| Depth (inches) | 0.894 inch |
| Height | 4.3 mm |
| Height (inches) | 0.169 inch |
| Width | 23 mm |
| Width (inches) | 0.906 inch |
| Net weight | 0.76 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA |
| Colour |
black
grey |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Rated current, multi-pole | 41 A |
| Type | Cross-connector |
| Pitch in mm (P) | 9 mm |
| Number of poles | 3 |
| Rated current | 41 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205557) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2615040000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2615040000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Is accessory of
-
Item No.:2614930000Packaging unit:100 PC
Stud terminal, Threaded stud connection, grey, 6 mm², 41 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Polyamide
Terminal BlocksUniversal rangeStud technologySRL-Series6 mm²
