Properties
| Version | Socket (terminal), Plug-in depth: 11.1 mm, Depth: 39.8 mm |
| Order No. | 1312550000 |

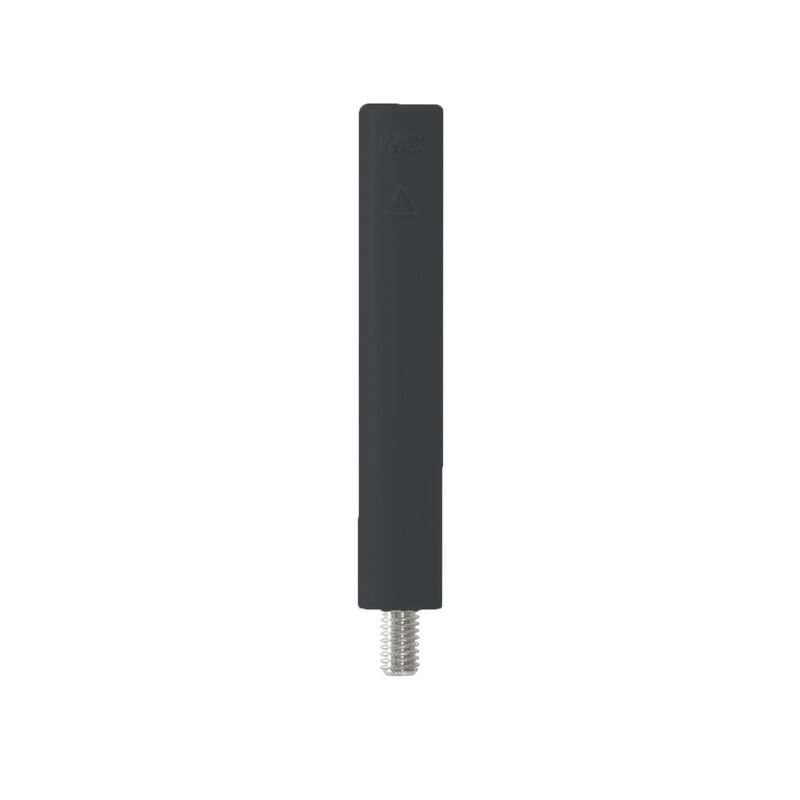

| Type | STB 36.8/IH/SW WTL6/1 |
| GTIN (EAN) | 4050118181210 |
| Qty. | 50 items |
| Depth | 39.8 mm |
| Depth (inches) | 1.567 inch |
| Height | 36.8 mm |
| Height (inches) | 1.449 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Diameter | 6 mm |
| Net weight | 4.902 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | dce63e23-eea1-4eaa-9071-1c98fc8fa2ea |
| Material | Polyamide 66 |
| Colour | black |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Installation advice | Direct mounting |
| Type of mounting | when screwed in |
| Diameter | 6 mm |
| Plug-in depth | 11.1 mm |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 100 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_51824) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1312550000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1312550000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
