Properties

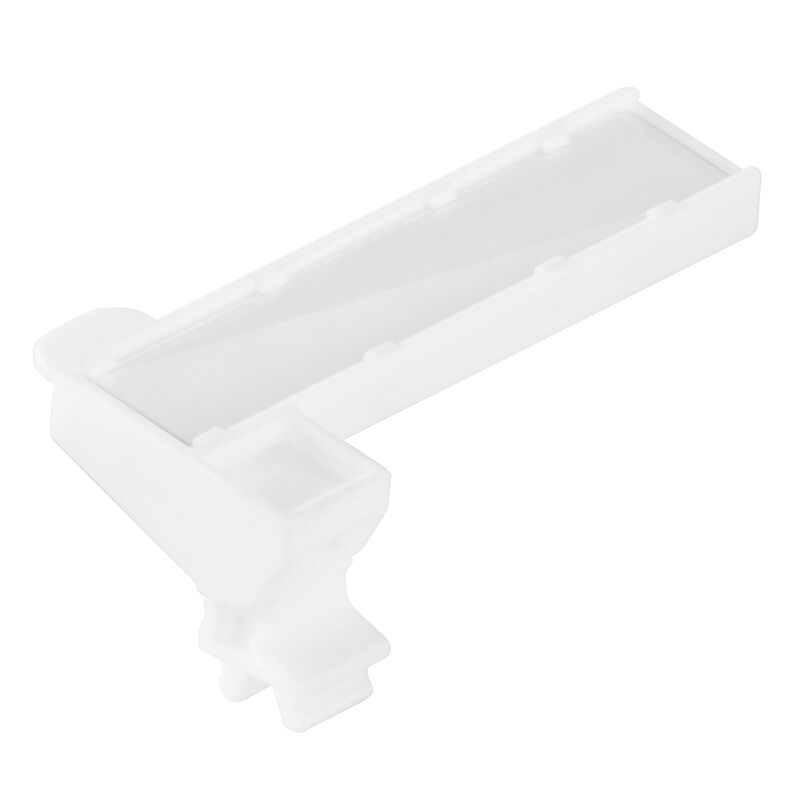

| Version | Terminal markers, Protective cap, 15 x 6.3 mm, Transparent |
| Order No. | 1636520000 |
| Type | STR 15 F. ZGB 15 |
| GTIN (EAN) | 4008190287498 |
| Qty. | 20 items |
| Height | 15 mm |
| Height (inches) | 0.591 inch |
| Width | 6.3 mm |
| Width (inches) | 0.248 inch |
| Net weight | 0.09 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Transparent |
| Material | Polyester, PVC-free |
| Number of markers per combination | 1 Component part = Protective cap |
| Number of markers per packaging unit |
|
| Number per sheet | 20 |
| Width | 6.3 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62437) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1636520000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1636520000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Is accessory of
-
Item No.:1636530000Packaging unit:20 PC
Terminal markers, Terminal marker, 15 x 7 mm, Pitch in mm (P): 5.00 Weidmueller, white
MarkersTerminal markersRelated markersTag holderZGB pivotable group tag holder
