Properties
| Version | TERMSERIES, Cross-connector |
| Order No. | 2556460000 |

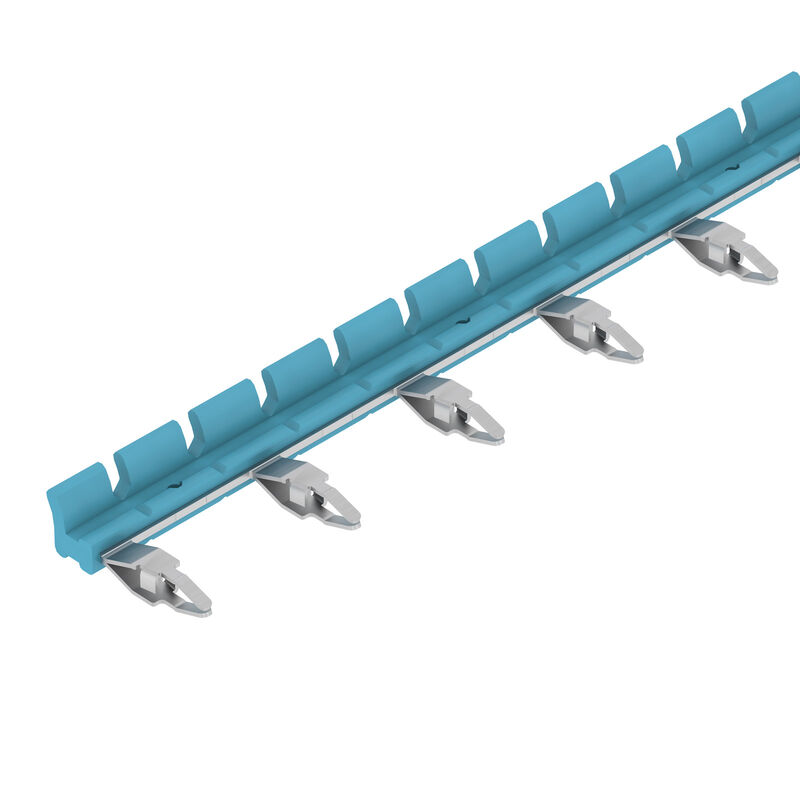

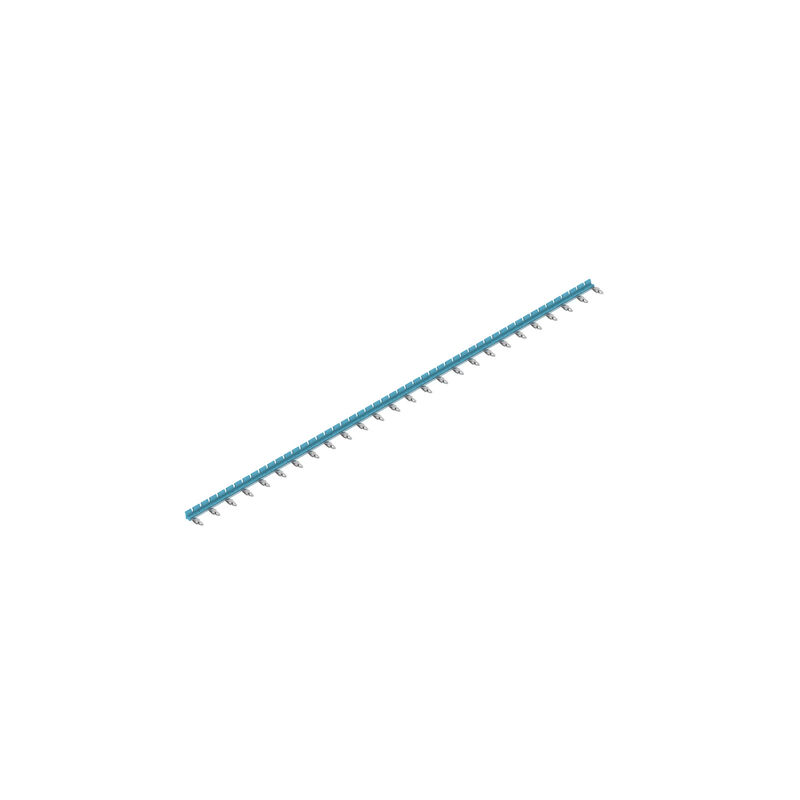

| Type | TCC 12.8/26 BL |
| GTIN (EAN) | 4050118566970 |
| Qty. | 10 items |
| Depth | 4.8 mm |
| Depth (inches) | 0.189 inch |
| Height | 13.1 mm |
| Height (inches) | 0.516 inch |
| Width | 323.4 mm |
| Width (inches) | 12.732 inch |
| Net weight | 9.7 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...60 °C |
| REACH SVHC | / |
| Rated voltage | 300 V |
| Rated current | 17.5 A |
| Insulation | Yes |
| Touch-safe protection | Yes |
| Colour | blue |
| Number of cross-connected terminals | 16 |
| Number of poles | 26 |
| Pitch in mm (P) | 12.8 mm |
| Type of mounting | Plugged |
| Version | can be cut to length |
| Rated current (UL) | 10 A |
| Version | can be cut to length |
| Colour | blue |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pitch in mm (P) | 12.8 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87946) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2556460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2556460000) |
| User Documentation |
[Beipackzettel / Package Insert](https://mdcop.weidmueller.com/mediadelivery/asset/900_93136)
[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93137) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ROHS | Conform |
