Properties

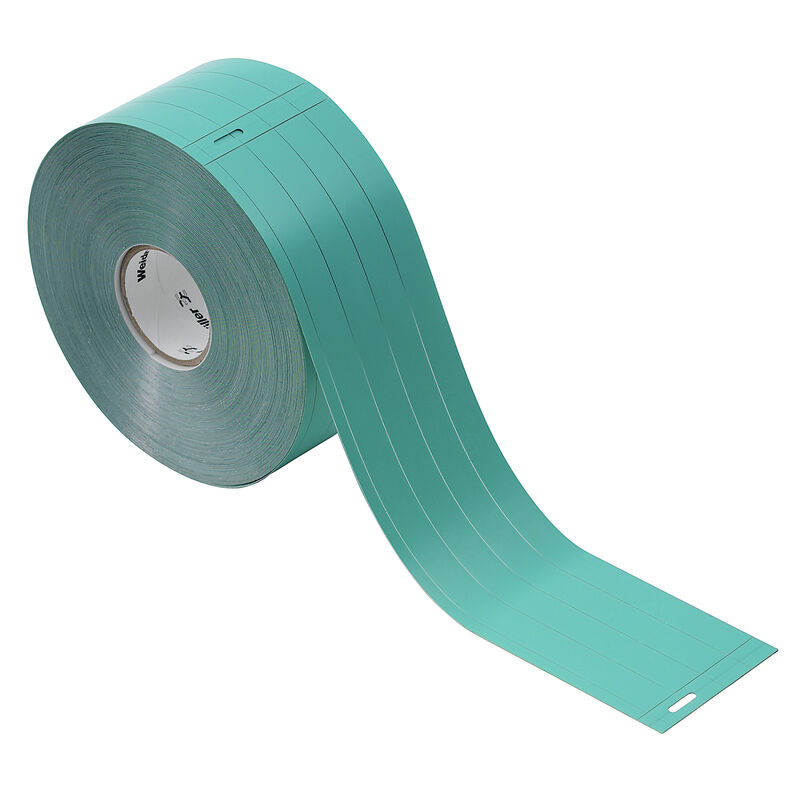

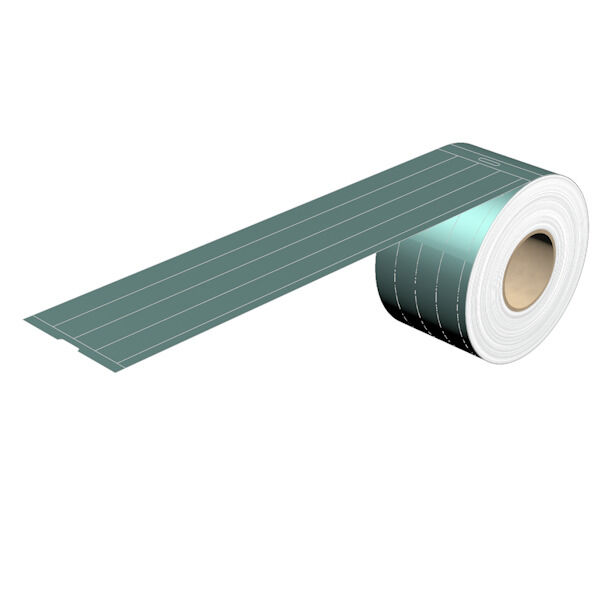

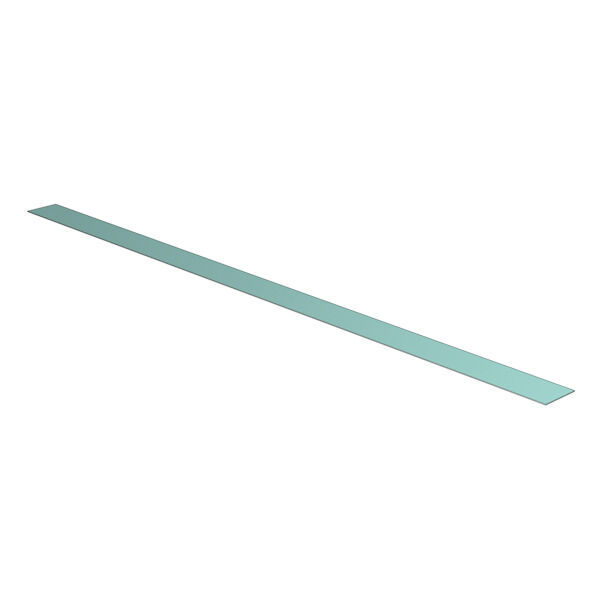

| Version | THM, Device markers, 251 x 13.5 mm, Siemens, Turquoise |
| Order No. | 1161710000 |
| Type | THM ET S7 400 TU |
| GTIN (EAN) | 4032248950683 |
| Qty. | 1 items |
| Depth | 0.08 mm |
| Depth (inches) | 0.003 inch |
| Height | 251 mm |
| Height (inches) | 9.882 inch |
| Width | 13.5 mm |
| Width (inches) | 0.531 inch |
| Net weight | 625 g |
| Operating temperature range | -50...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer | Siemens |
| Approval acc. to UL 969 | No |
| Colour | Turquoise |
| compatible printer |
[THM MMP](~/p/2430920000)
[THM MULTIMARK](~/p/2599430000) [THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polypropylene |
| Number of markers per combination | 1 Label reel = Device markers |
| Number of markers per packaging unit |
|
| Number per roll | 500 |
| Operating temperature range | -50...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -50 °C |
| Printing method | Thermal transfer |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 13.5 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1161710000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
