TOPL 24VDC 300VDC1A
Similar to illustration
TOPL 24VDC 300VDC1A

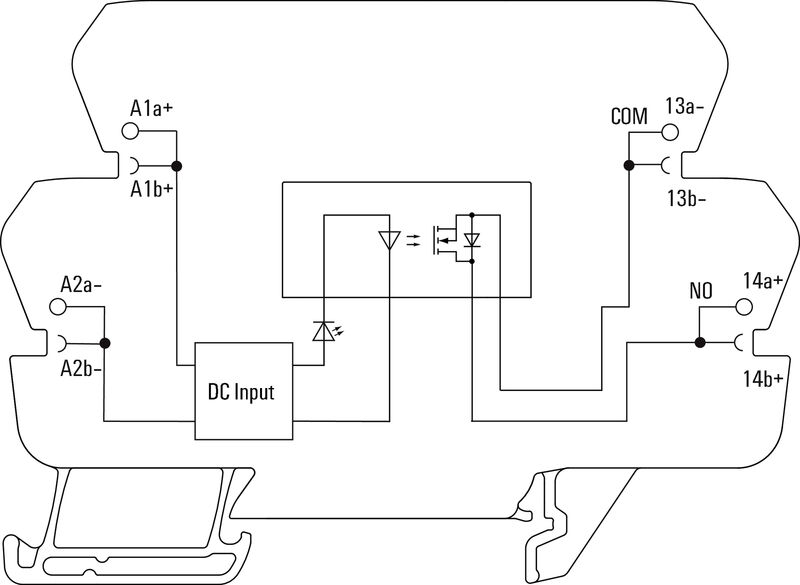

Wiring diagram
TOPL 24VDC 300VDC1A
Dimensional drawing

TOPL 24VDC 300VDC1A

This product is not yet available.

Rated control voltage: 24 V DC ±20 % , PUSH IN

Item No. 2773660000
Download data sheet Engineering Support Product Downloads
Accessories 28
General ordering data Dimensions and weights Temperatures Rated data UL Control side Load side General data Insulation coordination Connection data Classifications

General ordering data

Version
Rated control voltage: 24 V DC ±20 % , PUSH IN
Order No.
2773660000
Type
TOPL 24VDC 300VDC1A
GTIN (EAN)
4064675037439
Qty.
10 items

Dimensions and weights

Depth
62.5 mm
Depth (inches)
2.461 inch
Height
89.4 mm
Height (inches)
3.52 inch
Width
6.4 mm
Width (inches)
0.252 inch
Net weight
28 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…60 °C
Humidity
5-85% relative humidity, Tu = 40°C, without condensation

Rated data UL

Ambient temperature (operational), max.
60 °C
Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Pollution severity level
2

Control side

Rated control voltage
24 V DC ±20 %
Rated control voltage (control input)
24 V DC ±20 %
Nominal control current
18 mA at 24 V AC
Status indicator
Green LED
Protective circuit
Suppressor diode

Load side

Rated switching current
1 A
Switch-on delay
90 µs
Switch-off delay
<200 µs
Voltage drop at max. load
≤ 0.5 V
Short-circuit-proof
No
Protective circuit, load side
Free-wheeling diode
Suppressor diode
Contact type
NO contact (MOS-FET)

General data

Operating altitude
≤ 2000 m
above sea level
Mounting rail
TS 35
Test button available
No
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    V-2
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
5 kVeff / 1min
Type of isolation at input and output
reinforced insulation
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Protection degree
IP20

Connection data

Stripping length
9 mm
Wire connection method
PUSH IN
Stripping length, rated connection
9 mm
Clamping range, rated connection
1.5 mm²
Clamping range, min.
0.14 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
1.5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0.35 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm²
Blade size
0.6 x 3.5 mm

Classifications

ETIM 8.0
EC001504
ETIM 9.0
EC001504
ETIM 10.0
EC001504
ECLASS 14.0
27-37-16-04
ECLASS 15.0
27-37-16-04
