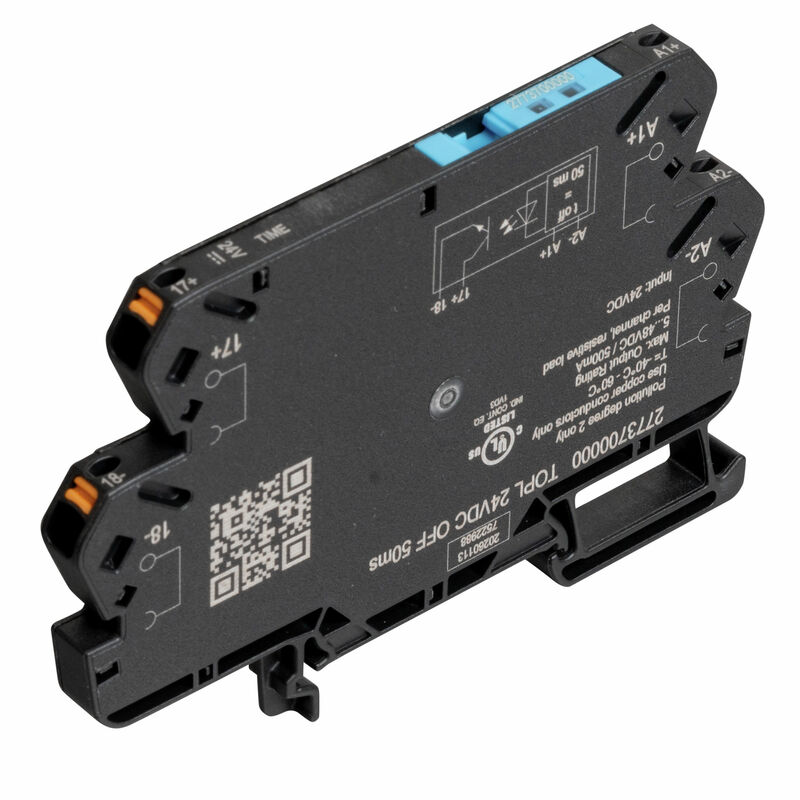

TERMSERIES-compact, Solid-state relay, Rated control voltage: 24 V DC ±10 % , Rated switching voltage: 5...48 V DC, Continuous current: 500 mA, PUSH IN

Item No. 2773700000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 27 Related products 2
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Control side Load side General data Insulation coordination Connection data Classifications

General ordering data

Version
TERMSERIES-compact, Solid-state relay, Rated control voltage: 24 V DC ±10 % , Rated switching voltage: 5...48 V DC, Continuous current: 500 mA, PUSH IN
Order No.
2773700000
Type
TOPL 24VDC OFF 50MS
GTIN (EAN)
4064675037477
Qty.
10 items

Dimensions and weights

Depth
62.4 mm
Depth (inches)
2.457 inch
Height
89.4 mm
Height (inches)
3.52 inch
Width
6.4 mm
Width (inches)
0.252 inch
Net weight
25 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…60 °C
Humidity
5-85% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1

Control side

Rated control voltage
24 V DC ±10 %
Power rating
45 mW
Status indicator
Green LED
Protective circuit
Suppressor diode
Min. pulse duration
2 ms

Load side

Rated switching voltage
5...48 V DC
Continuous current
0.5 A
Max. switching voltage, DC
48 V
Inrush current
2 ms, max.240 mA
Switch-on delay
<1 ms
Switch-off delay
50 ms
Contact type
1 NO contact (Bipolar transistor)

General data

Operating altitude
≤ 2000 m
Suitable for front mounting
No
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Open sides
closed
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    V-2
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
4 kVeff / 1 Min.
Dielectric strength of open contact
1 kVeff / 1 min
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV
6 kV (1.2/50 µs)
Protection degree
IP20

Connection data

Wire connection method
PUSH IN
Stripping length, rated connection
9 mm
Clamping range, rated connection
1.5 mm²
Clamping range, min.
0.14 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
1.5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0.35 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm²
Blade size
0.6 x 3.5 mm

Classifications

ETIM 8.0
EC001439
ETIM 9.0
EC001439
ETIM 10.0
EC001439
ECLASS 14.0
27-37-16-05
ECLASS 15.0
27-37-16-05
