Properties
| Version | TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection |
| Order No. | 1391680000 |

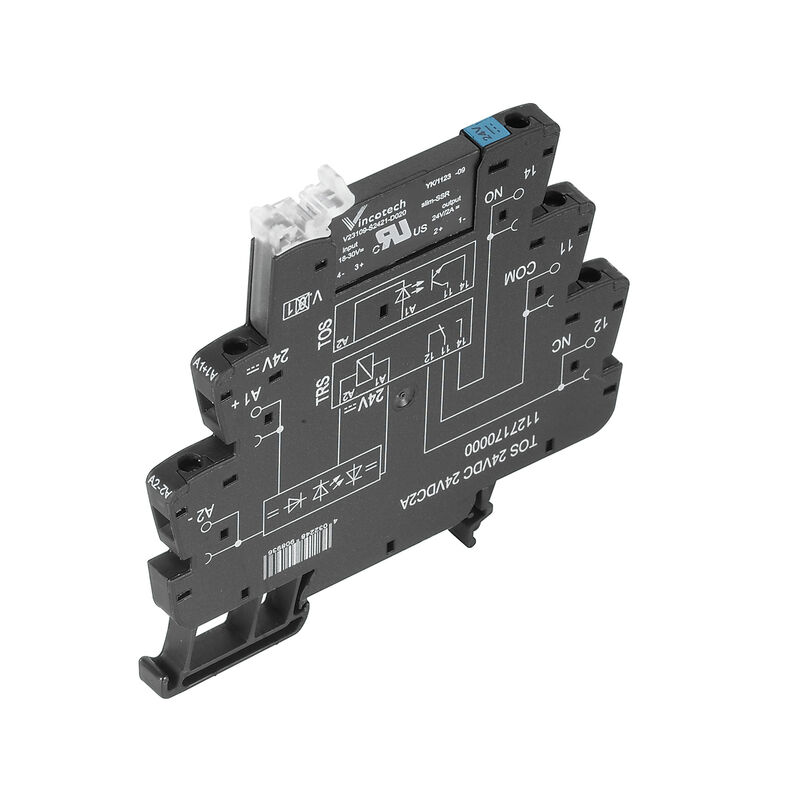

| Type | TOS 24VDC ACT |
| GTIN (EAN) | 4050118192070 |
| Qty. | 10 items |
| Depth | 87.8 mm |
| Depth (inches) | 3.457 inch |
| Height | 89.6 mm |
| Height (inches) | 3.528 inch |
| Width | 6.4 mm |
| Width (inches) | 0.252 inch |
| Net weight | 31.4 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
| MTTF | 1,077 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9 |
| Ambient temperature (operational), max. | 60 °C |
| Output current derating (ohmic) |
1.5 A @ 60 °C
2 A @ 55 °C |
| Connection cross-section AWG, min. | AWG 26 |
| Connection cross-section AWG, max. | AWG 14 |
| Type of conductor |
rigid copper conductor
flexible copper conductor |
| Tightening torque, max. | 0.4 Nm |
| Pollution severity level | 2 |
| Rated control voltage | 24 V DC ±20 % |
| Nominal control current | 11.5 mA DC (±10 %) |
| Power rating | 280 mW |
| Status indicator | Green LED |
| Protective circuit |
Free-wheeling diode
Reverse polarity protection |
| Input frequency | 300 Hz |
| Coil voltage of the replacement relay deviating from the rated control voltage | No |
| Coil voltage of the replacement relay | 24 V DC |
| Rated switching voltage | 3...33 V DC |
| Continuous current | 2 A |
| Rated switching current | 2 A |
| Inrush current | 15 A / 10 ms |
| Switch-on delay | ≤0,1 ms |
| Switch-off delay | <1 ms |
| Voltage drop at max. load | ≤ 120 mV |
| Leakage current | <10 µA |
| Min. switching current | 5 mA |
| Short-circuit-proof | No |
| Protective circuit, load side | Free-wheeling diode |
| Contact type | 1 NO contact (MOS-FET) |
| max. switching frequency (DC control voltage) | 300 Hz |
| Version | Actuator version |
| Rail | TS 35 |
| Test button available | No |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 2.5 kVeff |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (DNV) | TAA00001E5 |
| Certificate no. (cULus) | E141197 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, max. | 0.4 Nm |
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 14 |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
| Blade size | size PH0 |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35334) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46763) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1391680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1391680000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1391680000&norm=0) |
| User Documentation | [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ECLASS 14.0 | 27-37-16-04 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
