Properties

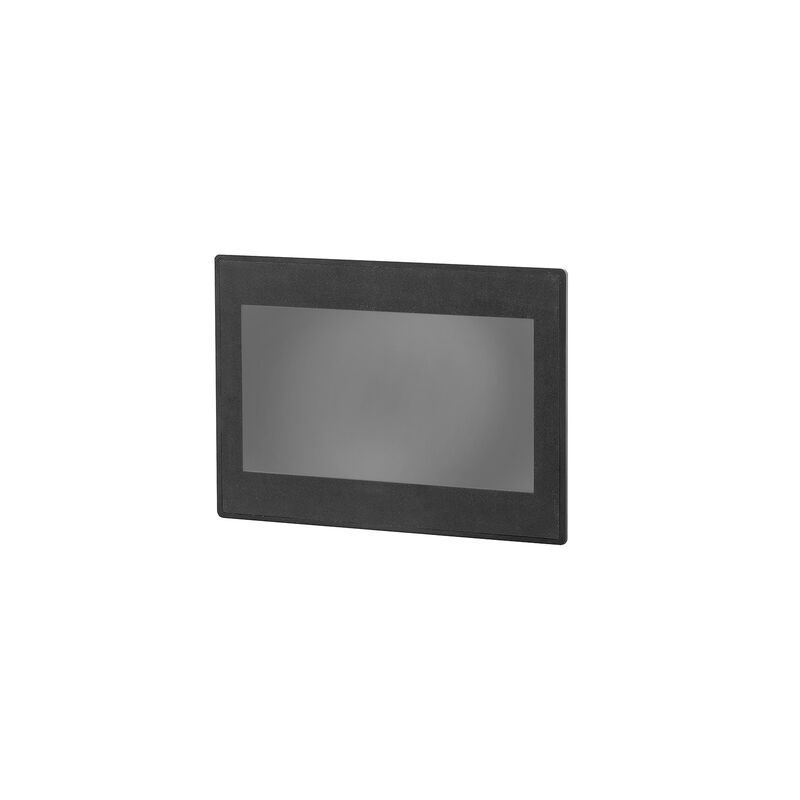

| Version | web-compatible touch panel, Display size 7", resistive, Front protection IP66 |
| Order No. | 2555780000 |
| Type | UV66-ECO-7-RES-W |
| GTIN (EAN) | 4050118566147 |
| Qty. | 1 items |
| Depth | 35.3 mm |
| Depth (inches) | 1.39 inch |
| Height | 138 mm |
| Height (inches) | 5.433 inch |
| Width | 186 mm |
| Width (inches) | 7.323 inch |
| Wall thickness, min. | 2 mm |
| Wall thickness, max. | 6 mm |
| Net weight | 472 g |
| Storage temperature | -20 °C ... +85 °C |
| Operating temperature | 0 °C ... +50 °C |
| Humidity | 10 - 95% relative humidity, non-condensing |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| Luminance | 350 cd/m² |
| Material display | Plastic |
| Material frame | Plastic |
| Number of displayable colours | 16 M |
| Resolution | 800 x 480 |
| Size | 7" |
| Touch-Screen | resistive |
| Current consumption |
|
| MTBF with LCD | 5.29 a |
| MTBF without LCD | 71.85 a |
| Operating system | Linux + Browser (HTML5) |
| Protection degree | IP66 |
| Voltage supply | 24 V DC |
| Voltage supply range |
|
| Interfaces behind |
1x Ethernet 10/100 MBit/s (RJ45)
1x USB-C |
| Memory (Flash) | 4 GB |
| Memory (RAM) | 1 GB |
| Operating system | Linux + Browser (HTML5) |
| Processor | Dual Core ARM® Cortex®-A9, 1 GHz, (GPU 2D / GPU 3D support) |
| Approval/Certificate/Document of Conformity | [Delaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_190612) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_303261) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2555780000) |
| Software |
[Firmware -- Current firmware files_HW01.00](https://mdcop.weidmueller.com/mediadelivery/asset/900_281473)
[Firmware -- Archived firmware files](https://mdcop.weidmueller.com/mediadelivery/asset/900_284627) |
| User Documentation | [QGUI UV66 HMI (ECO)](https://mdcop.weidmueller.com/mediadelivery/asset/900_177982) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
| ETIM 8.0 | EC001412 |
| ETIM 9.0 | EC001412 |
| ECLASS 9.0 | 27-33-02-01 |
| ECLASS 9.1 | 27-33-02-01 |
| ECLASS 10.0 | 27-33-02-01 |
| ECLASS 11.0 | 27-33-02-01 |
| ECLASS 12.0 | 27-33-02-01 |
| ECLASS 13.0 | 27-33-02-01 |
| ECLASS 14.0 | 27-33-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E512053 |
