Properties
| Order No. | 3123500000 |

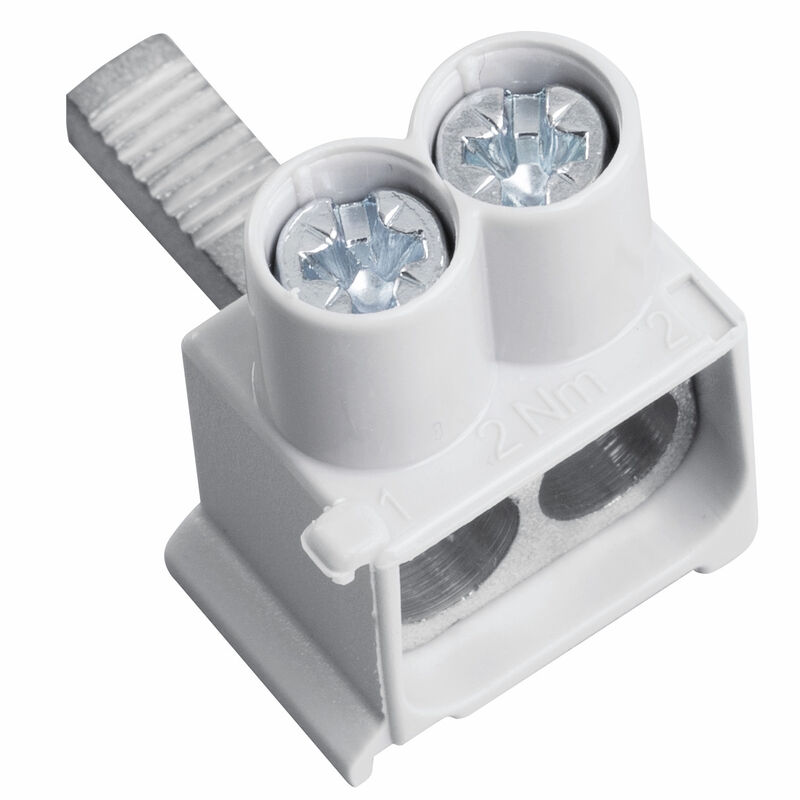

| Type | VPU AC EXTENDER |
| GTIN (EAN) | 4099987270175 |
| Qty. | 8 items |
| Net weight | 14 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Pollution severity | 2 |
| Surge voltage category | III |
| Rated voltage (AC) | 1,000 V |
| Type of connection | Screw connection |
| Tightening torque, min. | 2 Nm |
| Tightening torque, max. | 4.5 Nm |
| Wire cross-section, solid, min. | 2.5 mm² |
| Wire cross-section, solid, max. | 25 mm² |
| Wire connection cross section, finely stranded, min. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Rated current | 100 A |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_325818) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ETIM 10.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| ECLASS 15.0 | 27-17-90-90 |
