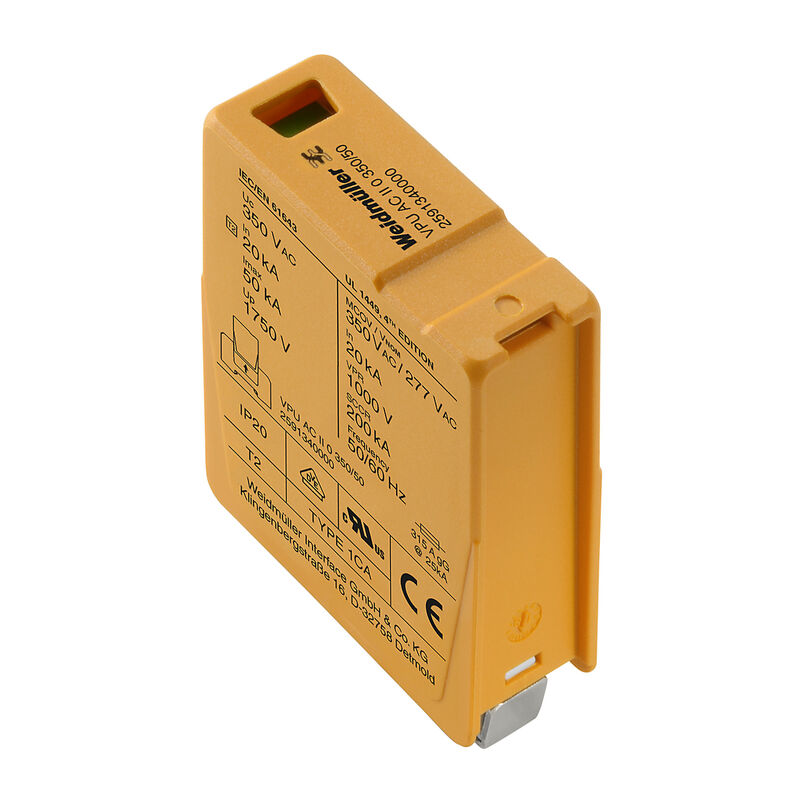

VPU AC II 0 350/50

Spare arrester, Surge protection, Single-phase, TN

Item No. 2591340000
Download data sheet Product Downloads
Accessories 3 Related products 9
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Rated data IEC / EN Connection data Electrical data General data Guarantee Product images Classifications Approvals

General ordering data

Version
Spare arrester, Surge protection, Single-phase, TN
Order No.
2591340000
Type
VPU AC II 0 350/50
GTIN (EAN)
4050118599596
Qty.
1  items

Dimensions and weights

Depth
64  mm
Depth (inches)
2.52  inch
Height
45  mm
Height (inches)
1.772  inch
Width
18  mm
Width (inches)
0.709  inch
Net weight
64  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85  °C
Rated Voltage UN
277  V
VPR (N-PE)
1,000  V
MCOV (L/N-PE)
350  V
SCCR
200  kA
In
20  kA
Category
SPD TYPE 1CA
Ambient temperature (operational), min.
-40  °C
Certificate No. (cURus)
E3542610000
VPR (L-PE)
1,000  V
Voltage type
AC

General data

Colour
orange
Design
Installation housing; 1TE
Operating altitude
≤ 2000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Rail
TS 35
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection

Rated data IEC / EN

Combined pulse UOC
6  kV
Discharge current (type III)
3  kA
Discharge current Imax (8/20µs) wire-PE
50 kA
Energy coordination (≤10 m)
Type II
Type III
Follow-on current extinguishing capability Ifi
Follow current need not be taken into account
Frequency range, max.
60  Hz
Frequency range, min.
50  Hz
Integrated back-up fuse
No
Leakage current at Un
0.3  mA
Low voltage network
Single-phase
TN
Max. continuous voltage, Uc (AC)
350 V
Number of poles
1
Rated voltage (AC)
230  V
Requirements category acc. to IEC 61643-11
Type II
Type III
Requirements class, acc. to EN 61643-11
T2
T3
Response time
≤ 25 ns
Standards
IEC61643-11, EN61643-11
UL 1449
Voltage type
AC

Connection data

Type of connection
Plug-in connection

Electrical data

Voltage type
AC

General data

Number of poles
1
Protection degree
IP20 in installed state
Colour
orange

Guarantee

Time interval
5 years

Product images

Classifications

ETIM 7.0
EC000941
ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 12.0
27-17-12-02
ECLASS 13.0
27-17-12-02
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E3542610000
