Properties
| Version | Surge voltage arrester, Low voltage, Surge protection I / II |
| Order No. | 2530610000 |

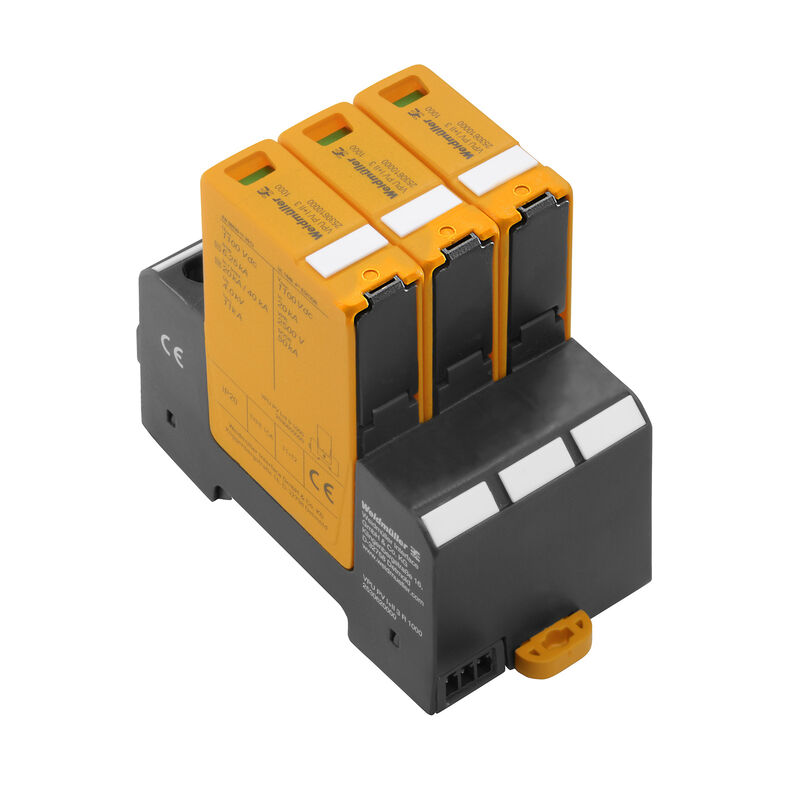

| Type | VPU PV I+II 3 1000 |
| GTIN (EAN) | 4050118540826 |
| Qty. | 1 items |
| Depth | 86 mm |
| Depth (inches) | 3.386 inch |
| Height | 96 mm |
| Height (inches) | 3.78 inch |
| Width | 54 mm |
| Width (inches) | 2.126 inch |
| Mounting dimension - height | 85 mm |
| Net weight | 470 g |
| Storage temperature | 85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| REACH SVHC | / |
| Ambient temperature (operational), max. | 85 °C |
| Rated Voltage UN | 1,100 V |
| SCCR | 50 kA |
| In | 20 kA |
| Category | SPD TYPE 1CA |
| Ambient temperature (operational), min. | -40 °C |
| Certificate No. (cURus) | E354261 |
| VPR ( DC+/DC-) | 2,500 V |
| Voltage type | DC |
| Colour |
black
orange |
| Design |
Installation housing; 3TE
Insta IP 20 |
| Operating altitude | ≤ 4000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Surge protection I / II |
| Pollution severity | 2 |
| Surge voltage category | III |
| Discharge current In (8/20 µs) | 20 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Lightning test current Iimp (10/350 µs) | 6.25 kA |
| Operating height in the grounded PV system | ≤ 2000 m |
| Operating height in ungrounded PV system | <4,000 m, see operating instructions |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 3.8 kV |
| PV system voltage, max. Ucpv | 1,100 V |
| Short-circuit curent ISCPV | 11,000 A |
| Standards |
EN 61643-31
EN 50539-11 UL 1449 |
| Total discharge current Itotal ( 8/20µs) | 50 kA |
| Total discharge current Itotal (10/350µs) | 12.5 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Leakage current at Un | 30 µA |
| Lightning test current Iimp (10/350 µs) | 6.25 kA |
| Number of poles | 3 |
| Rated voltage (DC) | 1000 V |
| Response time | ≤ 25 ns |
| Signalling contact | No |
| SPD type |
T1
T2 |
| Standards |
EN 61643-31
EN 50539-11 UL 1449 |
| Voltage type | DC |
| Stripping length | 18 mm |
| Type of connection | Screw connection |
| Stripping length, rated connection | 18 mm |
| Tightening torque, min. | 2 Nm |
| Tightening torque, max. | 4.5 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 1.5 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1.5 mm² |
| Wire cross-section, solid, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [CE_VPU_PV](https://mdcop.weidmueller.com/mediadelivery/asset/900_41858) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_49061) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2530610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2530610000) |
| Tender specification |
[Ausschreibungstext DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_179607)
[Tenderspecification EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_179608) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_101427) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354261 |
