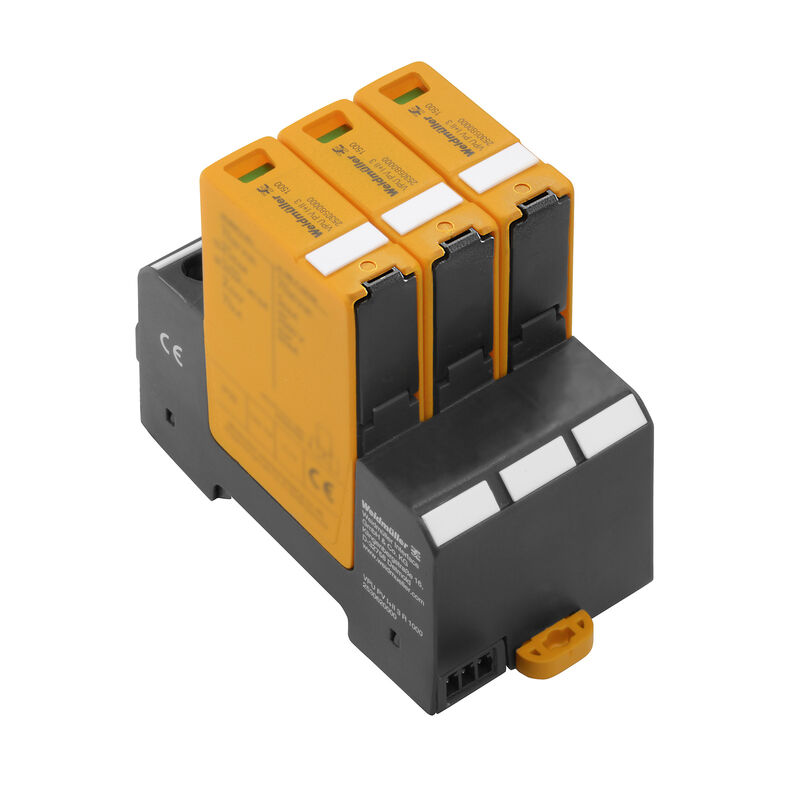

VPU PV I+II 3 1500 — Product image

VPU PV I+II 3 1500 — Electric symbol

Circuit diagram

Download data sheet

VPU PV I+II 3 1500

Surge voltage arrester, Low voltage, Surge protection I / II

Item No. 2530580000

Properties

General ordering data

Version	Surge voltage arrester, Low voltage, Surge protection I / II
Order No.	2530580000
Type	VPU PV I+II 3 1500
GTIN (EAN)	4050118540499
Qty.	1 items

Dimensions and weights

Depth	86 mm
Depth (inches)	3.386 inch
Height	96 mm
Height (inches)	3.78 inch
Width	54 mm
Width (inches)	2.126 inch
Mounting dimension - height	85 mm
Net weight	470 g

Storage temperature	85 °C
Operating temperature	-40 °C...85 °C
Humidity	5 - 95% rel. humidity

Environmental Product Compliance

REACH SVHC

/

Ambient temperature (operational), max.	85 °C
Rated Voltage U_N	1,500 V
SCCR	65 kA
I_n	20 kA
Category	SPD TYPE 1CA
Ambient temperature (operational), min.	-40 °C
Certificate No. (cURus)	E354261
VPR ( DC+/DC-)	4,000 V
Voltage type	DC

Colour	black orange
Design	Installation housing; 3TE Insta IP 20
Operating altitude	<4,000 m, see operating instructions
Optical function display	green = OK; red = arrester is defective - replace
Protection degree	IP20
Rail	TS 35
UL 94 flammability rating	V-0
Version	Surge protection I / II

Insulation coordination acc. to EN 50178

Pollution severity	2
Surge voltage category	III

Photovoltaic technical data

Discharge current I_n (8/20 µs)	20 kA
Discharge current, max. (8/20 µs)	30 kA
Lightning test current I_imp (10/350 µs)	5 kA
Operating height in the grounded PV system	≤ 2000 m
Operating height in ungrounded PV system	<4,000 m, see operating instructions
Protection level U_p (+/- , -/PE , +/PE)	≤ 5,0 kV
PV system voltage, max. U_cpv	1,500 V
Short-circuit curent I_SCPV	11,000 A
Standards	EN 61643-31 EN 50539-11 UL 1449
Total discharge current I_total ( 8/20µs)	40 kA
Total discharge current I_total (10/350µs)	10 kA

Rated data IEC / EN

Discharge current, max. (8/20 µs)	30 kA
Leakage current at U_n	30 µA
Lightning test current I_imp (10/350 µs)	5 kA
Number of poles	3
Rated voltage (DC)	1500 V
Response time	≤ 25 ns
Signalling contact	No
SPD type	T1 T2
Standards	EN 61643-31 EN 50539-11 UL 1449
Voltage type	DC

Connection data

Stripping length	18 mm
Type of connection	Screw connection
Stripping length, rated connection	18 mm
Tightening torque, min.	2 Nm
Tightening torque, max.	4.5 Nm
Clamping range, rated connection	16 mm²
Clamping range, min.	1.5 mm²
Clamping range, max.	35 mm²
Wire cross-section, solid, min.	1.5 mm²
Wire cross-section, solid, max.	16 mm²
Wire connection cross section, finely stranded, min.	1.5 mm²
Wire connection cross section, finely stranded, max.	25 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection cross-section, stranded, max.	35 mm²

Time interval

5 years

Approval/Certificate/Document of Conformity	[CE_VPU_PV](https://mdcop.weidmueller.com/mediadelivery/asset/900_41858)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_49062)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2530580000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2530580000)
Tender specification	[Ausschreibungstext DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_179607) [Tenderspecification EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_179608)
User Documentation	[Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_101427)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000941
ETIM 7.0	EC000941
ETIM 8.0	EC000941
ETIM 9.0	EC000941
ECLASS 9.0	27-13-08-05
ECLASS 9.1	27-13-08-05
ECLASS 10.0	27-13-08-05
ECLASS 11.0	27-13-08-05
ECLASS 12.0	27-17-90-90
ECLASS 13.0	27-17-90-90

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E354261
